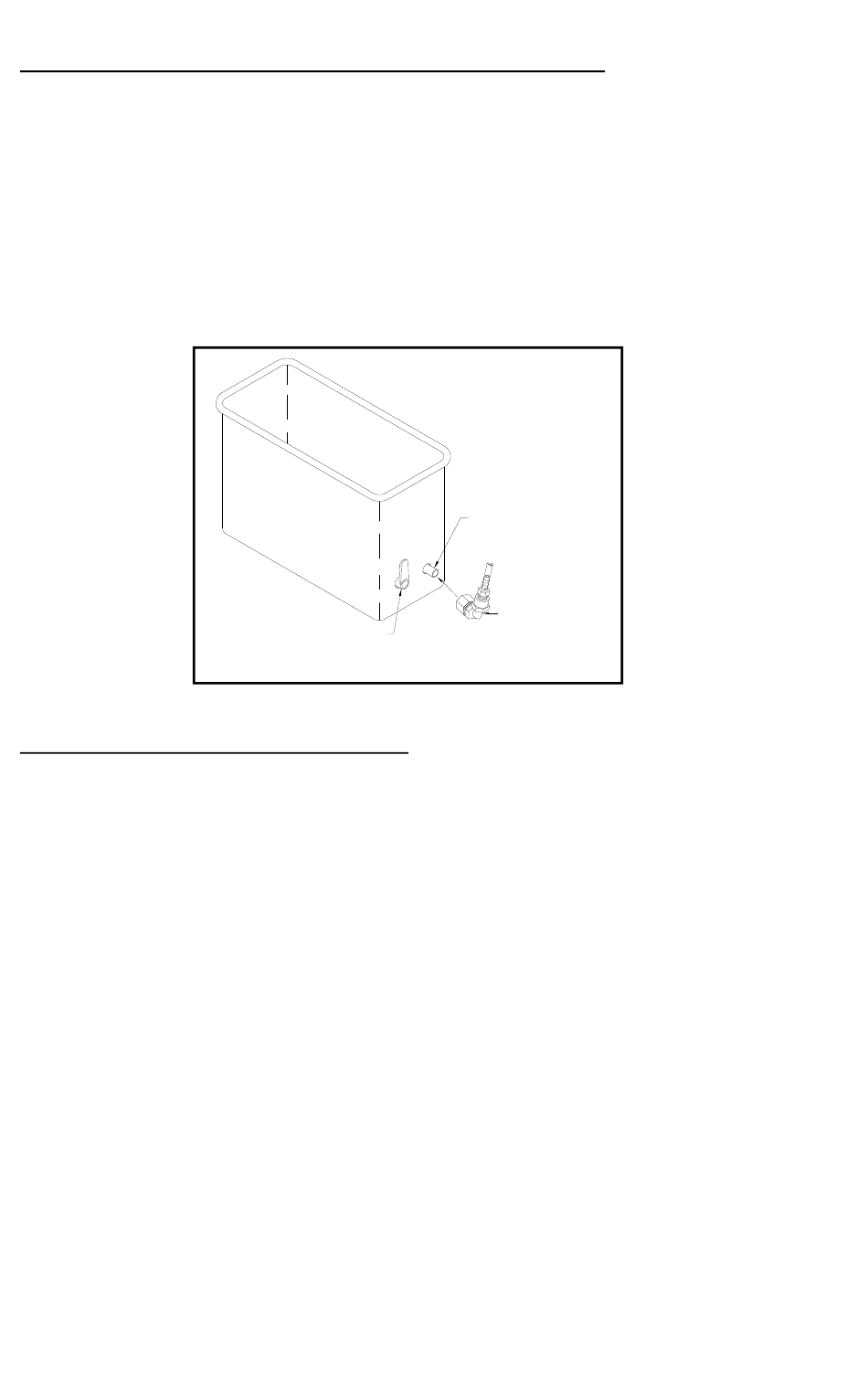

Attaching the Drain Assembly for units with 1/2 inch drain

Pick up drain assembly supplied and loosen nut on elbow.

Position machine so that you are facing the drain tube.

Carefully slide the assembly over the drain tube.

Adjust the position of the drain tube as desired. (Drain right, left or down.)

Hand tighten nut. Do not over-tighten. If further
tightening is needed an adjustable or a 1 inch open-ended wrench/spanner is
recommended.
Recessed Machines
Installing the Tank in Your Countertop
Your recessed ultrasonic cleaner is designed to be a permanent installation into a
countertop in your office or shop. It is recommended that the stainless steel
mounting rim supplied with the cleaner be installed between the rim of the tank
and the countertop to ensure a good, watertight seal at the countertop. A cable or
cables (depending on the model) will connect the tank to the generator.
1. Select your desired location for the tank on your countertop. Close proximity
to a sink is desirable for ease of drain connections.
Make sure there are no drawers below your selected position on the
countertop and that there are doors which allow easy access to the drain
valve on the tank.
If the cable(s) interconnecting the tank and generator cannot be routed behind
the countertop, a separate hole will have to be drilled in the countertop to
accommodate them.
2. Included with your recessed cleaner is a stainless steel mounting rim. Use it
as a template and trace the
required cut out on your countertop with a crayon or china marker.
3. Drill a ½ inch hole anywhere within the section to be cutout.
4. Using a sabre/hand saw, carefully cut the tank shape out of the countertop.
Valve Handle
Vertical position - valve closed
Horizontal position - valve open
Drain Tube
Drain Assembly
