User manual

4.3.- Amplifier

1
2
3
4

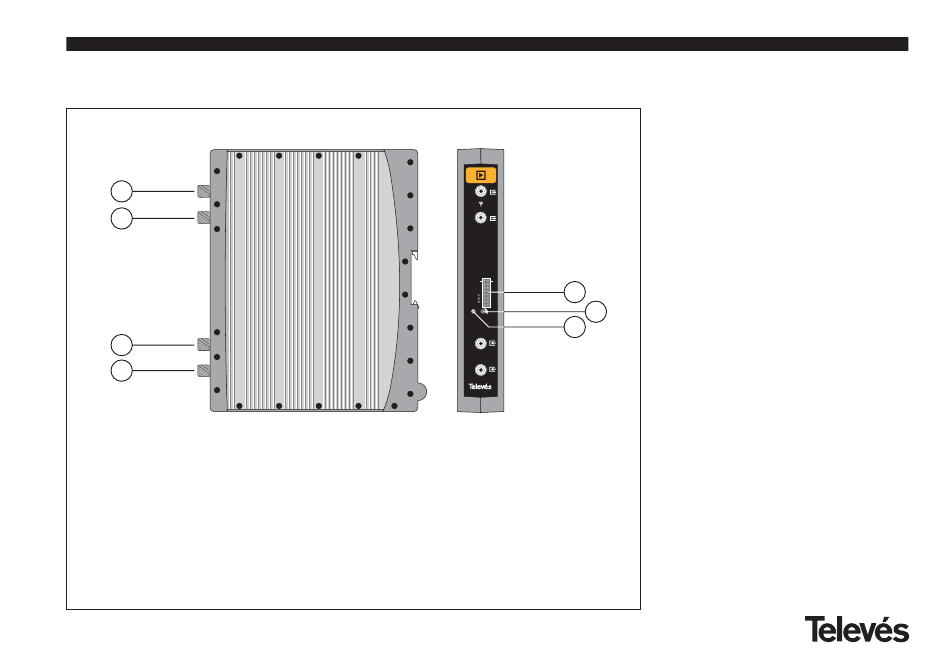

1.- RF output
2.- Test socket
3.- RF input
4.- RF input
5.- Powering input
6.- Attenuator
7.- LED
E
T
-
(
5
6
7
234632
26
SAT-RF
The
amplifier
carries
amplification of the channels generated
in the SAT-RF transmodulators, cove-
ring a frequency range of 47 - 862 MHz.
It disposes of two input signal connec-
tors to mix the channels coming from
two systems. If only one of the inputs is
used, it is advisable to load the unused
input with 75 ohm, ref. 4061.
The amplifier disposes of an output
connector and a Test socket (-30dB)
located at the top of the front panel.
The amplifier is powered with 15V via a
cable, the same type as that used for
powering the other modules of this sys-
tem.
