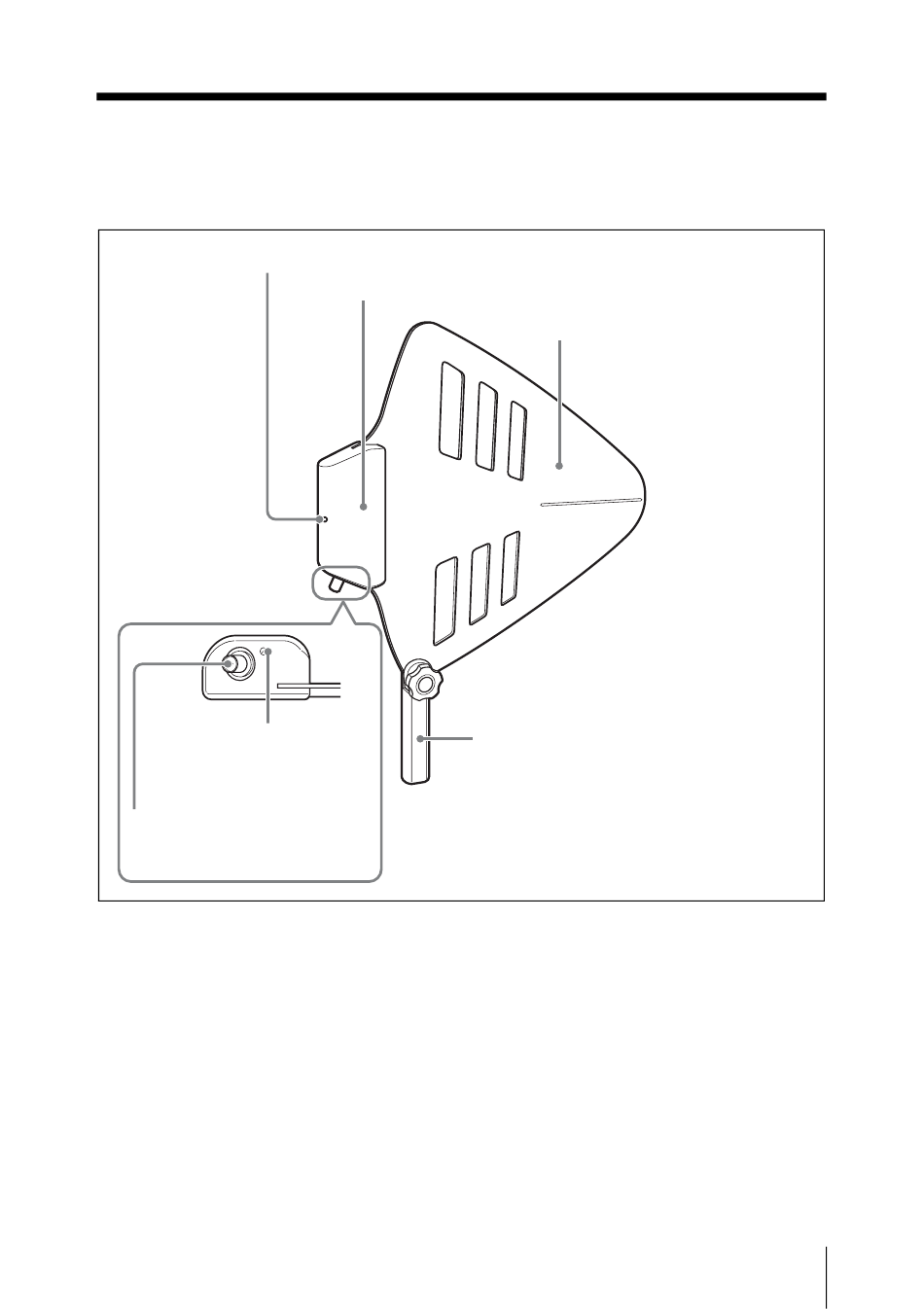

Identification of Parts and Controls

1 Booster indicator
5 Gain
6 RF output/DC power input
connector
a Booster indicator
Changes the color to show the operation
status of the antenna booster.
Red: 18 dB gain
Green: 10 dB gain
Blue: 0 dB gain
b Booster
Amplifies the signal received by the
antenna. By using the booster, output signal
loss due to a long coaxial cable can be
compensated.
2 Booster
selector
3 Antenna
4 Microphone stand attachment pole/
grip
The power to the booster is supplied from
the device connected to the RF output/DC
power input connector.
c Antenna
Wide-band directional antenna using log-
periodic dipole array system.
Identification of Parts and Controls 19
