OPTIONS AND ACCESSORIES

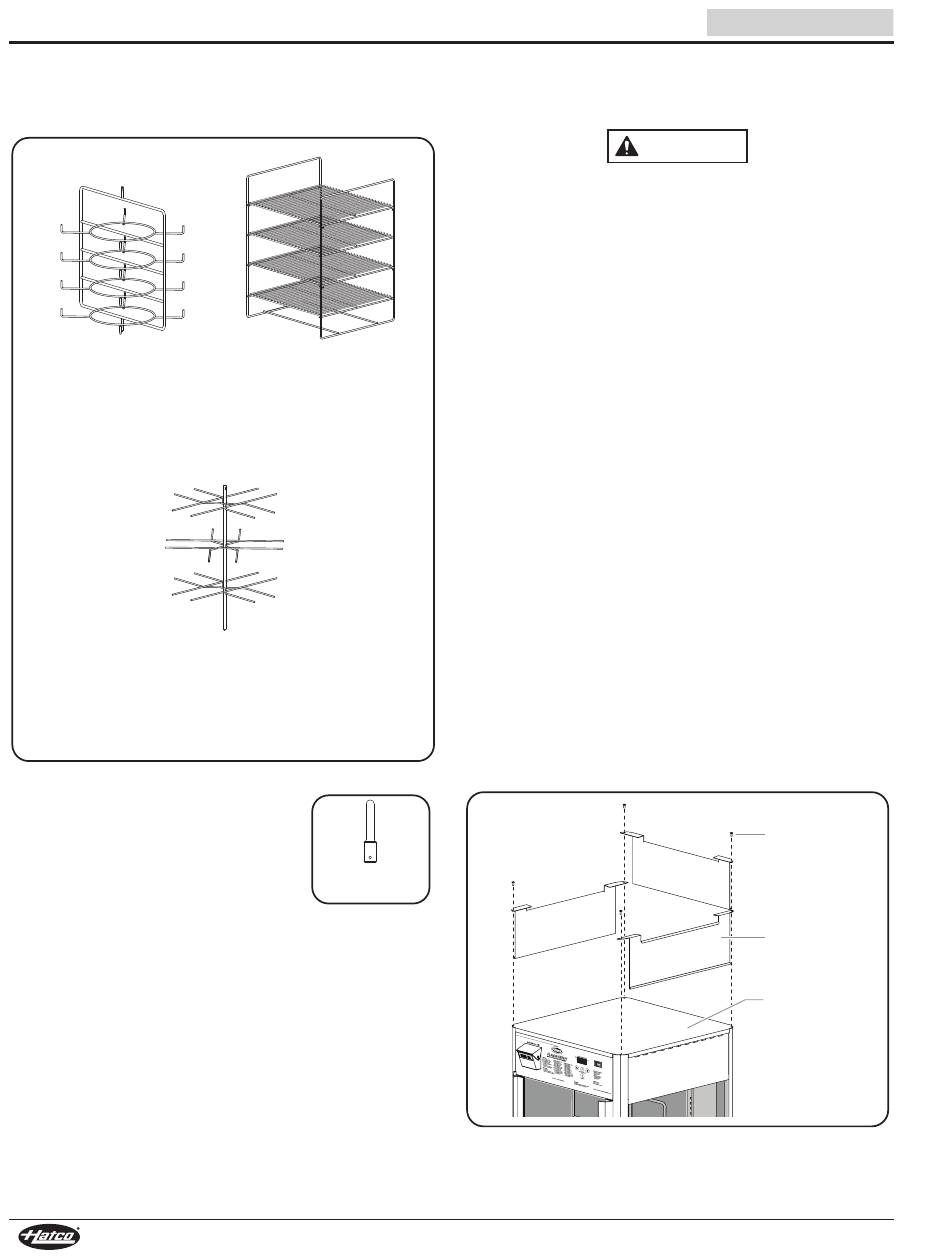

Display Racks
Several display racks are available to "customize" Flav-R-
Fresh to specific foodservice operations. all are nickel-plated
®
except the pretzel tree, which is stainless steel.
4-Shelf Circle Rack
with Retainers*
Model FDWD4TCRR
3-1/4" (83 mm) opening
between racks.
Max. 15" (381 mm)
diameter pans.
3-Tier Pretzel Tree*
Model FDW3TPT
5-7/8" (149 mm) opening
between racks.
*Racks designed for use with motorized display.
Display Racks
Motorless Rack Coupling
The motorless rack coupling allows the
stationary installation of a 4-tier circle rack or
3-tier pretzel tree in cabinets that do not
have a rack motor (FDWD-1X and -2X).
4-Shelf
Multi-Purpose Rack
Model FDW4SMP
3-3/4" (95 mm) opening
between shelves.
1st and 3rd shelves
are removable.
Motorless
Rack Coupling
Sign holders
(FDWD-1, FDWD-1x, FDWD-2, and FDWD-2x)
Use the following procedures to install a Display Sign Holder.
ELECTRIC ShOCK hAzARD: Turn the power switch OFF,
unplug the power cord, and allow the unit to cool before
performing any maintenance or cleaning.
One-Sided and Control-Side Sign holder Installation
One-sided and control-side sign holders are available as
options.
One-Sided Sign Holders can be installed on any side of the unit
except the control side. Up to three One-Sided Sign Holders
can be installed on a unit. There are two height sizes available
for one-sided sign holders, 3" (76 mm) and 6-3/8" (162 mm).
Control-side sign holders are installed only on the control side.
The sign must be slid out of the sign holder to access the
controls and water fill cup. Control-side sign holders are 6-3/8"
(162 mm) in height.
Sign Holders are available in all Designer colors to match the
unit.
NOTE: Signage not supplied by Hatco. Sign dimensions are:
3" (76 mm) Holder = 19-1/16" W x 3-1/4" H (484 x 83 mm)
6-3/8" (162 mm) Holder = 19-5/16" W x 6-1/4" H (491 x 159 mm)
1. Remove the appropriate hood mounting screws from the
cabinet hood. The screws that need to be removed are
determined by the location and number of sign holders
being installed.
2. align the mounting holes on the sign holder(s) with the
mounting holes in the cabinet hood.
3. Insert the hood mounting screws through the holes in the
sign holder(s) and into the cabinet hood. Tighten securely.
NOTE: If more than one display sign holder is being installed,
some of the hood mounting screws may need to thread
through and secure two display sign holders.
4. Place the polycarbonate window(s) into sign holder.
Display Sign Holder Installation
16
English
WARNING
Hood
Mounting
Screw
Display
Sign Holder
Cabinet
Hood
Form No. FDWDm-0915
