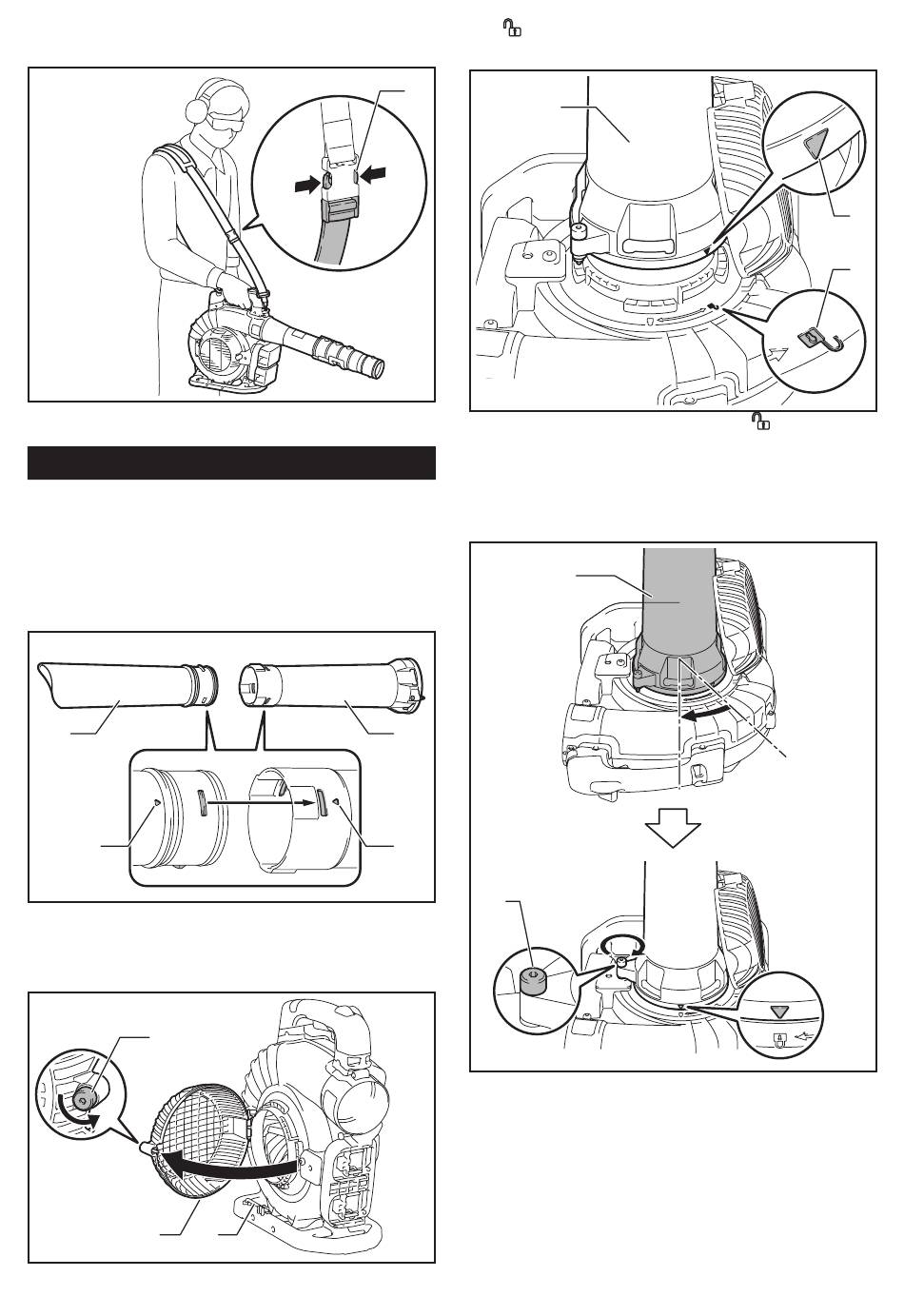

The shoulder strap features a means of quick release.
Simply squeeze the sides of the buckle to release the
machine from the shoulder strap.
► 1. Buckle
Assembly for vacuuming
Installing or removing suction pipe and nozzle
Optional accessory
1.
Align the triangle mark on the suction nozzle with that
on the suction pipe, and then insert the suction nozzle into the
suction pipe until the latch on the nozzle snaps into place.
1
3
► 1. Suction nozzle 2. Suction pipe 3. Triangle mark
2. Loosen the bolt on the fan cover using the hex
wrench, and open the fan cover.
1
2
► 1. Bolt 2. Fan cover 3. Hex wrench
3
3. Align the triangle mark on the suction pipe
with mark on the main unit, and then attach the
suction pipe to the main unit.
1
1
► 1. Suction pipe 2. Triangle mark 3.
4. Turn the suction pipe clockwise so that the bolt
on the pipe is aligned with the hole on the main unit,
and then fasten the bolt firmly using the hex wrench to
secure the pipe to the main unit.
1
2
3
2
► 1. Suction pipe 2. Bolt
To remove the suction pipe and nozzle, perform the
installation procedure in reverse.
7 ENGLISH
