3. INSTALLATION (EXPERT PERSONNEL)

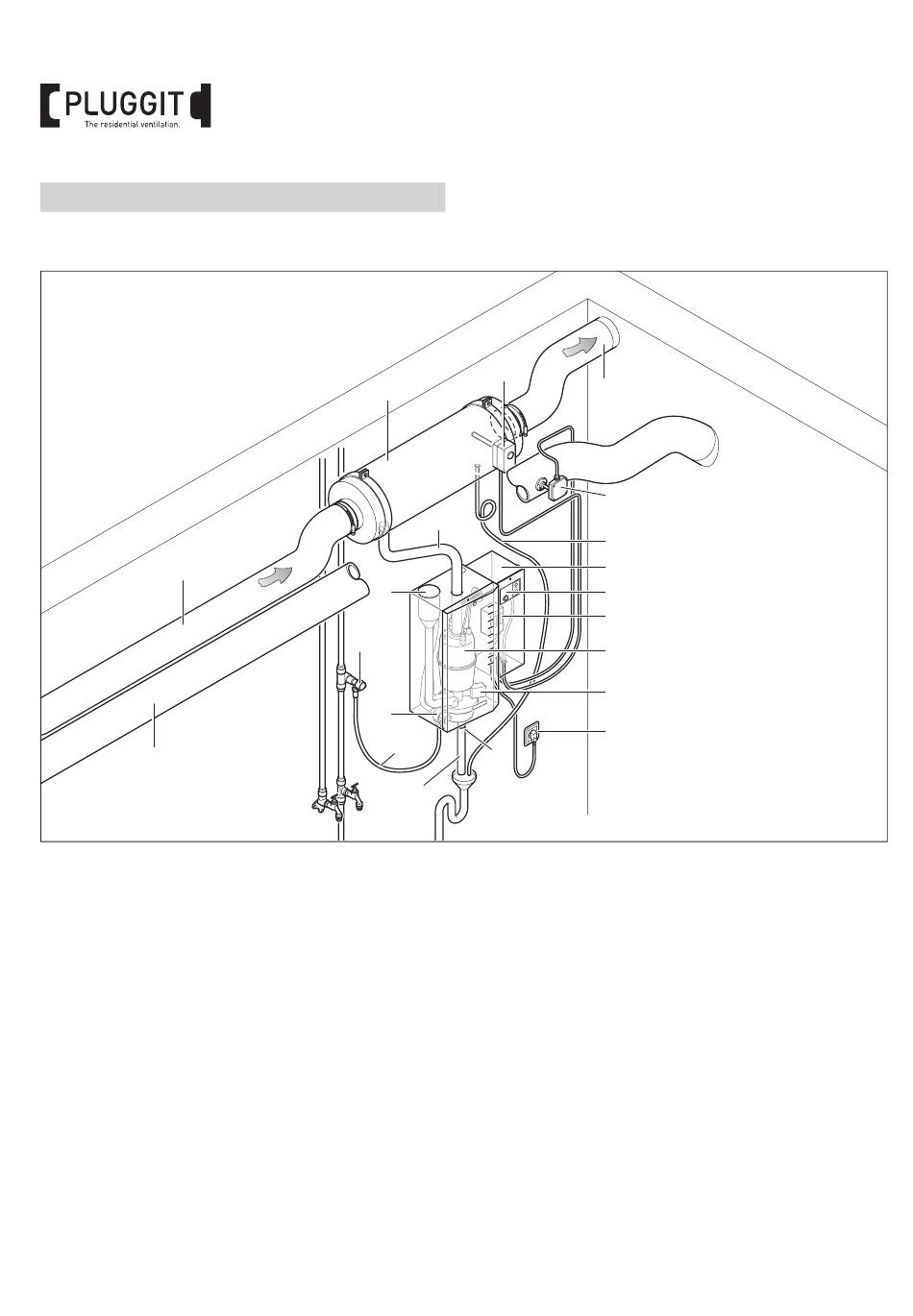

3.1. OVERVIEW

17
18
Humidifier basic set BF5
1 Humidifier AeroFresh Plus
2 Control electronics
3 Control unit
4 Steam cylinder
5 Filling system
6 Steam hose
7 Water inlet valve
8 Water outlet valve
9 Drain
10 Condensate line humidifying line
11 Water supply pipe
12 Water drain pipe
13 Electrical connection
6
BIA AeroFresh Plus
15
14
6
5
19
7
11
9
12
Humidifying line BF5-BS
14 Humidifying line
Security set BF5-FS (sensor set)
15 Hygrostat (max. humidity limiter)
16 Hygrothermal transducer (humidity sensor actual value
indication)
Components provided by the customer
17 Supply air line
18 Exhaust air line
19 Stopcock or angle valve (1/2")
17
16
10
1
3
2
4
8
13
