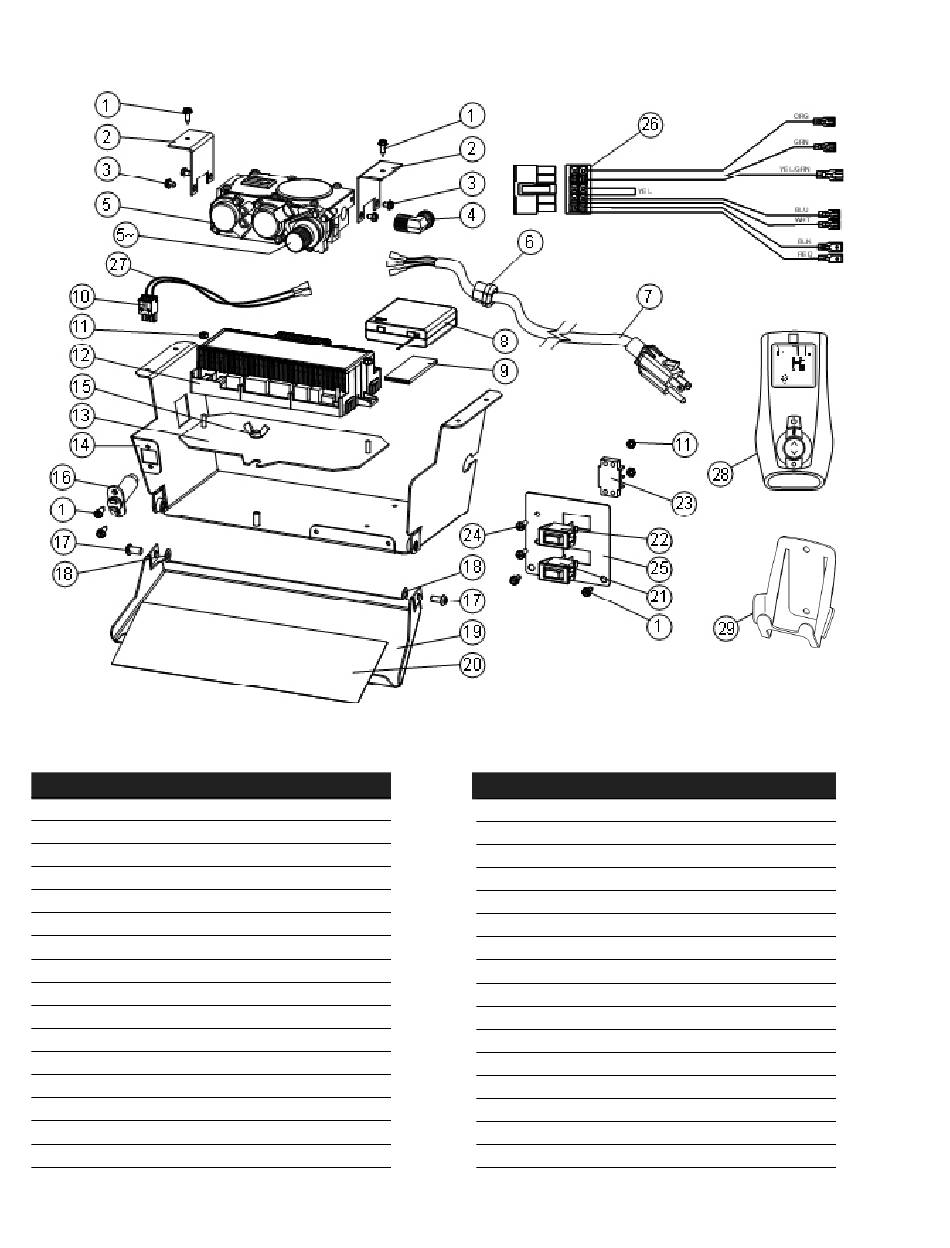

Figure 69.
Composants du contrôle IFC et de l'ensemble de valve (GF 400 DV IPI).
No.
Pièce no
Description
1.
117917
Screw, #8 x 1/2" SL Blk Oxide
2.
224904
Valve Bracket
3.
118214
Screw, #8x 1/4" Taptite
4.
222292
Elbow, 90° Brass 3/8 NTP x 3/8" Dia.
5.
224972
Valve w/ NG Regulator, Manual, 50%TD
5x.
224795
Regulator, Manual / LP , 50%TD
224914
Regulator w/ Stepper Motor / NG, 50% TD
224915
Regulator w/ Stepper Motor / LP, 50% TD
6.
117951
Wire Strain Relief, Heyco 7P-2 Lg
7.
157492
Power Cord, 18 AWG Grounded - 10 ft.
8.
157265
Replacement Back-up Battery Box (4 AA)
9.
118257
Hook & Loop Tape, 1" wide - Self adhesive
10.
224794
Connector, 2 Pin / IPI Burner
11.
118055
Kepnut, M4 Ext. Tooth Lockwasher
12.
158130
Proflame 2 IFC Control Board, Complete
13.
224911
IFC Mounting Plate
34
No.
Pièce
no.
Description
14.
22477092
Control Bracket
15.
117975
Wing Nut, M6 Zinc
16.
224145
Magnetic Catch - Push to open
17,
9962
Bolt, Hex Hd Serr Flng M6 x 10mm
18.
117588
Hinge Washer, M6 - 12mm OD x 6mm ID
19.
22476992
Control Door
20.
224952
Instruction Label, Control Door - GF IPI Series
21.
220703
Rocker Switch, SPDT - Plain
22.
120517
Rocker Switch, SPST - Plain
23.
129154
Terminal Block, 2 Pole - 77 Series
24.
117921
Screw, Pan Hd Ph M4 x 12mm Blk Oxide
25.
224781
Control Faceplate, Silkscreened - GF IPI Series
26.
157493
Replacement IPI Wire Harness - GF IPI Series
27.
157494
Replacement Burner Control Wire Harness
28.
157495
Replacement Multifunction Remote / Black
29.
223951BKP Replacement Remote Wall Bracket / Black PC
