Klein Tools NCVT-2 Mode D'emploi

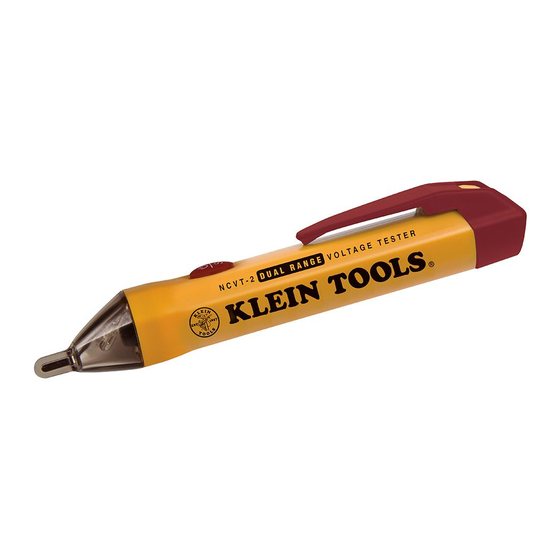

NON-CONTACT VOLTAGE TESTER
DUAL RANGE
(NCVT-2) OWNER'S MANUAL
MANUAL DEL USUARIO DEL PROBADOR DE TENSIÓN
SIN CONTACTOS DE INTERVALO DUAL (NCVT-2)
DÉTECTEUR DE TENSION SANS CONTACT À
DOUBLE PLAGE (NCVT-2) - MODE D'EMPLOI
Locking tab / Lengüeta de fijación /
Languette de verrouillage
139509T
Rev. 10/09
Cap / Tapa / Capuchon
Power button /
Botón de alimentación /
Bouton de mise sous
tension
KLEIN TOOLS, INC.
Chicago, IL USA
© 2010
www.kleintools.com
Probe /
Conductor
de prueba /
Sonde

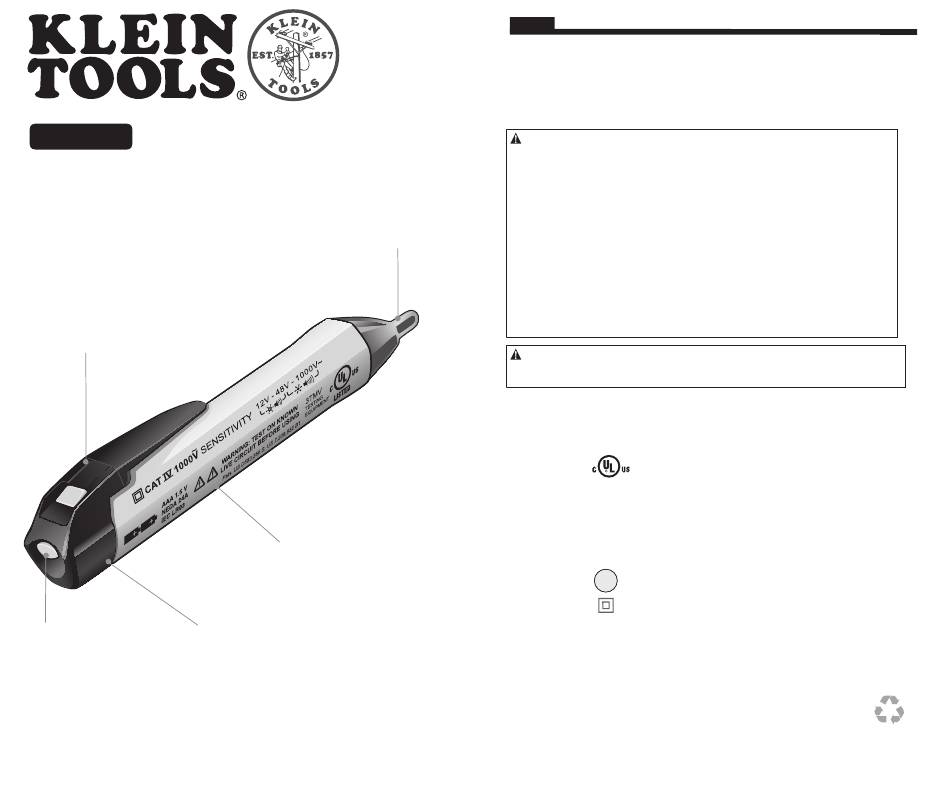

Fig. 1
Body / Cuerpo / Corps
NCVT-2
133911T Online Ver. 1
ENGLISH
WARRANTY
Klein electronic test and measurement devices (and accessories), manufactured and sold for commercial or industrial
uses, are warranted to be free from defects in materials and workmanship for two years from the date of purchase
(unless otherwise noted on the product packaging). THERE ARE NO IMPLIED WARRANTIES OF MERCHANTIBILITY OR
FITNESS. At its option, Klein will repair or replace, or refund the purchase price of, any product which fails to conform to
this warranty under normal use and service. In no event shall Klein be liable for incidental or consequential damage.
This warranty does not apply to batteries.
WARNINGS:
• It is important that users of this tester read, understand, and follow all warnings, cautions, safety
information, and instructions in this manual before operating or servicing this tester. Failure to follow
instructions could result in death or serious injury.
• Risk of electric shock and burn. Contact with live circuits could result in death or serious injury.
• Use caution with voltages above 30V AC as a shock hazard may exist.
• A blinking or steady red glow and an audible beep indicate voltage present. If no indication,
voltage could still be present.
• In bright light conditions, the LED visual indicators will be less visible.
• Do not use if green LED is not illuminated.
• Do not use if tester appears damaged or if the tester is not operating properly. If in doubt, replace the tester.
• Do not apply more than the rated voltage as marked on the tester (1000 volts AC).
• Always wear approved eye protection.
• Before each use, verify operation by testing a known working circuit that is within the rating of this unit.
• Do not rely on this tester with shielded wire. Operation may be affected
by differences in socket design and insulation thickness and type.
• Comply with local and national safety requirements.
• If this product is used in a manner not specified by the manufacturer, protection
provided by the product may be affected.
CAUTION:
• Do not attempt to repair this tester. It contains no serviceable parts.
• Do not expose the product to extremes in temperature or high humidity.
SPECIFICATIONS:
VOLTAGE RANGE: 12-1000 Volts AC
TESTER TYPE: Non-Contact Voltage
Detector
UL CERTIFICATION
E321008 3TMV
FREQUENCY RANGE:
50-500Hz
STANDARDS:
UL 61010-1 2 edition, CAN/CSA C22.2 No.
nd
61010-1-04, EN 61010-1 2 nd edition, IEC
61010-1:2001 2 edition, ISA-82.02.01
nd
(IEC61010-1 MOD)
CAT
CAT IV RATED
IV
DOUBLE INSULATED
POWER ON INDICATOR AND ILLUMINATOR:
Visual: High Intensity Green LED
POWER OFF & AUTO POWER OFF:
Visual: High Intensity Green LED Blinks
Audible: Double Beeping Sound
LOW BATTERY INDICATORS:
Visual: Green LED Blinks
Audible: Series of Beeping Sounds
VOLTAGE DETECTION INDICATORS:
12 VOLTS TO 48 VOLTS:
Visual: High Intensity Blinking Red LED
Audible: Low Pitched, Pulsing Beeping Sound
48 VOLTS TO 1000 VOLTS
Visual: High Intensity Continuously
Illuminated Red LED
Audible: High Pitched, Continuous
Beeping Sound
OPERATING CONDITIONS:
Temperature: 32° to 104° F (0° to 40° C)
Relative Humidity: <80%
Altitude: Up to 6,562 feet (2,000 meters) maximum
Environment: Indoor Use
STORAGE CONDITIONS:
Temperature: 32° to 104° F (0° to 40° C)
Relative Humidity: <80%
Altitude: Up to 6,562 feet (2,000 meters) maximum
Environment: Indoor
POLLUTION DEGREE: 2
BATTERIES: Two 1.5 volt AAA or IEC LR03 or NEDA 24A
PATENTS: US D583,266 S US 7,208,932 B1
DISPOSAL: DO NOT THROW IN TRASH;
PLEASE RECYCLE.
