Power Supply and Signal Cable Connection
1. Mains Power connection
The exclusive plug should be used between the connection of unit and power. Please ensure that the rated voltage
and frequency are accordance with the power supply. The required input voltage and frequency are: 100-240Vac –
50-60Hz
We suggest that every light has an independent switch so that you can turn on or turn off the light randomly.
Note: the ground wire (yellow/green double-color wire) must be safely connected, the electrical installation must be
in accordance with the related standards
CAUTION: When installing the device, make sure there is no highly inflammable material within a distance of
min.5m!

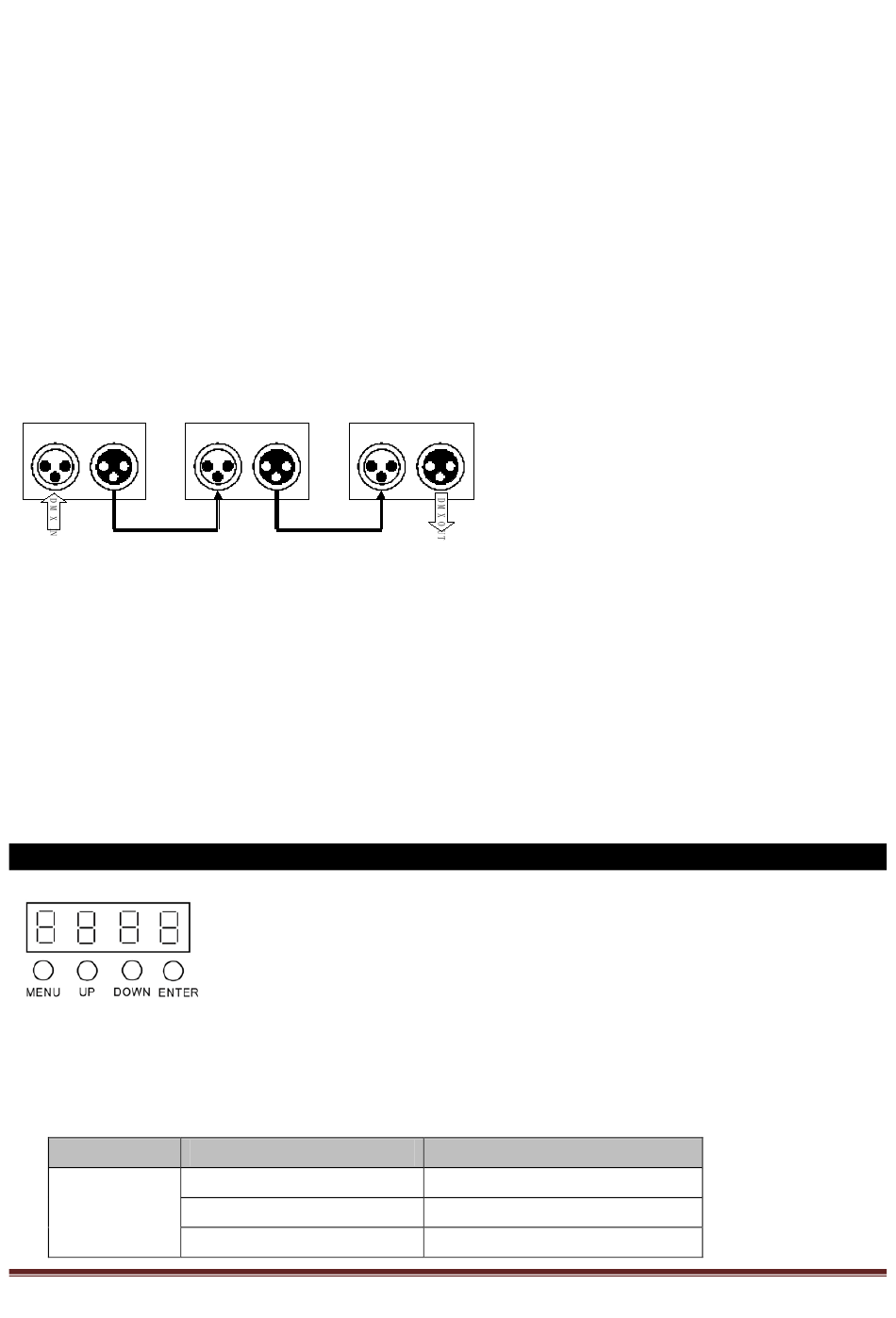

2. Connection of Signal Cable
You can use the 3-pin XLR cable to connect the output socket of the master and the input socket of the slave light.
Connect the DIGITAL OUT socket of the master and the IN socket of the slave light, then, connect the OUT socket to
the IN socket of the next light. Ordinal to connect all the lights as below:
1
2
I N
O U T
The connection between the output of master and input of product, it's available to use the 3 pins XLR cable which
provided by the manufacturer. Signal cable from the DMX output of the controller to the input of the first master light,
and connect to the DMX input of second slave light from the DMX output of the first master light, analogously, till
connected all the slave lights, and insert the last connector to the output of the final light. (Notice: the diameter of
core of every cable should be 0.5mm at least, double core shelter cable should be used).The signal connecting must
use the attached 3 pins XLR cable. Notice, all the internal lead wire of the 3 pins XLR cable should not touch to each
other or connect to the connector.
A DMX signal terminator is recommended on the last unit of the chain. DMX terminator is a XLR connector with a
120Ω resistor between the pin 2 and pin 3 of the XLR connector

CONTROL PANEL

Use Menu button to choose a function : Auto, Sound, Speed, Color, Addr or Infr
Press Enter button to enter in the menu of the selected function
Use Up and Down button to select the parameters then press Enter button to set the selected parameter
Check the following function table :
Function
Auto
© Copyright LOTRONIC 2013
3
I N
O U T
Programming Steps
Au-1
Au-2
Au-3
I N
O U T
Description
Switching 1
Switching 2
Switching 3
PARLED 615
Page 3
