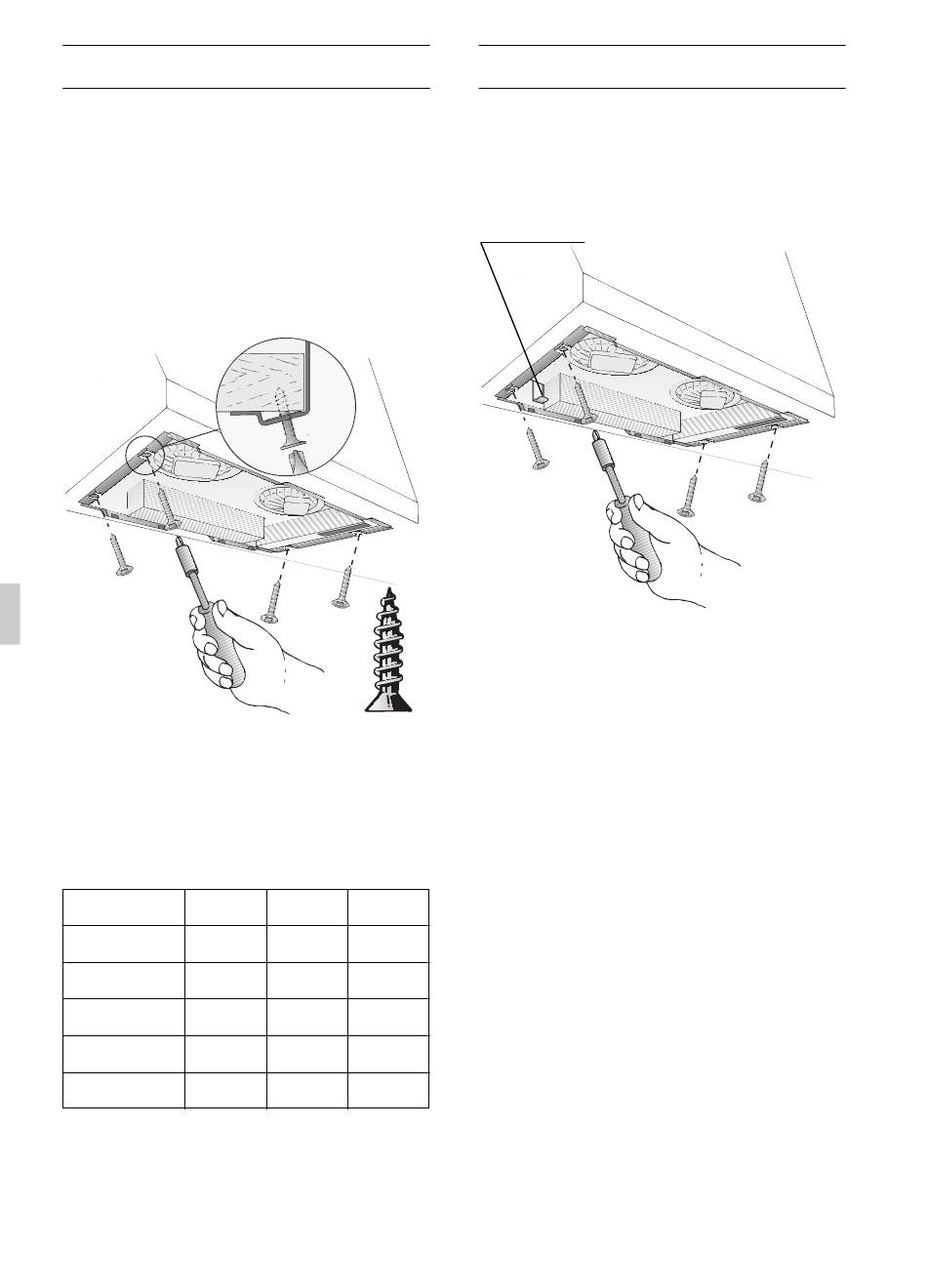

Installation
1. Remove the filter grille (see operating
instructions).
2. Connect the power.
3. Press the extractor hood up into the
installation opening until the installation
aid locks into position at the front and
rear.
4. Screw in the extractor
hood.
5. Insert and secure the filter grille (see
operating instructions).
Weight in kg:
Model
Width
1-motor
53 cm
Rocker switch
1-motor
53 cm
Slide control
1-motor
73 cm
Slide control
2-motor
53 cm
Slide control
2-motor
73 cm
Slide control
Design changes with respect to technical development
shall remain withheld
28
Exhaust
Recircu
air
lated air
5,0
6,3
9,5
10,7
10,3
11,6
8,3
9,5
8,7
9,9
Removal
1. Loosen the screws.
2. Hold the underside of the extractor
hood, Hold the underside of the extrac-
tor hood.
Installation spring
3. Lower the extractor hood and remove.
