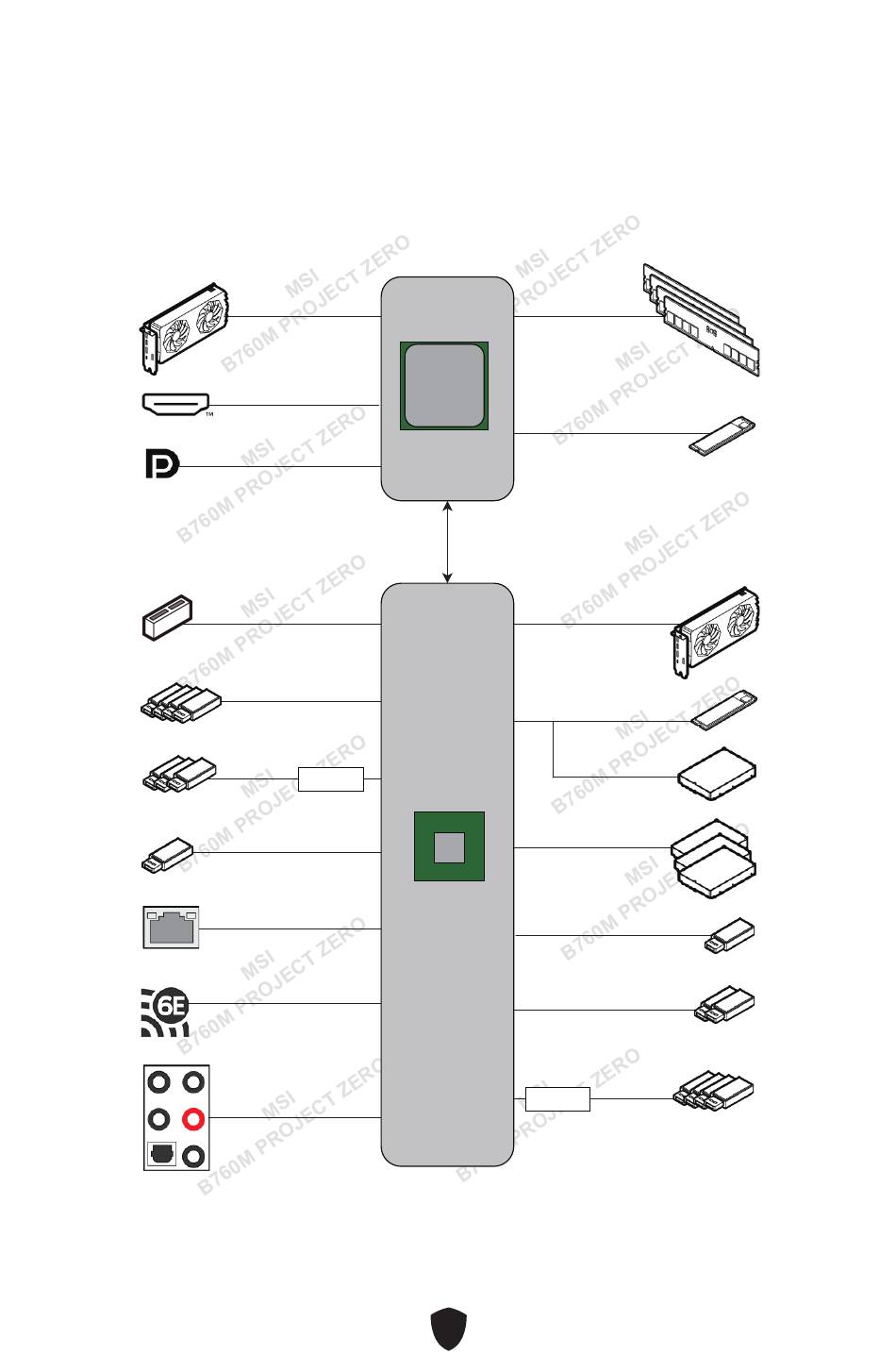

Block Diagram

B760M PROJECT ZERO
HDMI 2.1
(4K@60Hz)
DP 1.4
(4K@60Hz)
PCI_E2
PCIe x1
USB 2.0 480Mbps
(Type-A)
USB3.2 Gen2 10Gbps
(Type-A)
USB3.2 Gen2x2 20Gbps
(Type-C)
Realtek 8125BG
2.5Gbps LAN
Intel AX211
WiFi 6E
HD Audio
ALC897
PCI_E1
CPU
PCIe 5.0 x16
PCH
GL3590
DDR5
DIMM A1/A2
DIMM B1/B2
M.2_1
GEN4 x 4 (Pcie Only)
PCIE x4
PCI_E3
PCIe 4.0 x4
GEN4 x4 M.2_2
(PCIe + SATA)
SATA_8
SATA_5_6_7
USB3.2 Gen2 10Gbps
(Front Type-C)
USB3.2 Gen1 5Gbps
(Front Type-A)
USB2.0 480Mbps
(Front Type-A)
GL850
