Check-Panel 210 connections

45
46
47
48
49

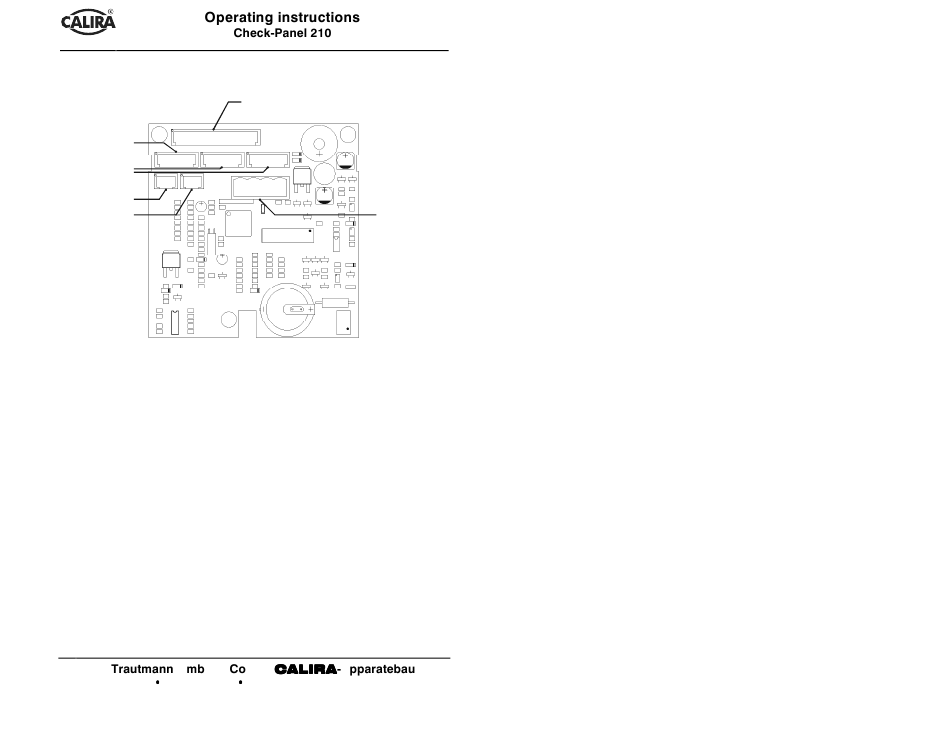

Fig. 9: Connectors on rear side of CP 210
44 Connector 12 pole, connection CP 210 – fuse-junction box or
CP 210 – power supply (EVS)
45 Connector, 5-pole, Fresh water tank filling level probe, graduated in
steps of 25%.
46 Connector, 5-pole, fresh water tank 2 filling level probe, stepless
47 Connector, 5-pole, fresh water tank 1 filling level probe, stepless
48 Connector, 2-pole, Outside temperature sensor
49 Connector, 2-pole, Inside temperature sensor
50 Connector 4 pole active shunt for current measurement
Remark
Mixing up the 5-pole tank connections leads to display of incorrect tank. It is
only permitted to connect a stepped CALIRA filling level probe on connector
45 and a CALIRA stepless filling level probes on connector 46 and 47.
! "
