24 Display, Fresh water tank 2 (Option). Measurement and display are
shown continuously in %.
25 Button function display "Exit filling level display". By pressing button
(5) marked with this symbol, the filling level display can be ended
before the 10 seconds are complete and the standby mask (Fig. 2) can
be called up.
26 Waste water tank display. Measurement and display are in 25% steps.
The tank filling acoustics for fresh water tank 1 or 2 (option) can be activated
by pressing buttons (2, 3) of the corresponding button function displays
(22, 23). The filling of the selected tanks (28, 32) is shown on the display by an
assigned symbol (27, 30) and monitored by the electronics (Fig. 5, Fig. 6). An
acoustic warning is emitted, as soon as the level in the selected tank is up to
80% of the tank height.

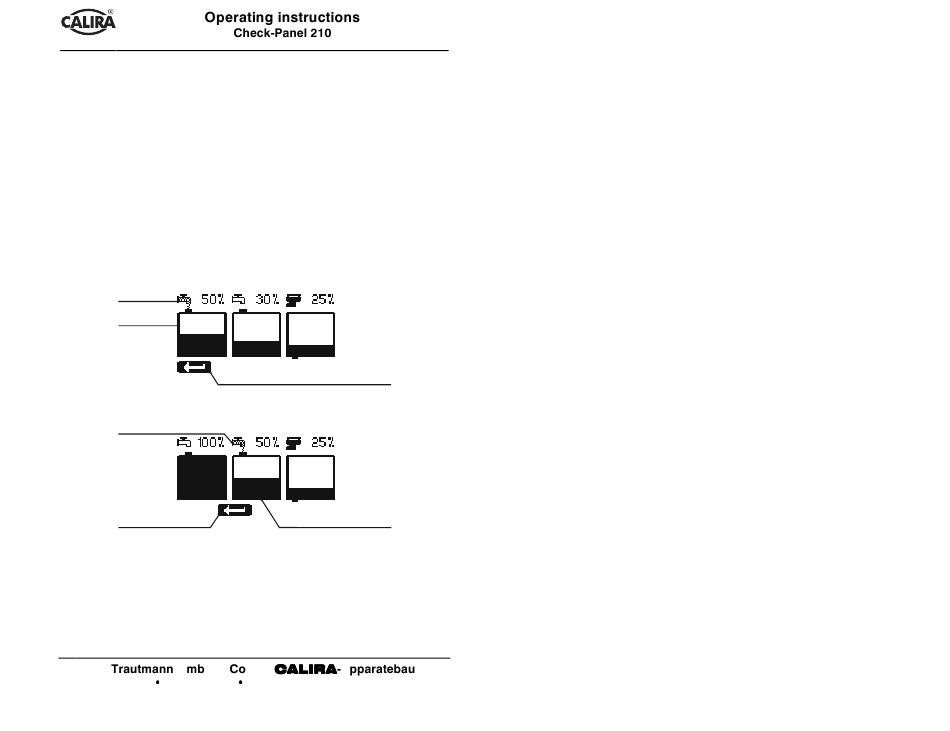

27
28
Fig. 5: Filling of fresh water tank 1
30
31
Fig. 6: Filling of fresh water tank 2
! "
22
Lerchenfeldstr. 9 87600 Kaufbeuren Tel.: +49(0)8341 / 9764-0 Fax: +49(0)8341 / 67806
29
32
# $ %
