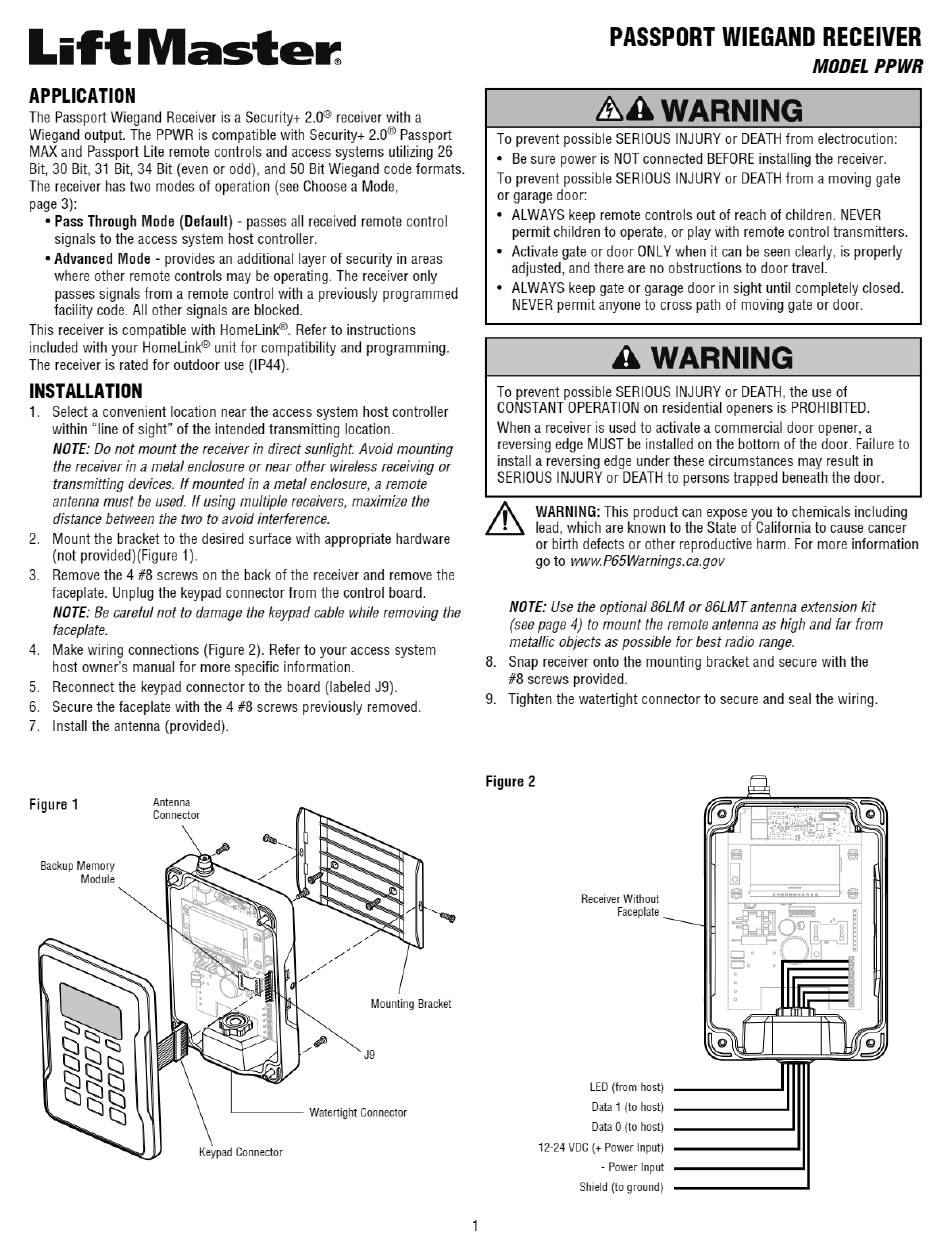

LiftMaster PPWR Mode D'emploi

APPLICATION
The Passport W iegandReceiveris a SecuritY+ 2.0@ receiverwith a
Wiegand output.ThePPWR is compatible w ith SecuritY+ 2 .0@ Passport
MAX and Passport Lite remote controls and access systems utilizing 26
Bit, 30 Bit, 31 Bit, 34 Bit (even or odd), and 50 Bit Wiegand code formats.
The receiver has two modes of operation (see Choosea Mode,
page3):
• Pass Through Mode (Default) - passes all received remote control
signals to the access system host controller.
• Advanced Mode - provides an additional layer of security in areas
where other remote controls may be operating. The receiver only
passes signals from a remote control with a previously programmed
facility code. All other signals are blocked.
This receiveris compatiblewith HomeLink@. Referto instructions
included withyourHomeLink@ unitfor compatibility a ndprogramming.
The receiver is rated for outdoor use (IP44).
INSTALLATION
1. Select a convenient location near the access system host controller
within "line of sight" of the intendedtransmittinglocation.
NOTE:Do not mount the receiver in direct sunlight. Avoid mounting
the receiver in a metal enclosure or near other wireless receiving or
transmitting devices. If mounted in a metal enclosure, a remote
antenna must be used. If using multiple receivers, maximize the
distance between the two to avoid interference.
2. Mount the bracket to the desired surface with appropriate hardware
(not provided)(Figure 1).
3. Remove the 4 #8 screws on the back of the receiver and remove the
faceplate. Unplug the keypad connector from the control board.
NOTE:Be careful not to damage the keypad cable while removing the
faceplate.
Make wiring connections (Figure 2). Refer to your access system
4.
host owner's manual for more specific information.
5. Reconnectthe keypad connector to the board (labeled J9).
Secure the faceplate with the 4 #8 screws previously removed.
6.
7.
Install the antenna (provided).
Antenna
Figure I
Connector
BackupMemory
Module
KeypadConnector
L-:-x
8.
9.
Figure 2
Mounting Bracket
J9
Watertight Connector
1
PASSPORT WIEGAND RECEIVER
AA WARNING
To prevent possible SERIOUSINJURYor DEATHfrom electrocution:
• Be sure power is NOTconnected BEFORE installing the receiver.
To prevent possible SERIOUSINJURYor DEATHfrom a moving gate
or garage door:
• ALWAYSkeep remote controls out of reachof children. NEVER
permit children to operate, or play with remote control transmitters.
• Activate gate or door ONLYwhen it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYSkeep gateor garagedoor in sight until completely closed.
NEVERpermit anyone to cross path of moving gate or door.
A WARNING
To prevent possible SERIOUSINJURYor DEATH,the use of
CONSTANT OPERATION on residential openers is PROHIBITED.
When a receiver is used to activate a commercial door opener, a
reversing edge MUST be installed on the bottom of the door. Failureto
install a reversing edge under these circumstances may result in
SERIOUSINJURYor DEATHto persons trapped beneaththe door.
WARNING:This product can expose you to chemicals including
lead, w hichareknownto theStateof California t o cause cancer
or birth defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov
NOTE:Use the optional 86LM or 86LMT antenna extension kit
(seepage 4) to mount the remote antenna as high and far from
metallic objects as possible for best radio range.
Snap receiver onto the mounting bracket and secure with the
#8 screws provided.
Tighten the watertight connector to secure and seal the wiring.
Receiver Without
Faceplate
LED(from host)
Data 1 (to host)
Data0 (to host)
12-24 VDC (+ Power Input)
- Power Input
Shield (to ground)
MODEL PPWR
