Bi-Wire Connections

When adopting bi-wire connections, the speaker cables from the amplifier are connected individually to the LF input terminals (for woofer)
and the HF input terminals (for CST).
Connect one set of speaker cables to the LF input terminals (for woofer). Then, connect the other set of speaker cables to the HF input
terminals (for CST). Finally, connect the respective speaker cables in pairs to the amplifier's speaker terminals.
Take care to connect both (+) wires to the (+) amplifier terminals and both (–) wires to the (–) amplifier terminals, as shown in Figure 3.
CAUTION
 Remove the shorting links before connecting speaker cables in bi-wiring connections.
TAD Micro Evolution One
8
HF
LF

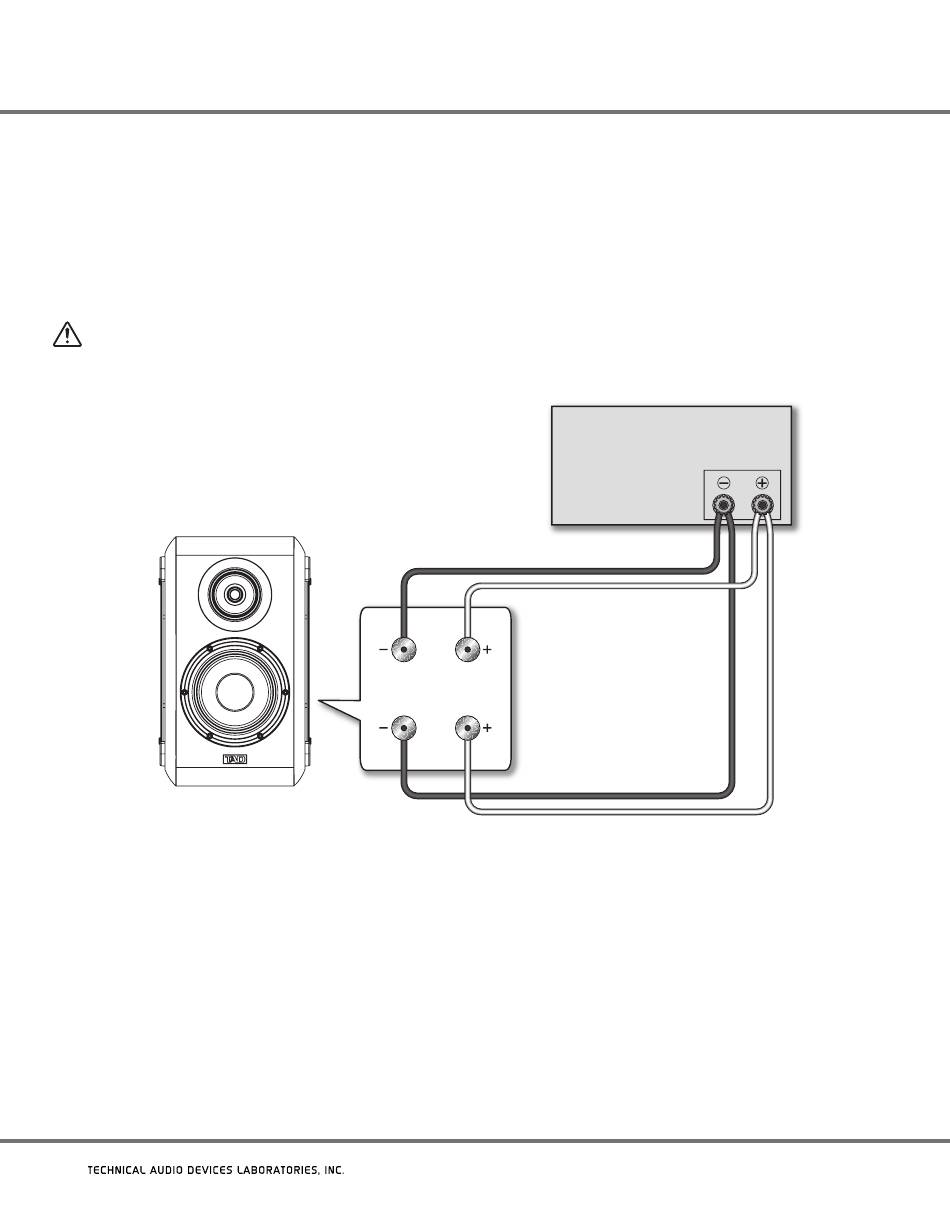

Figure 3. Connecting a speaker in a bi-wired system
Amplifier
(rear)
SPEAKERS OUTPUT
(one channel shown)
Terminal Panel
