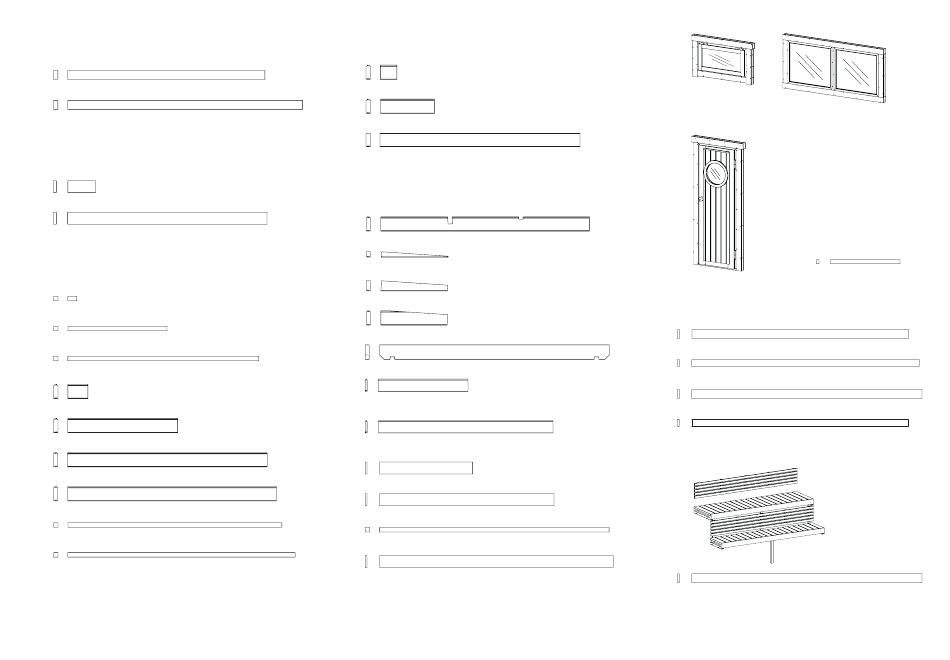

Polhus RITVA Instructions De Montage page 7

A
W1
×9 (43×90) × 1972 mm (FBI-2)
W2
×2 (43×90) × 2350 mm (FBI-1)
B
W3
×17 +1 (120×28) × 277 mm (T-1 imp)
W4
×16 +1 (120×28) × 1996 mm (F-1)
C
W5
×1 (43x43) × 117mm (FS2)
W6
×1 (43x43) × 1007mm (FS3)
W7
×3 (43x43) × 1914mm (FS1)
W8
×15 (135×44) × 200mm (009)
W9
×15 (135×44) × 1100mm (007)
W10
×12 (135×44) × 2000mm (006)
W11
×24 +1
(135×44) × 2088mm (2118 mm) (004 + 001)
W12
×2 (43x43) × 2130mm (PN-1)
W13
×2 (43x43) × 2265mm (PN-2)
W14
×12 (135x44) × 164mm (010)
W15
×8 (135×44) × 545mm (008)
W16
×2 (135×44) × 2000mm (005)
D
W17
×2 (135×44) × 2088mm (003/WA-1 & WB-1)
W18
×2 (135×44) × 670mm (002/WA-1 & WB-1)
W19
×2
(135×44) × 670mm (002/WA-1 & WB-1)
W20
×2 (135×44) × 670mm (002/WA-1 & WB-1)
W21
×2 (140×43) × 2318mm (RB1)
W22
×21 +1 / (114×18) × 898mm (R-4)
×27 +1 (88×18) × 898mm (R-4)
W23
×21 +1 / (114×18) × 1746mm (R-1)
×27 +1 (88×18) × 1746mm (R-1)
W24
×2
(120×18) × 905mm (GB-1)
W25
×2 (120×18) × 1747mm (GB-2)
W26
×2 (43×43) × 2318mm (ES-1)
W27
×2 (120×18) × 2354mm (EB-1)
E
×1
×1
F
W28
×1 ×1 (28×48) × 700mm (SWE-1)
G
W29
×2 (90×18) × 2160mm (TBE8-1)
W30
×2 (70×18) × 2265mm (TBE7-2)
W31
×2 (90×18) × 2295mm (TBE8-2)
W32
×2 (70×18) × 2160mm (TBE7-1)
H
×1
W33
×3 (43×43) × 1914mm (PF-1)
