in.xtend TechBook

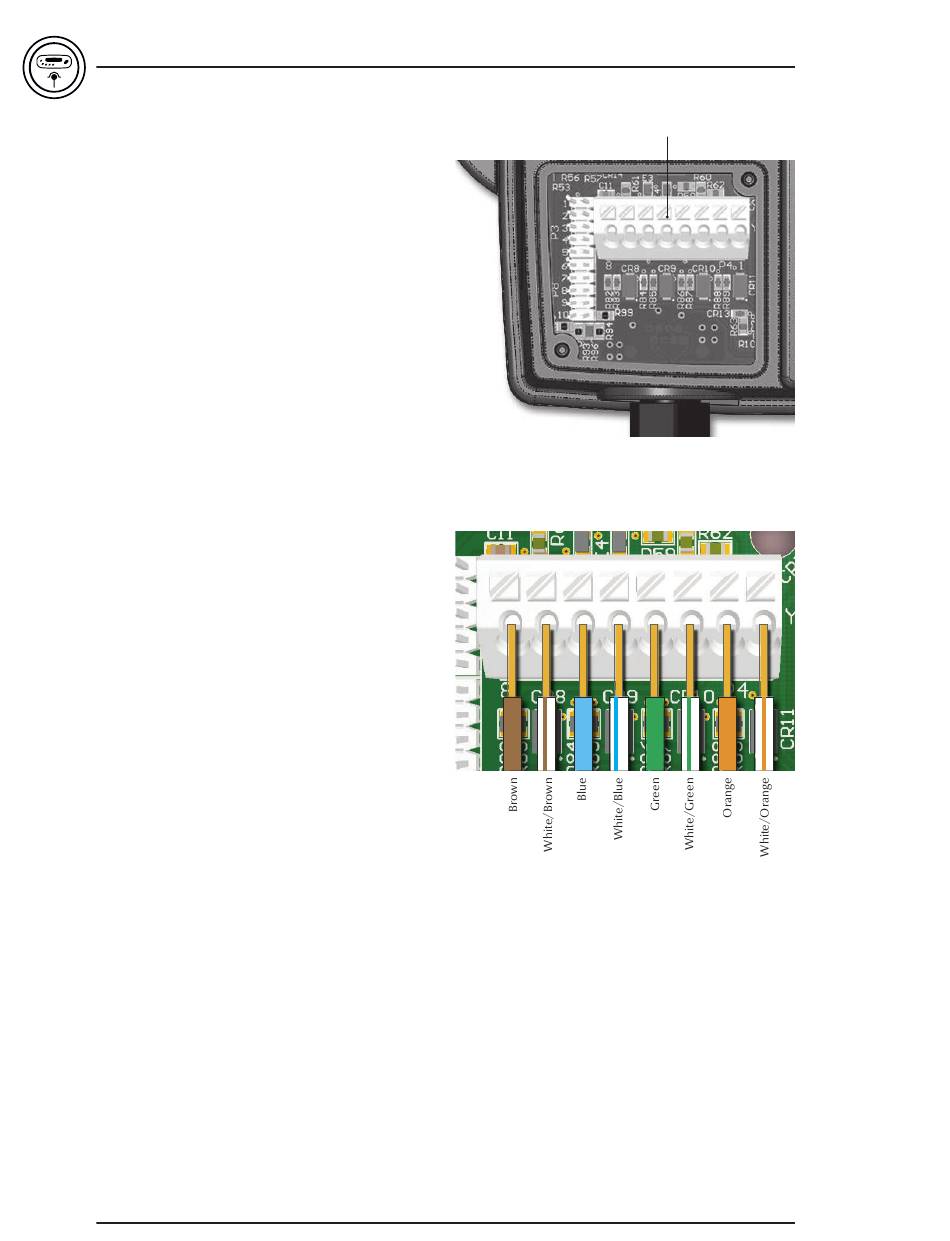

Terminal block
in.xtend-pk and in.xtend-ky connection
The connection between the inxtend-pk and
the inxtend-ky is done through a CAT5E cable
(not provided)
The terminal block to connect the CAT5E cable
is located in the front panel area
Open the front panels of both inxtend boxes
Insert a CAT5E cable in the strain relief of each
inxtend box
Bare 1 ½'' (~40 mm) on both extremities of the CAT5E
and ½'' (~15 mm) on each inside wire
Connect each wire as in the diagram
The connections are identical on both inxtend-pk
and inxtend-ky
Use a small screwdriver to push on the spring button
Keep pushing on the spring button while inserting
the wire
Make sure every wire is well inserted in the terminal
block Lock the strain relief
Leave the front open until the first power-up is complete
to make sure the whole system is fully functional
6
