CONNECTING THE SPEAKERS

CAUTION
 When connecting speakers or other components, always turn off the power to the amplifier, and disconnect the power cord.
 Speaker cables are not furnished with this speaker system, and must be purchased separately.
 After connecting the speakers, gently pull on the speaker cables to confirm that each cable wire is connected securely to its
respective terminal. Loose connections may result in interrupted sound or noise.
 Do not allow wires from one connector or cable to touch those from another, since excessive load may be applied to the
amplifier, causing the amplifier to stop operating or be damaged.
 If the polarity (+/−) of either right or left speaker is mistakenly reversed when connected to the amplifier, the speakers will
be unable to produce proper stereo phase effect.

Input terminal specifications

This speaker system is provided with LF (Low-Frequency) input terminals for the woofer, and HF (High-Frequency) input terminals for
tweeter connections.

Single-Wire Connections

When making a single wiring connection, attach the short-circuit
cord.
Terminal Panel
TAD Evolution Two

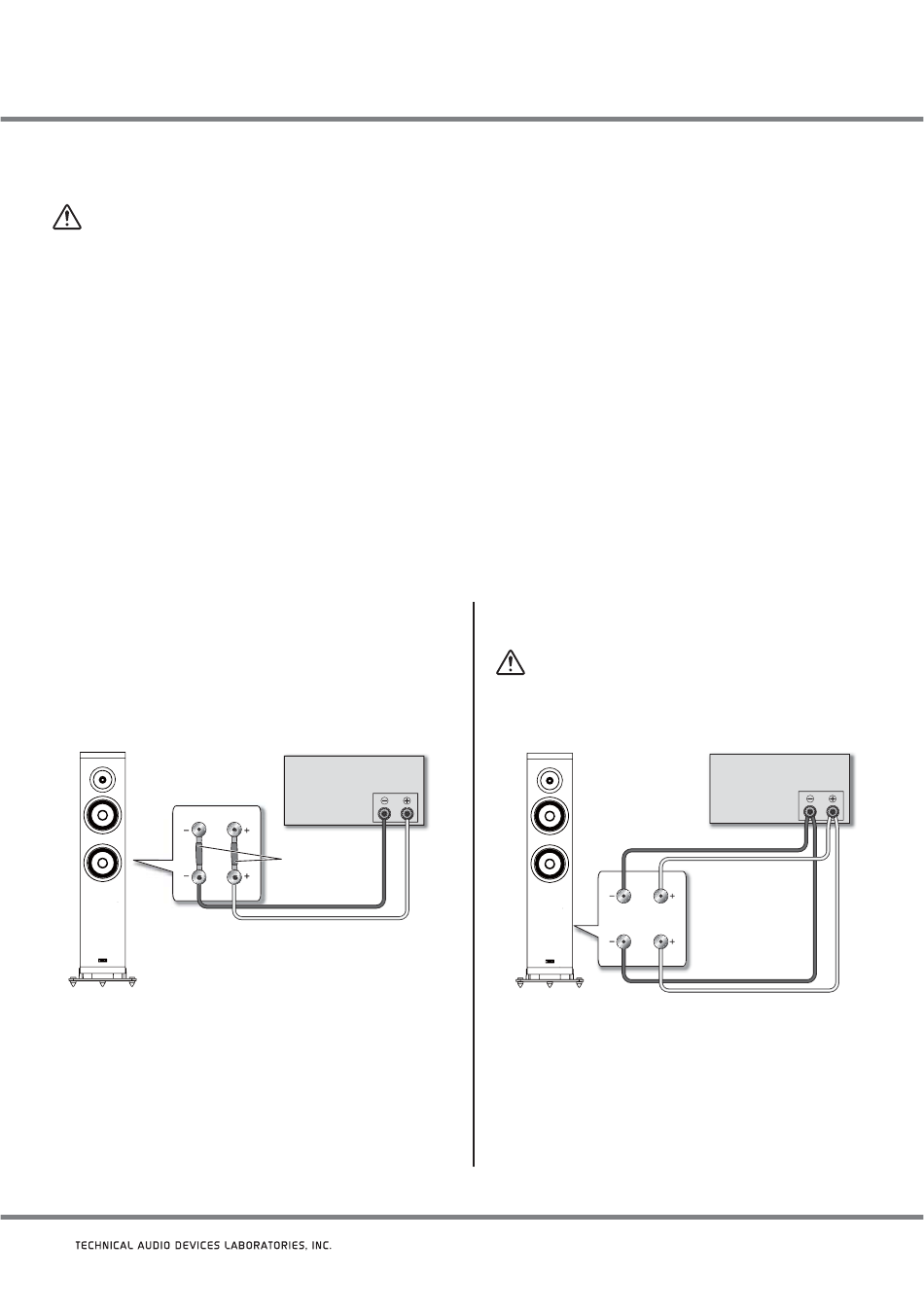

Figure 2. Connecting a speaker in a single-wired system
8
Amplifier
(rear)
SPEAKERS OUTPUT
HF
(one channel
shown)
Connect the
LF
attached
short-circuit cord

Bi-Wire Connections

CAUTION
 Remove the shorting links before connecting speaker
cables in bi-wiring connections.
(one channel shown)
HF
LF
TAD Evolution Two
Figure 3. Connecting a speaker in a bi-wired system
Amplifier
(rear)
SPEAKERS OUTPUT
Terminal Panel
