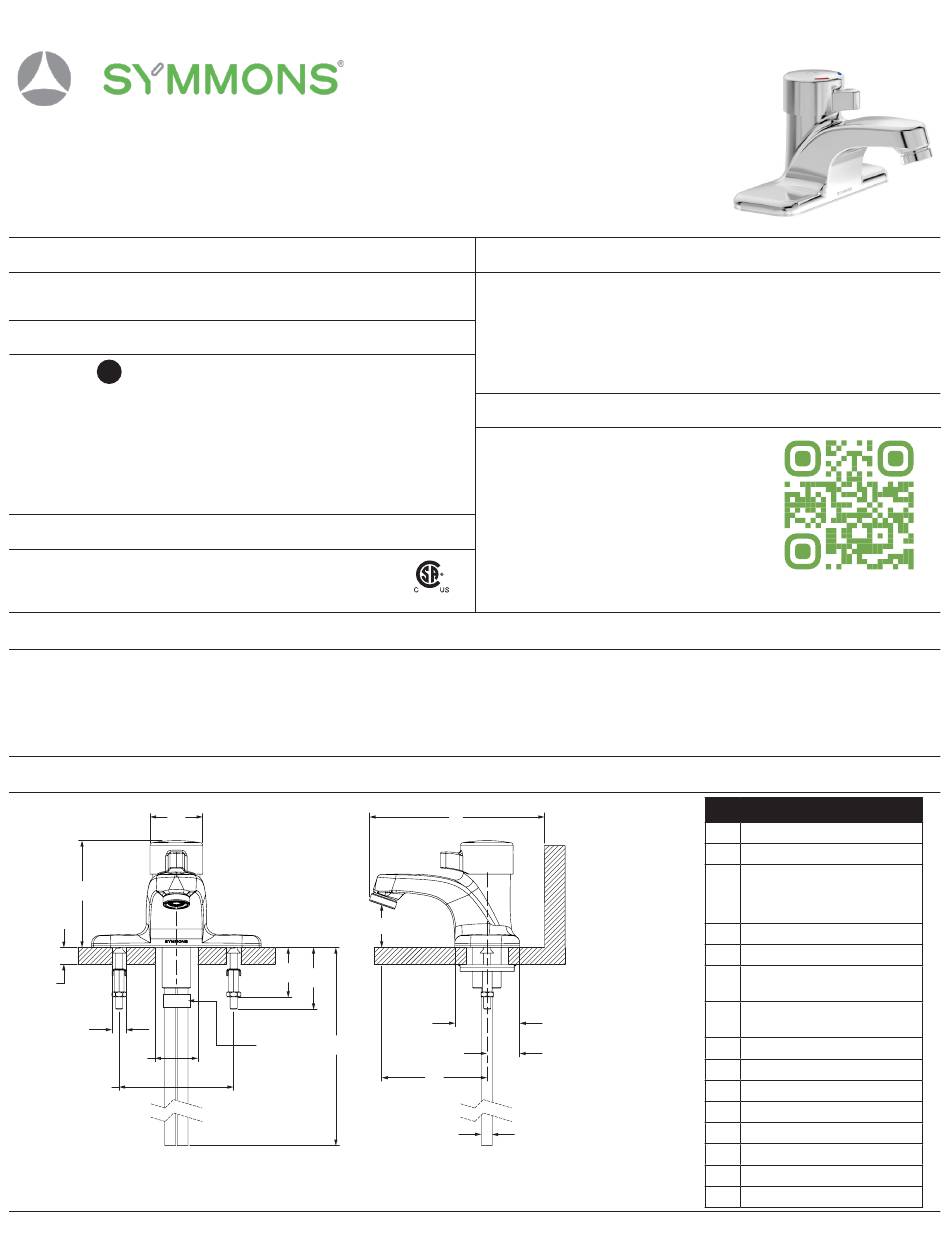

Symmons SCOT SLC 6000 Serie Manuel D'installation

SLC 6000 Series
Metering Lavatory Faucet
Specification Submittal
Model Numbers
☐
SLC-6000
SCOT Metering Lavatory Faucet
Options/ Modifications
☐
CG
035 0.35 gpm (1.3 L/min) vandal resistant
aerator
☐
-DP 8" deck plate
☐
-G Grid drain
☐
-OFG Offset grid strainer
Note: Append appropriate -suffix to model number.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 372
Architectural/ Engineering Specification
Symmons Metering Lavatory Faucet __________ Includes Metering lavatory faucet features 4" centerset mount, 3/8"
copper supply tubes and temperature limit stop, Faucet constructed from brass, plated in standard polished chrome
finish. 10 Year Commercial Warranty. ASME A112.18.1/CSA B125.1, NSF/ANSI 372 compliant. Available options: "035 -
0.35 gpm (1.3 L/min) vandal resistant aerator", "-DP - 8" deck plate", "-G - Grid drain", "-OFG - Offset grid strainer".
Dimensions
A A
B B
C C
F F
G G
I I
Note: Dimensions subject to change without notice.
Symmons Industries, Inc.
Copyright © 2023 Symmons Industries, Inc.
Location:
SCOT®/Metering
K K
D D
E E
L L
TAPE TAPE H H
N N
■ ■
31 Brooks Drive Braintree, MA 02184
■
symmons.com
Feature Highlights
• Metering lavatory faucet features 4" centerset mount
• 3/8" copper supply tubes and temperature limit stop
• Faucet constructed from brass, plated in standard
polished chrome finish
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
J J
M M
O O
■
Phone: (800) 796-6667
■
gethelp@symmons.com
Measurements
Ø 1-7/8", 48 mm
A
3-3/4", 95 mm
B
Deck Thickness Ref.
Min. 1/2", 13 mm
C
Max. 1", 25 mm
1-3/8", 35 mm
D
2-1/8", 54 mm
E
(2x) Hole Size
F
Ø 1/2", 13 mm
Hole Size
G
Ø 1-1/4", 32 mm
11", 279 mm
H
4", 102 mm
I
5-3/4", 146 mm
J
K
1-1/2", 38 mm
L
2-1/4", 57 mm
M
1-1/8", 29 mm
N 3-5/8", 92 mm
O
3/8", 10 mm
■
Fax: (800) 961-9621
■ ■
ZV-1553 REV G 120723
