Rohde & Schwarz has decided in favor of the user-friendly approach. In our opin-
ion, most users want to know the signal present in the DUT before it was altered
by the influence caused by the probe. After all, users want to characterize their
own DUTs, not the Rohde & Schwarz probe.
As long as measurements are carried out in a 50 Ω (or a comparable) environ-
ment, the signal displayed on the oscilloscope's screen is always a direct repre-
sentation of the unloaded signal V

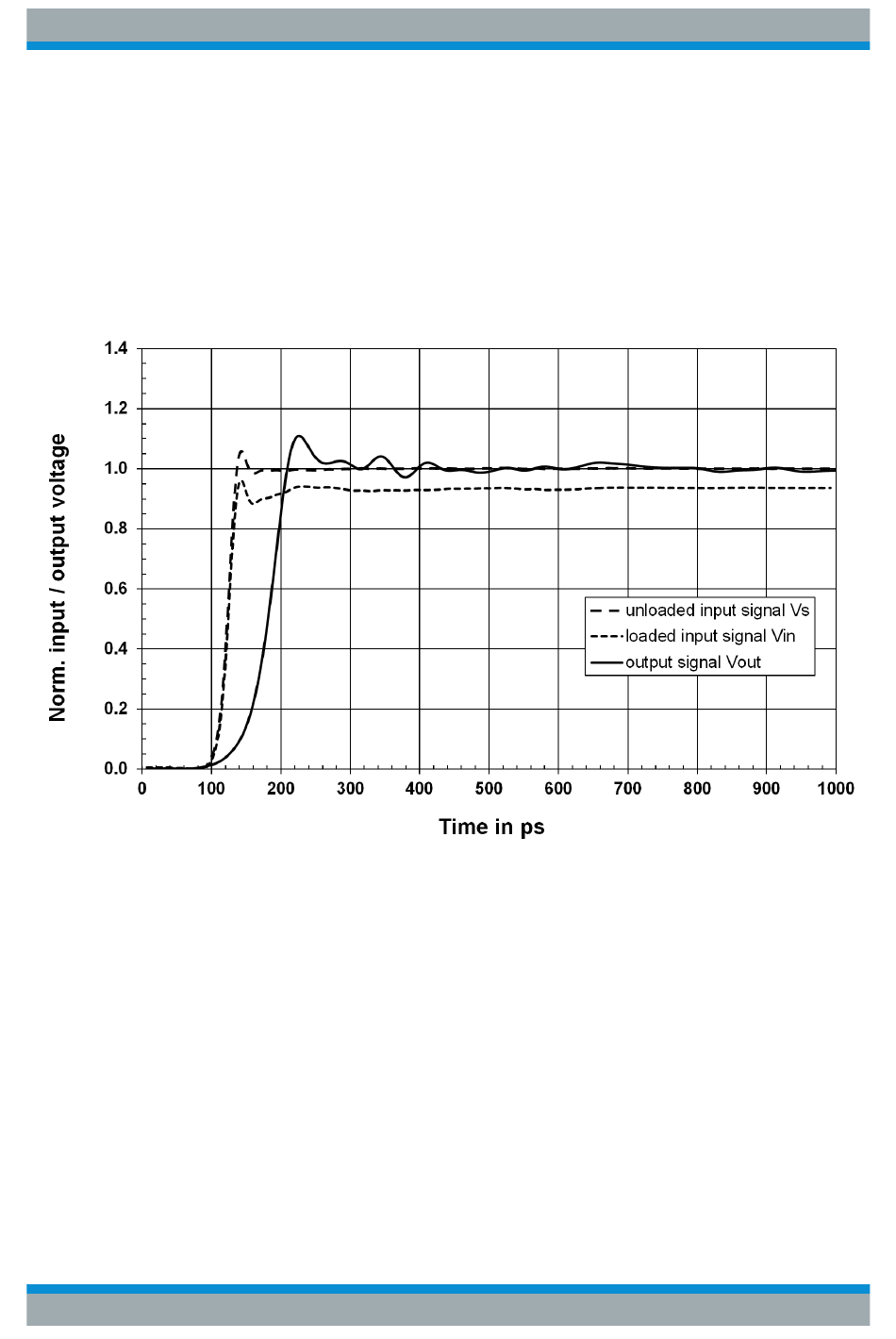

Fig. 4-10: Unloaded and loaded input signal and step response using the example of
R&S RT-ZS60
User Manual 1418.7342.02 ─ 03
, as shown in
figure
S
Measurement Principles
Probing Philosophy
4-10.
