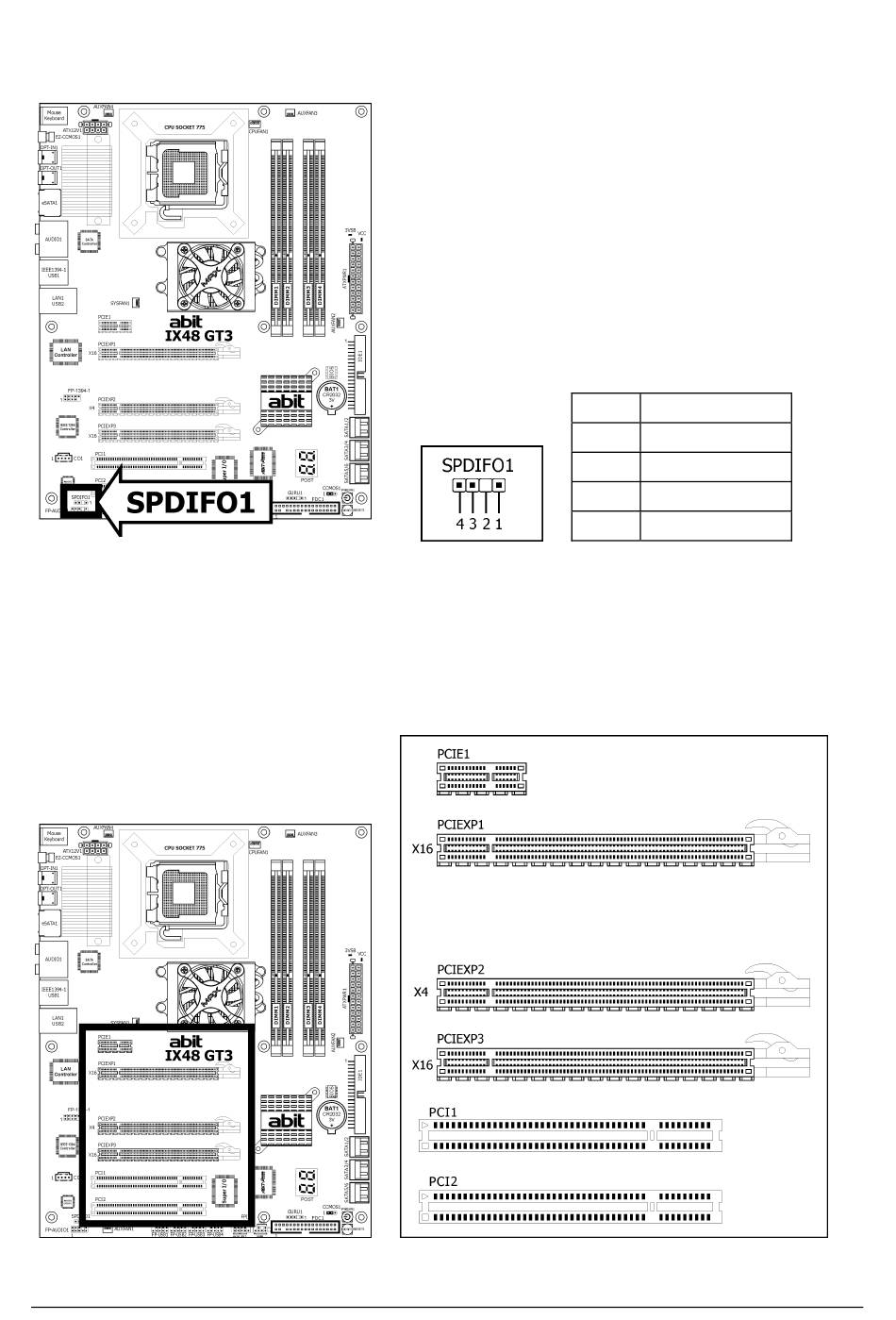

1.8.7 S/PDIF Output Connection Header
This header provides the S/PDIF output connection to your add-on HDMI VGA card.
1.8.8 PCI and PCI Express X1 Slots
Install PCI Express X1 cards into slot "PCIE1".
Install PCI Express X4 cards into slot "PCIEXP2".
Install PCI cards into slots "PCI1" and/or "PCI2".
1-18
Pin
Pin Assignment
1
VCC (5V)
2
x
3
S/PDIF Out
4
Ground
IX48 GT3
