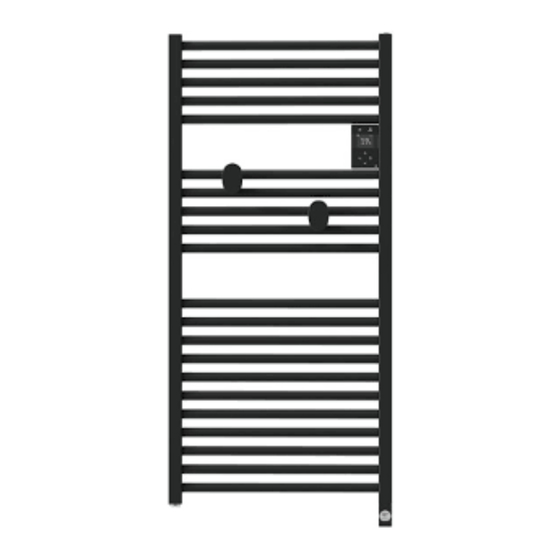

Instructions de montage
Assembly instructions
Dépliez complètement les rabats du couvercle
carton face imprimée (selon moèle) vers vous et
plaquez-le contre le mur.
Completely unfold the flaps of the cardboard cover
with the printed side (depending on model) towards
you and press it against the wall.
Chevilles non fournies. A adapter à votre mur
Dowels not included. To adapt to your wall.
Pour éviter tout danger pour les très jeunes enfants,
il convient d'installer cet appareil de façon telle que
le barreau chauffant le plus bas soit au moins 600 mm
au-dessus du sol.
To avoid any danger for children, this appliance
should be installed so that the lowest heating bar
is at least 600 mm above the floor.

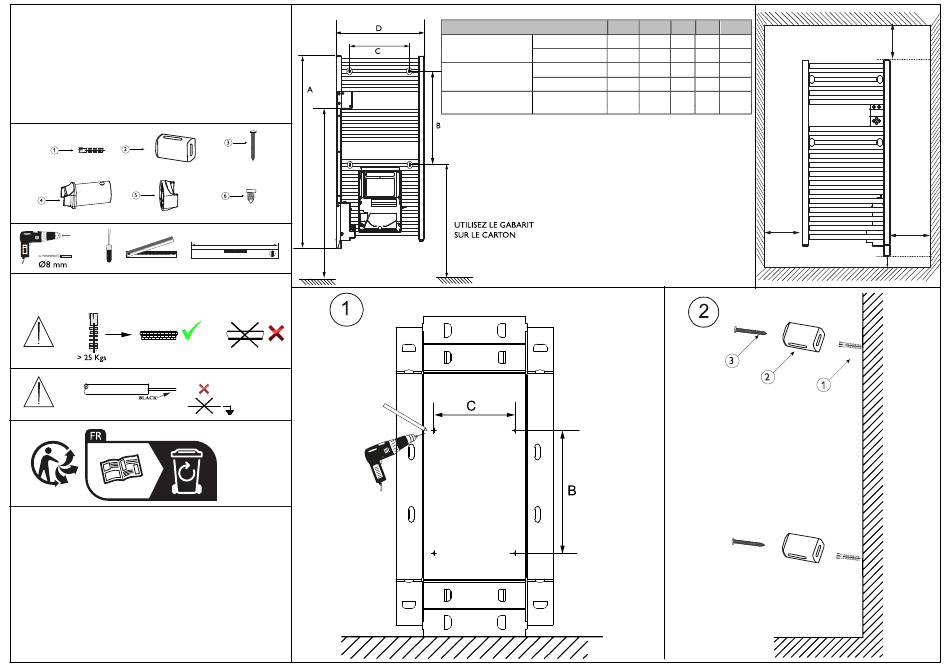

Dimensions (mm)
Version Largeur 400
400mm width version
Version Largeur 500
500mm width version
Version Largeur 550 1000W / 2000W
550mm width version
E
Use the template
on the cardboard
A
B
C
D
300W / 1300W
893
287
310 400
500W / 1500W
1426
779
310 400
500W / 1500W
1098
533
340 500
750W / 1750W
1631
1025
340 500
1836
1189
390 550
*E : Si gabarit posé au sol
If template laid on the ground
E
*
955
> 150 mm
1363
1129
1486
1609
> 250 mm
> 250 mm
> 200 mm
