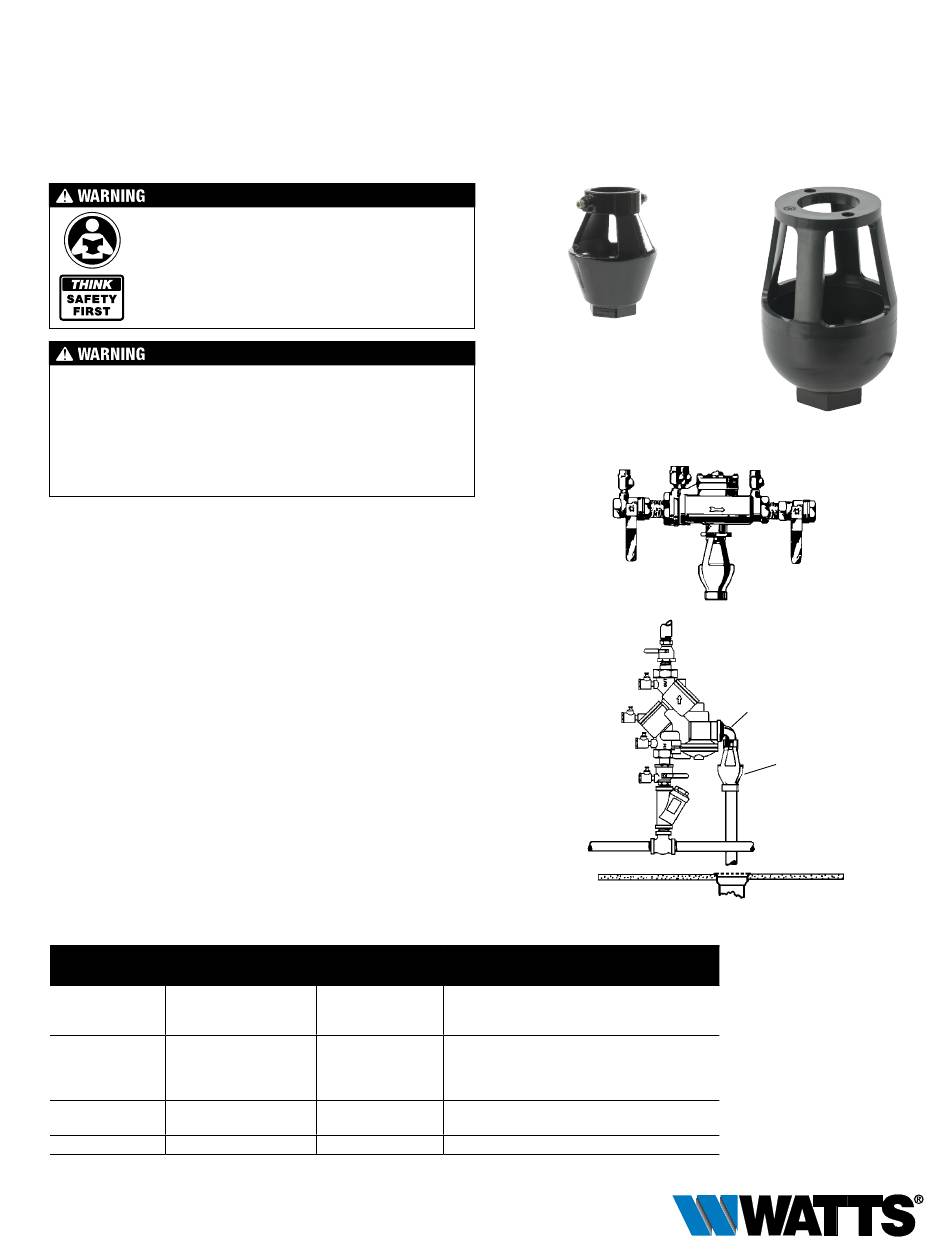

Watts AirGap-P-1 Instructions D'installation

Installation Instructions
Air Gaps
Series 009, 909, 909RPDA, 919, 995
⁄ " – 2"
1
2
Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use
information can result in death, serious personal
injury, property damage, or damage to the equipment.
Keep this Manual for future reference.
Local building or plumbing codes may require modifications
to the information provided. You are required to consult the
local building and plumbing codes prior to installation. If the
information provided here is not consistent with local building
or plumbing codes, the local codes should be followed.
This product must be installed by a licensed contractor in
accordance with local codes and ordinances.
1. Air Gap installs easily to the bottom of the 009, 909,
909RPDA, 919 and 995 backflow assembly relief valve.
2. Attach to the outlet of the relief valve using screws, see
cross reference sheet below to determine if a flood sensor is
required for installation.
3. For vertical installations use optional elbows as shown.
Call customer service if you need assistance with technical details.
RETIRING APPLICATION
AIR GAP KIT SIZE/SERIES
½" 009 series
0881399 – 909AGA ¾" 009M2 & 009M3 series
½"-1" 995 series
¾"-1" 909 series
¾"-1" 009 series
0881376 – 909AGC
1"-1½" 009M2 series
1¼"-2" 995 series
0881576 – 919AGC ¾"-1" 919 series
0881577 – 919AGF 1¼"-2" 919 series
COMPOSITE
AIR GAP KIT
None required but works with 88009472 FP-BF-SA
0881582 – AirGap-P-1
-009-1/2-3/4 (applies to all in this group)
None required but works with 88009473 FP-BF-SA
0881583 – AirGap-P-2
-009909-3/4-11/2 (applies to all in this group)
None required but works with 88009477 FP-BF-SA
0881582 – AirGap-P-1
-919-1/2-1 (applies to all in this group)
0881583 – AirGap-P-2 Sensor Required 88009478 - FP-BF-SA-919-1 1/4-2
0881582 - AirGap-P-1
FLOOD SENSOR
REQUIRED WITH PLASTIC AIR GAP
IS-Composite Air Gap
0881583 - AirGap-P-2
3/4" – 2" 909
(20 – 50mm)
Elbow
Air Gap
