Elica KIT0153054 Guide D'utilisation, D'entretien Et D'installation page 7

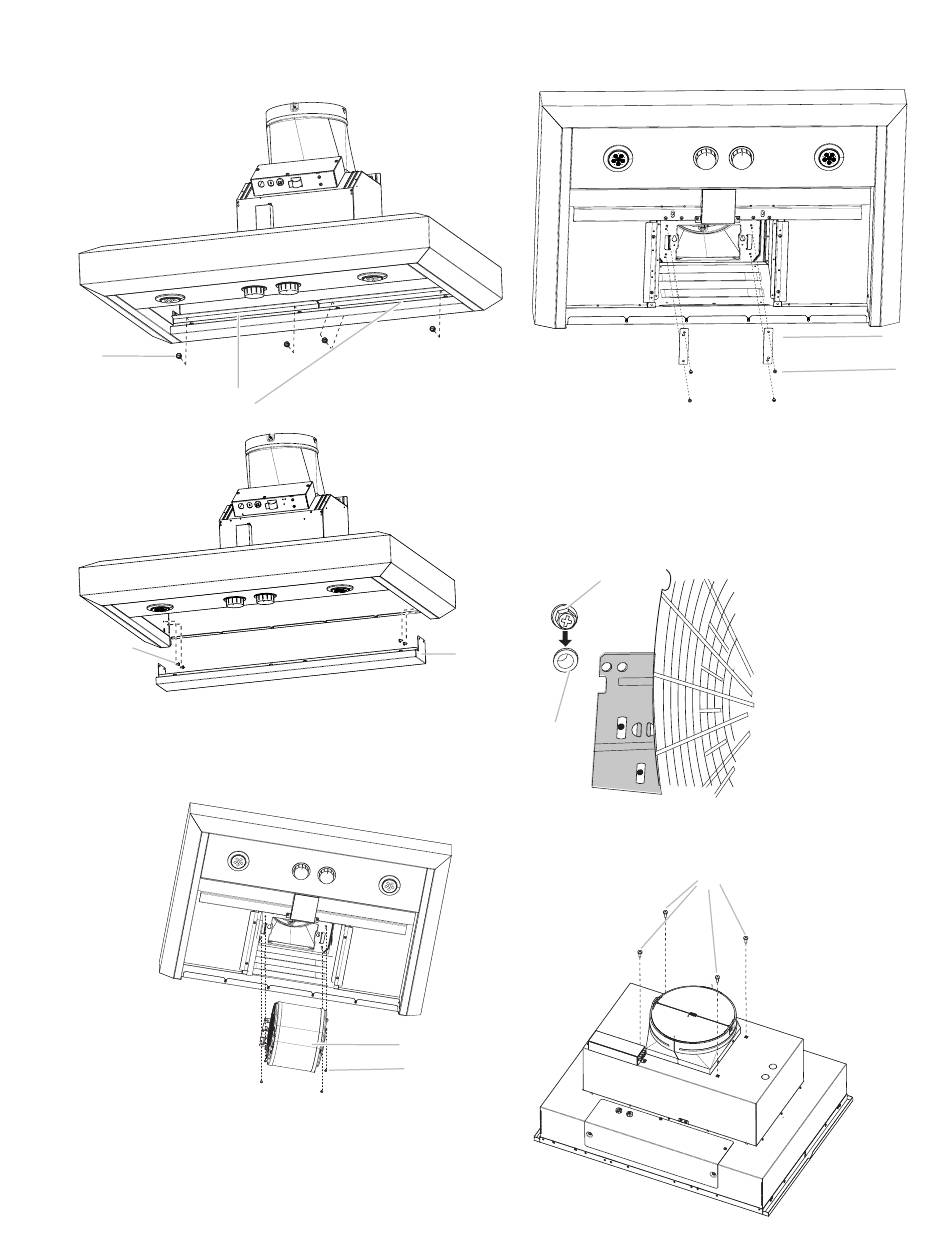

3 For or EVV648S1, EVV636S1
you have to remove the spacer and the dip trays before
removing the internal motor blower.
A
B
A
A. Spacer screws
B. Spacer
4 Remove the range hood internal motor blower.
A. Blower
B. Blower screws
range hood models
A. Drip trays screws
B. Drip trays
B
A
A
B
B
5 Install the rectangular brackets (included in kit) with
screws (4)4.2x8 mm.
6 Install the spacer, dip trays and grease filters.
A. Rectangular brackets
B. Screws
B. For dual Blower Motor Models (ECL136S4, ECL142S4,
ECL148S4, ELI142S2, ELI136S2, ETR134S1, EAR140S4,
EAR146S4, EAR134S4, ELN136S2, ELN142S2, ELN148S1,
ECP136S1, ECP148S1)
1 Remove the mounting screws and lock washers.
A
A
B
B
2 For ELN136S2, ELN142S2, ELI136S2, ELI142S2, EAR134S4
range hood models you have to remove the blower
mounting screws from the top of the hood housing.
A. Screw with locker
washer
B. Mounting Hole
A
A. Blower screws
A
A
B
B
7
