Device description
1
2
3
4

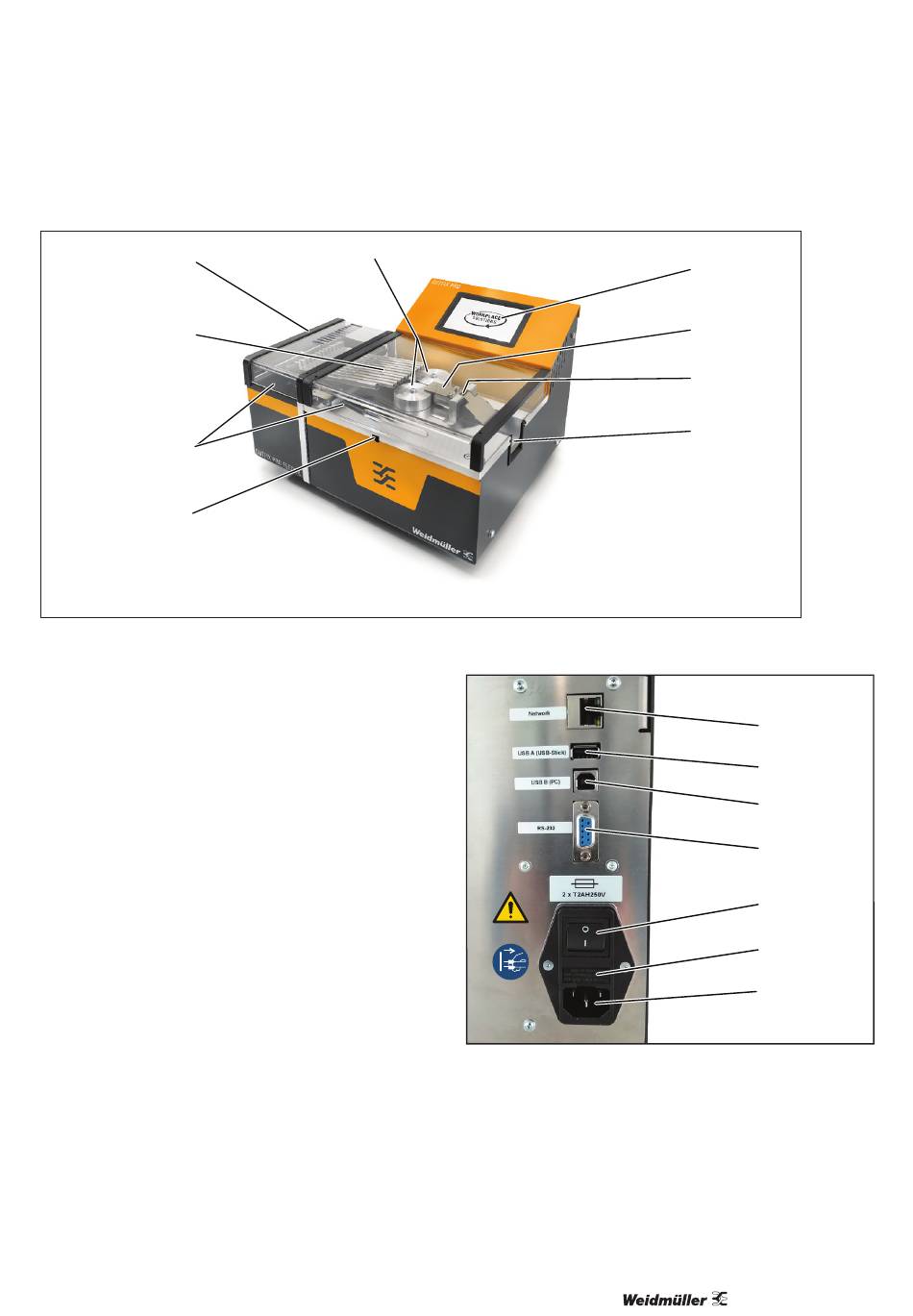

Figure 3.1 Front view
1
Multiple feeder
2
Wire feeding tubes (slots)
3
Protective covers of machine and feeder
4
Adjusting wheel for contact pressure of the feed rollers
5
Feed rollers
6
Operating unit with touch display
7
Cover plate
8
Cutting blade
9
Slide
10 Ethernet
11 USB type A (USB stick)
12 USB type B (PC)
13 RS-232
14 On/off switch
15 Fuse compartment
16 Mains connection socket
2819930000/05/03.2025
5
Figure 3.2 Rear view
Device description
6
7
8
9
10
11
12
13
14
15
16
