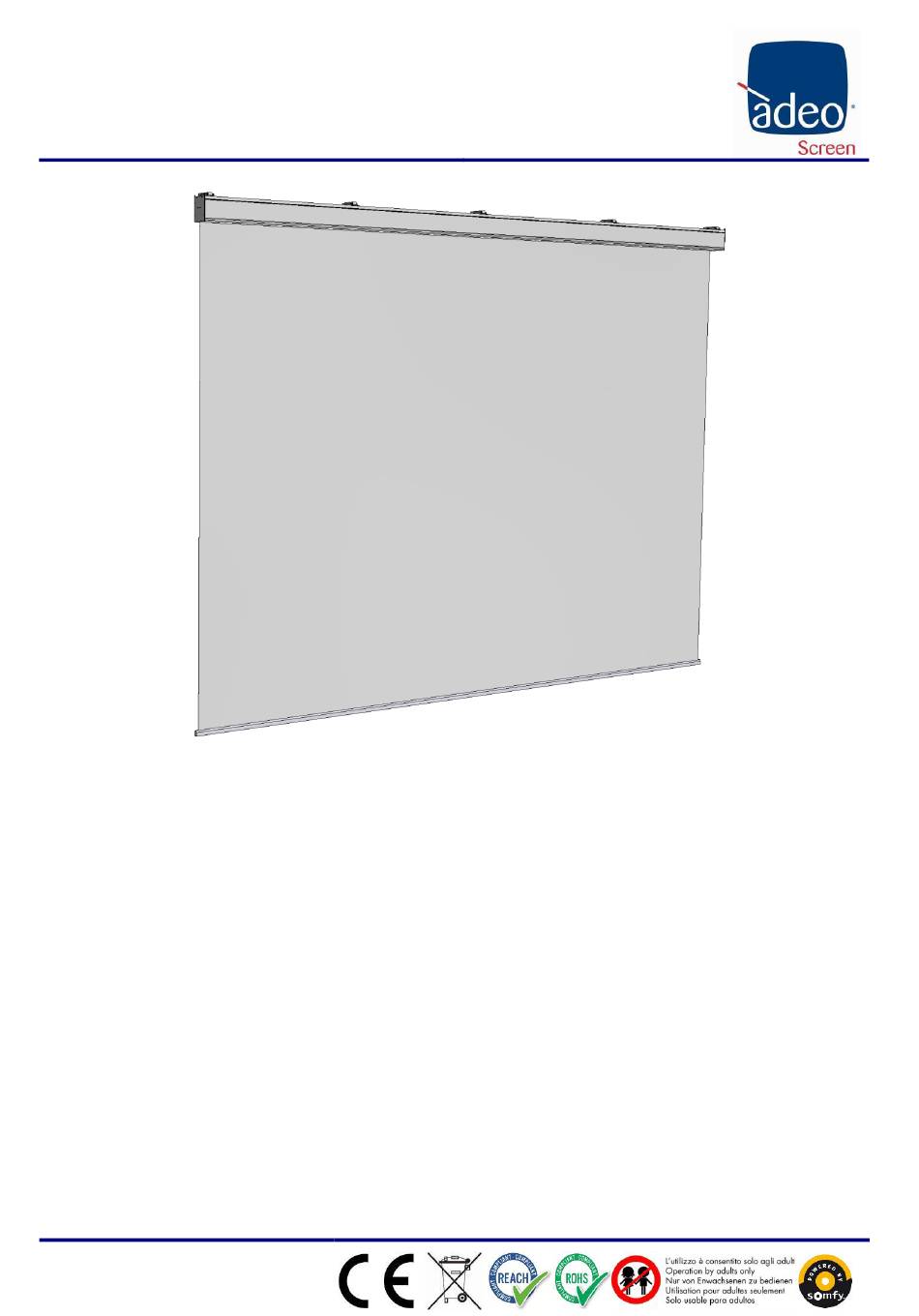

ADEO SCREEN BIG ONE Manuel D'installation

Masquer les pouces

Publicité

Liens rapides

Télécharger ce manuel
BIG ONE Installation Manual
Model BIG ONE
Code PRONBIG-ONE-XXXXX
Rolling screen installation and operation manual
Manuale d'installazione e d'uso schermo avvolgibile
Manuel d'installation et d'utilisation de l'écran de projection
Bedienungs- und Installationsanleitung: Motorleinwand
Manual de instalación y uso de la pantalla enrollable
Instrukcja montażu i obsługi ekranu rozwijanego
Made by Adeo Screen Sp. Z o.o. (Poland)
Doc: BIG ONE Installation Manual rev4 | 25.02.2025
