3.

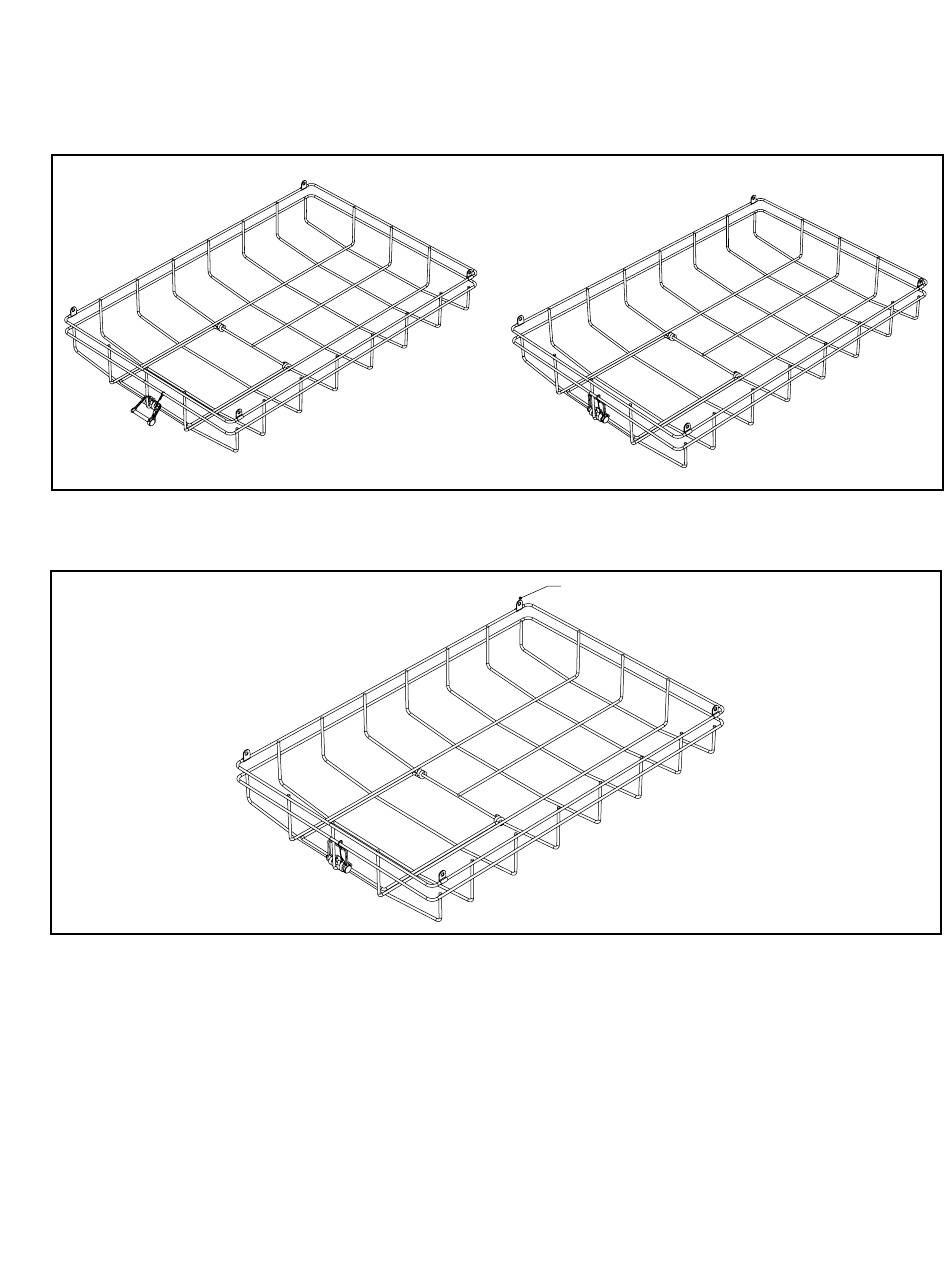

With the sensor door in the closed position, insert the clevis pin through the hasp and staple, then lock the clevis pin by
restoring its wire retainer into the locked position. (Figure 3)
Figure 3.
4.
Install the 4 wire guard mounting clips to each corner of the guard as shown in (Figure 4).
Figure 4.
5.
Locate and center the guard to the outside of the fixture housing with the clips aligned with the holes on the sides of
the end plates. (Figure 5)
If luminaire includes an integrated motion sensor, the sensor door must be in the open position prior to proceeding to
N
ote:
the next step. (Figure 7)
Installation Instructions – SPHB Wireguard
Mounting Clips 4X
COOPER LIGHTING SOLUTIONS IB51984824
Installation instructions
3
