Installation Instructions – SPHB Wireguard
INSTALLATION
Steps 1 through 3 can be skipped if installing the Wire Guard onto luminaire with an integrated motion sensor protruding
from the bottom.
1.
Remove the included clevis pin from the parts bag and attach the snap hook on the free end of its integrated tether to

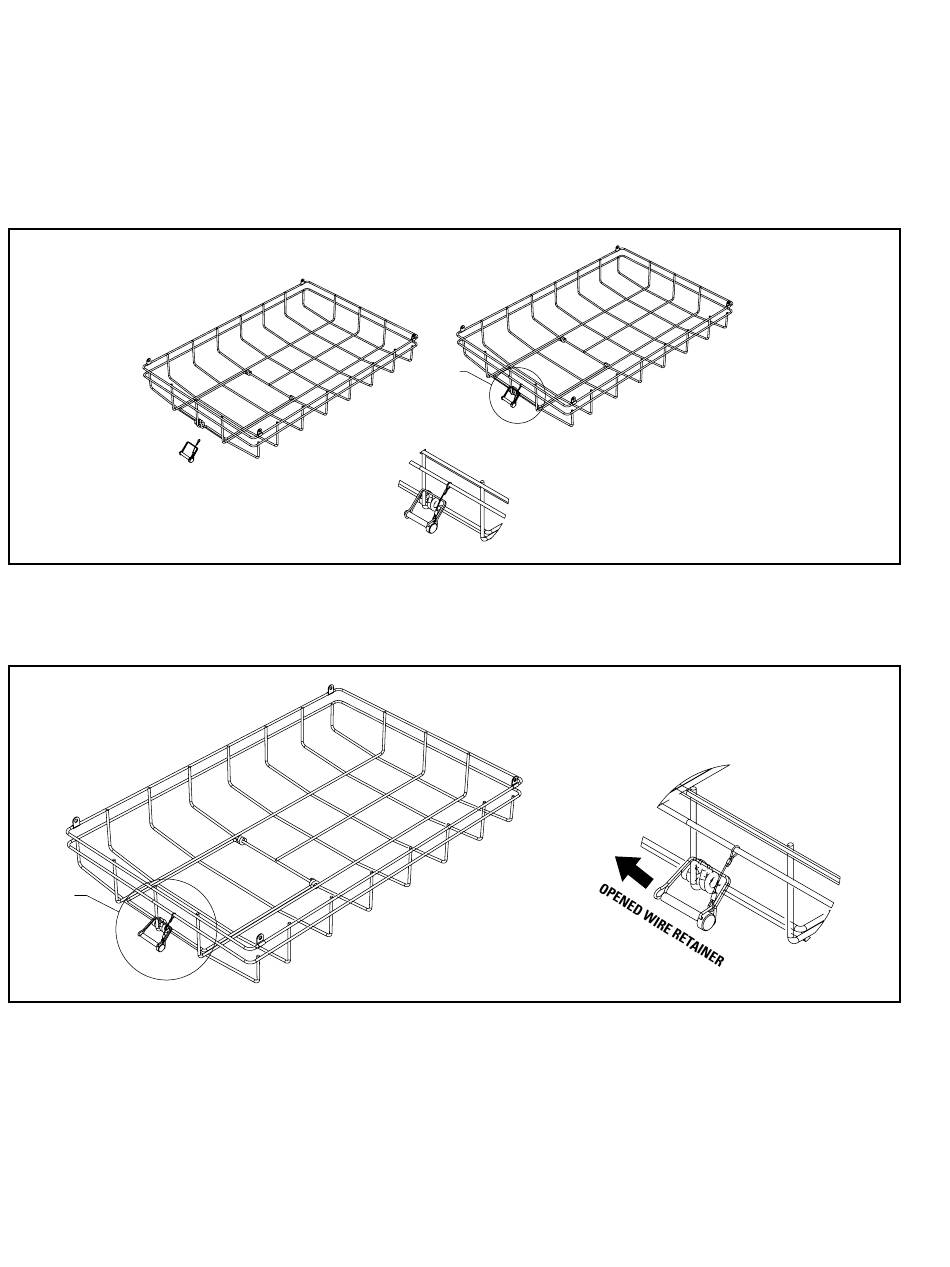

the wire guard as shown below. (Figure 1)
Figure 1.
2.
Unlock the clevis pin by pulling the wire retainer open. (Figure 2)
C C
Figure 2.
2
COOPER LIGHTING SOLUTIONS
IB51984824
Installation instructions
