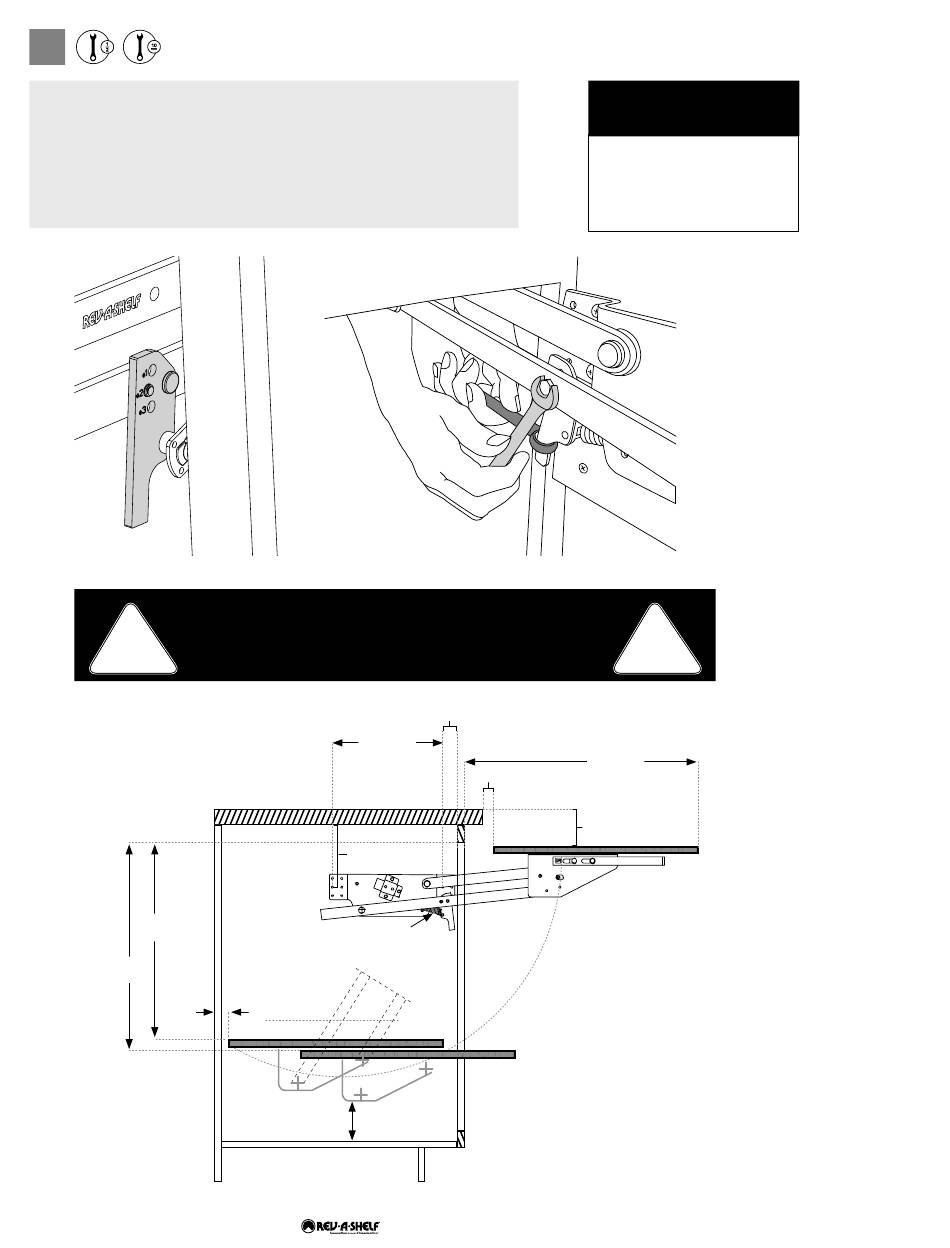

This mixer lift is equipped with (3) adjustable spring tension settings for 0-20 lbs, 20-30 lbs,
and 30-60 lbs. The unit is shipped with the spring settings set to the middle setting.
To adjust spring tension, apply slight tension to the spring mechanism by using a wrench.
Remove the bolt with a 10 mm Wrench, adjust the spring mechanism to the desired
location and reinstall the bolt, tighten securely.
Repeat on the other Mixer Lift Bracket (A).
Note: DO NOT release holding tension until after the set bolt is in the desired location!
!
RELEASING THE 12MM OR 1/2" BOX-END WRENCH USED TO HOLD
THE SPRING-LOADED MIXER LIFT BRACKETS BEFORE SECURELY
FASTENING THE REMOVED BOLT MAY RESULT IN SERIOUS INJURY
IDEAL
MEASUREMENTS
17-9/16"
(446MM)
18-11/16"
(475MM)
1-1/2"
(39MM)
WARNING
1-1/4" (32MM)
10-1/2"
(266MM)
4 1/2" (114MM)
TENSION
ADJUSTMENT
LOWEST POINT
4-3/8" (112MM)
Customer Service: 800-626-1126 | rev-a-shelf.com
RECOMMENDED SPRING
POSITION FOR VARYING
MIXER WEIGHT
1) 0–20 lbs. (0 kg–9.07 kg)
2) 20–30 lbs. (9.07 kg–13.6 kg)
3) 30–60 lbs. (13.6 kg–27.2 kg)
Anything over 60 lbs
will void the warranty.
!
22-7/16"
(570MM)
1-3/16" (30MM)
2-1/4" (56MM)
