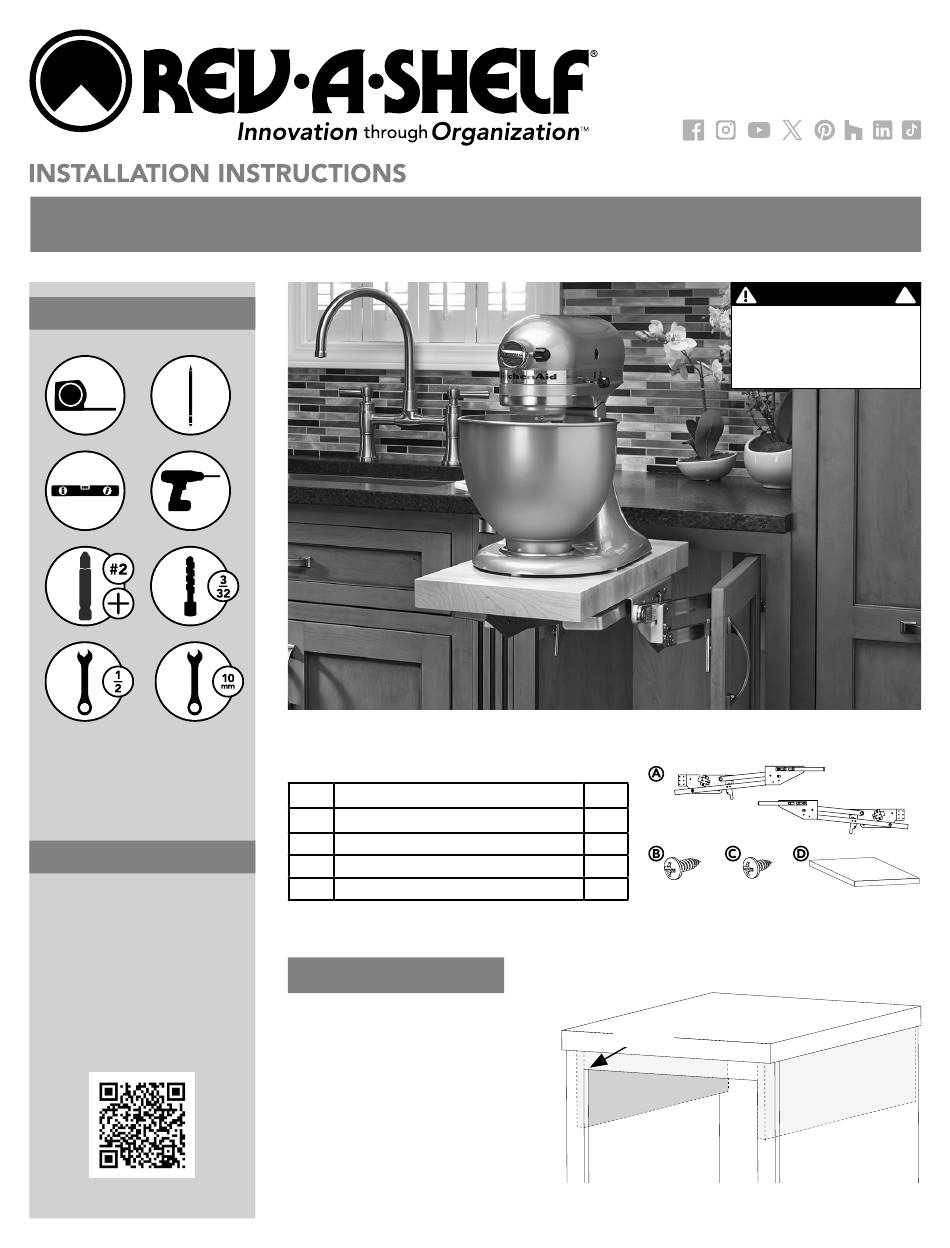

HEAVY-DUTY MIXER LIFT
TOOLS REQUIRED:
CARE AND MAINTENANCE:
Clean with a damp cloth and
wipe parts dry.
Lubricate pivot points
as needed.
WATCH TUTORIALS OF OUR
PRODUCTS BEING INSTALLED
WWW.REV-A-SHELF.COM/VIDEOS
PARTS LIST
No.
Description
A
Mixer Lift Bracket (L & R)
B
#10 x 5/8" Pan Head Screws
C
#10 x 1/2" Pan Head Screws
D
Shelf
*Depending on unit purchased, shelf may not be included.
PREPARATION
SIDE SUPPORT PANELS FOR
FACE FRAME CABINETS REQUIRED.
Align the top of the support panel with the
top of the cabinet. For strength and durability,
use hardwood for the support panel.
Each support panel should be 6" tall and
extend the full depth of the cabinet.
The panel's thickness should match the
face frame overlay, and it should be
securely attached with screws for a
sturdy installation.
Note: Support panels and screws are
not included.
12400 Earl Jones Way
Louisville, KY 40299
rev-a-shelf.com
Customer Service: 800-626-1126
This is a spring loaded
product and can cause
severe harm if not handled
properly during installation.
*Mixer Lift shelf may not be included
Qty.
1
16
12
1*
FLUSH
!
WARNING
I-RAS-ML-0325
