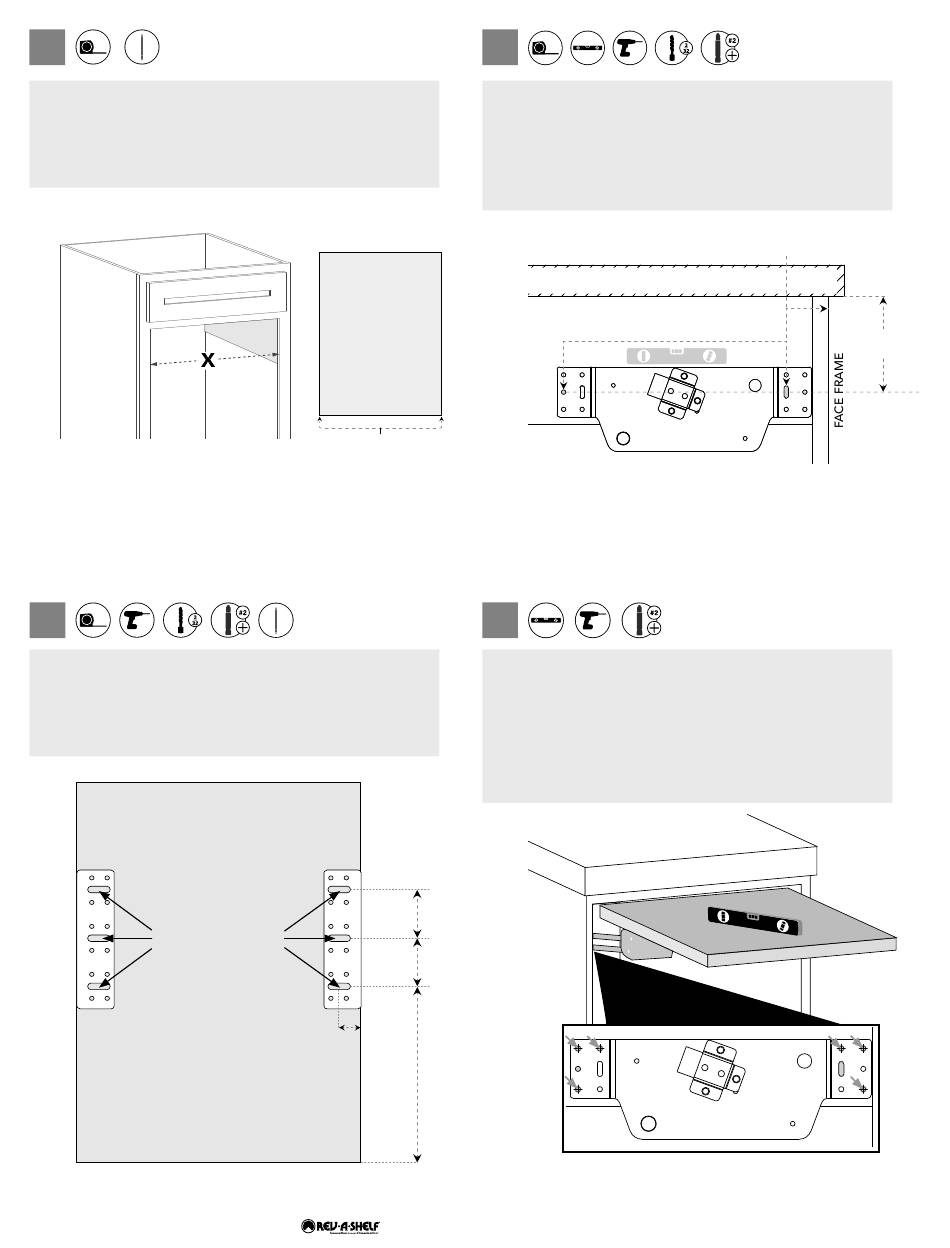

IF SHELF IS INCLUDED, SKIP THIS STEP
DETERMINING SHELF SIZE
(shelf not included)
Shelf should be a minimum of 3/4" (19mm) thick and 20" (508mm)
in length.
The width of the shelf is determined by measuring the cabinet
opening "X" minus 3-1/4" (83mm).
3
Mark and pre-drill holes into the shelf. Install shelf to the Mixer Lift Brackets
(A) with the provided (6) #10 x 1/2" Pan Head Screws (C).
Note: Be sure the shelf does not extend past the outer surface
of the mounting plate before tightening the six screws.
After first 6 screws are secure, install remaining (6) #10 x 1/2" Pan Head
Screws (C), three on each side.
UNDERSIDE OF
MIXER LIFT SHELF
LAYOUT AND DRILL
(12) 3/32" (3mm) HOLES
FRONT EDGE
2
2
Measure, and pre-drill the first two screw locations in chart below and
mount the Mixer Lift Bracket (A) with the provided (2) #10 x 5/8" Pan Head
Screws (B).
Repeat for the other Mixer Lift Bracket (A).
Note: The distance from top of cabinet is determined by height and length
of the accessory. Mixer Lift Brackets can be positioned higher if using the lift
for smaller appliances.
MIXER LIFT
SHELF
X – 3-1/4" =
SHELF
(83mm)
WIDTH
4
ADJUSTING FOR LEVEL
With shelf fully extended, place appliance on shelf and check for level.
To adjust level, remove appliance then loosen the front screws of the
Mixer Lift Brackets (A) and adjust up or down then re-tighten.
Once level, install the remaining (12) #10 x 5/8" Pan Head Screws (B)
into additional locations on both Mixer Lift Brackets (A).
Note: Not all holes will have screws. There are 8 total screws per bracket.
3"
(76mm)
3"
(76mm)
1-3/16"
8-1/2"
(30mm)
(216mm)
Customer Service: 800-626-1126 | rev-a-shelf.com
COUNTER TOP
10-1/2" (267mm)
For inset door applications, add the thickness of the door back
to the 2" measurement.
Additonal mounting hole locations
2" (51mm)
4-1/2"
(114mm)
