LED CONTROL BOARD REPLACEMENT
3. Install new control board

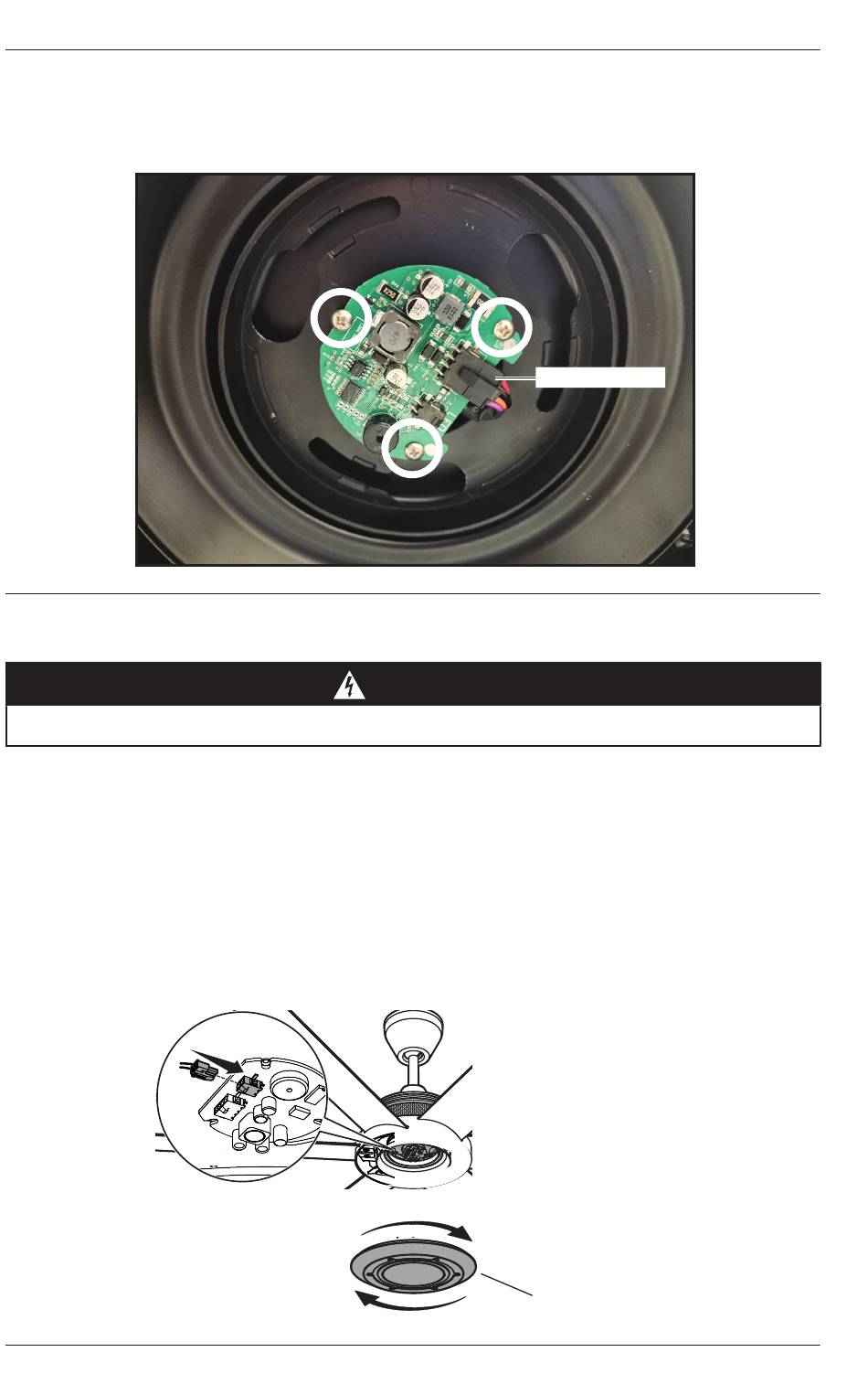

Secure new control board to fan with the three screws and connect wiring harness (Fig. 3).
Fig. 3
Wiring Harness
4. Reinstall light or lower cover
CAUTION
To reduce the risk of electric shock, disconnect power to fan before installing light.
If reinstalling a light, plug light wiring harness into "LED" receptacle on control board
(Fig. 4). Align screws on top of light or lower cover with slots on bottom of fan and twist
light or lower cover clockwise to lock (Fig. 4).
Fig. 4
Light Wiring
Harness
Light or Lower Cover
