LED CONTROL BOARD REPLACEMENT
WARNING: Power must be disconnected before installation and servicing,
cleaning, and other user maintenance. Failure to disconnect power creates risk
of fire, electric shock, and serious bodily injury.
CAUTION: The Big Ass Fans product warranty will not cover equipment damage
or failure that is caused by improper installation or use.

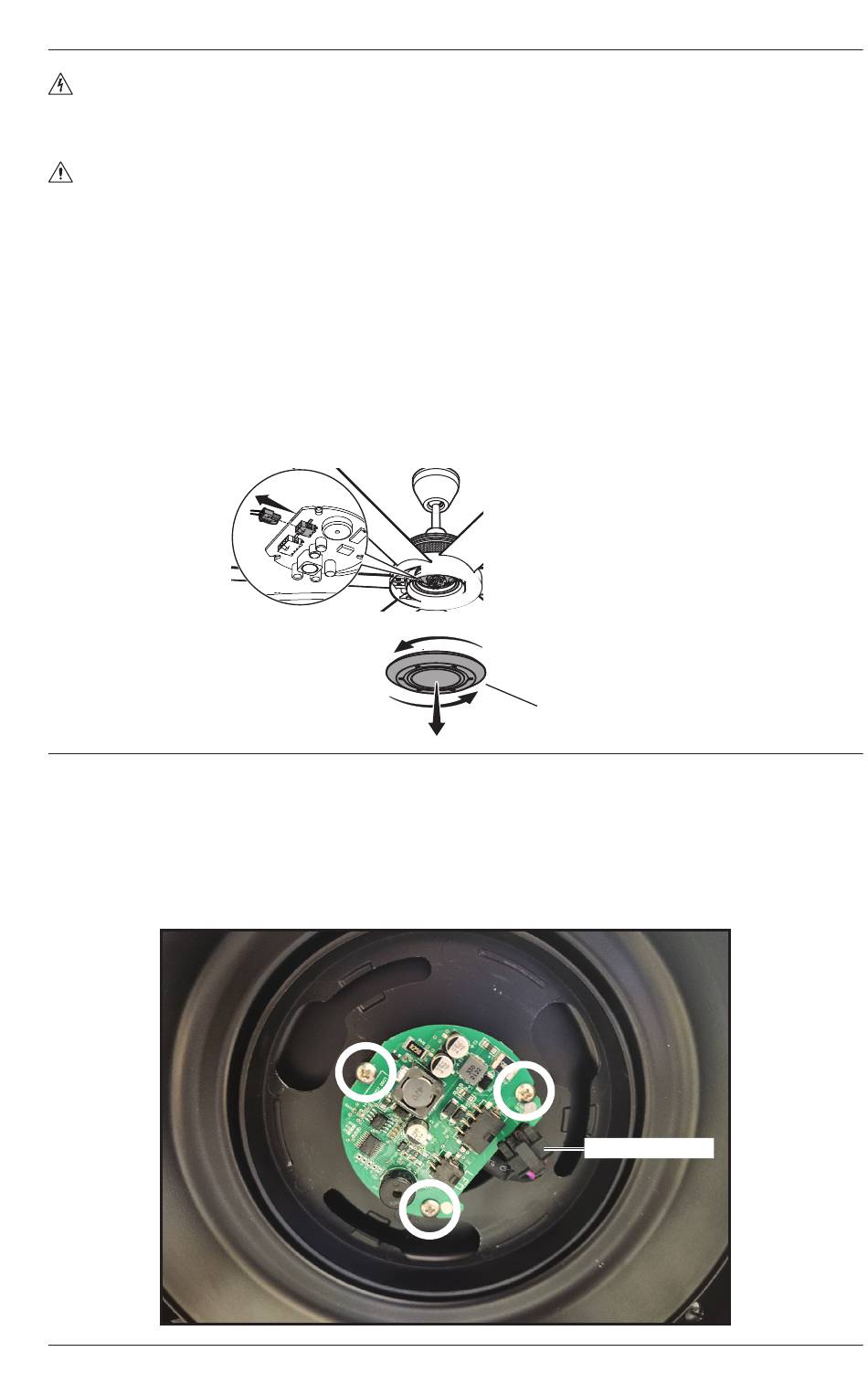

1. Remove light or lower cover
Remove light or lower cover from bottom of fan by twisting counterclockwise (Fig. 1).
Disconnect light wiring harness from "LED" receptacle on bottom of fan (Fig. 1).
Fig. 1
2. Remove old control board
Disconnect fan wiring harness from control board on bottom of fan and remove the
three screws securing control board to fan (Fig. 2). Save screws for installing new
control board.
Fig. 2
Light Wiring
Harness
© 2025 DELTA T LLC. ALL RIGHTS RESERVED.
Light or Lower Cover
Wiring Harness
