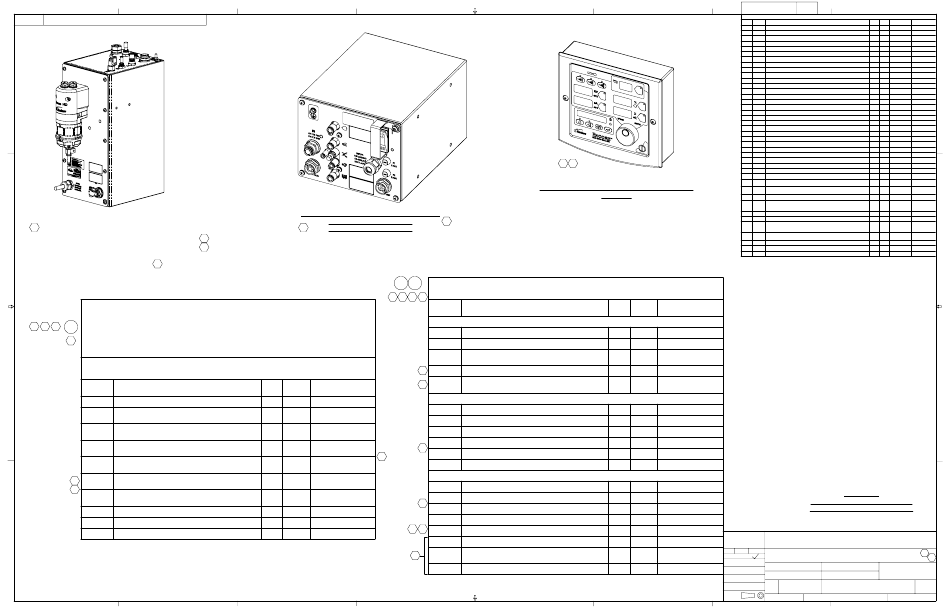

ENCORE HD CONTROLLER
POWER UNIT W/HD OR HD+ PUMP
14
C WITH HD PUMP
1605586 FOR 230V VBF
1605584 FOR 115V VBF
WITH HD+ PUMP
1611089 FOR 230 VBF
17
1611086 FOR 115 VBF
A
22 15 12
07
09
THE FOLLOWING EQUIPMENT AND ASSOCIATED CABLES ARE FOR USE IN CLASS II, DIV 2 HAZARDOUS (CLASSIFIED)
LOCATIONS OR <Ex> II (2)3D EXPLOSIVE ATMOSPHERES:
B
PART
DESCRIPTION
NUMBER
1604125 ENCORE XT/HD INTERFACE CONTROL UNIT
ENCORE XT CONTROLLER POWER UNIT, RELAY BOARD
1082815
SET UP FOR 230V, 50HZ, VBF OPTION
ENCORE XT CONTROLLER POWER UNIT, RELAY BOARD
1600468
SET UP FOR 115V, 60HZ, VBF OPTION
ENCORE HD CONTROLLER POWER UNIT, RELAY BOARD
1605586
SET UP FOR 230V, 50HZ, VBF OPTION
ENCORE HD CONTROLLER POWER UNIT, RELAY BOARD
1605584
SET UP FOR 115V, 60HZ, VBF OPTION
ENCORE HD CONTROLLER POWER UNIT, RELAY BOARD
23
1611086
SET UP FOR 115V, 60HZ VBF OPTION
17
ENCORE HD CONTROLLER POWER UNIT, RELAY BOARD
1611089
SET UP FOR 230V, 50HZ OPTION
1609709 CONTROLLER INTERFACE CABLE 50 FT
1080718 CONTROLLER INTERFACE CABLE 10 FT
1080719 CONTROLLER INTERFACE CABLE 30 INCH
A
8 7
6
ENCORE XT CONTROLLER POWER UNIT
1082815 FOR 230V VBF
1600468 FOR 115V VBF
13
15
23
General Table
cFMus /
cFMus NOTE
ATEX
X XT & HD
X XT
X XT
X HD WITH HD PUMP
17
X HD WITH HD PUMP
X HD WITH HD+ PUMP
X HD WITH HD+ PUMP
X XT & HD
X XT & HD
X XT & HD
6
5 4
13 14
ENCORE XT/HD INTERFACE CONTROL UNIT
10
A A
05 08
THE FOLLOWING APPLICATORS AND CABLES ARE SUITABLE FOR CLASS II, DIV 1, GROUP F & G HAZARDOUS
(CLASSIFIED) LOCATIONS, OR <Ex> II 2 D EXPLOSIVE ATMOSPHERES:
22 21 14 13
PART
DESCRIPTION
NUMBER
GUNS
1600818 ENCORE XT HANDGUN
1603160 ENCORE HD HANDGUN
ENCORE AUTOMATIC GUN BAR MOUNT
1097489
(CAN BE USED IN ROBOT APPLICATIONS)
21
1620076 ENCORE SELECT HD ROBOT GUN
APPLICATOR,AUTO,ENCORE,GEN3
25
1624523
(CAN BE USED IN ROBOT APPLICATIONS)
CABLES
1600745 ENCORE XT/HD 6 METER HANDGUN CABLE
1085168 6 METER HANDGUN CABLE EXTENSION
1605436 CABLE,SPRAY GUN,ROBOT,AUTO,ENCORE,8M
1620523 CABLE,SPRAY GUN,ROBOT,AUTO,ENCORE,20M
21
1601344 CABLE,EXTENSION,ENCORE,AUTO AND ROBOT,4M
1620466 CABLE,EXTENSION,ROBOT,ENCORE,10M
OPTIONS
1604084 EXTENSION,SPRAY,90 DEGREE,ENCORE
1605614 EXTENSION,SPRAY,60 DEGREE,ENCORE
21
1605703 EXTENSION,SPRAY,45 DEGREE,ENCORE
1609048 POSITIVE MULTIPLIER
22 18
1611977 NLIGHTEN LED LIGHT KIT
1625279 DIFFUSER,ENCORE HD AUTO,GEN3,PKG
KIT,BAR MOUNT,APPL,AUTO,ENCORE,GEN3
25 1625160
(CAN BE USED IN ROBOT APPLICATIONS)
KIT,COLLECTOR,ION,AUTO,ENCORE,GEN3
1625161
5
4
MATERIAL NO.
1084547
3
ZONE REV.
A00 00) PRELIMINARY.
A01 01) RELEASED FOR PRODUCTION.
A02 02) ADDED ZONES 21 & 22, & MOBILE SYSTEM SPECS.
A03 03) ADDED 6M CABLE EXTENSION (SHEET 1); ADDED
MOBILE SYSTEM WITH 25-LB. HOPPER (SHEET 2).
A04 04) REDRAWN IN CURRENT FORMAT; ADDED ATEX-
APPROVED VERSIONS OF INTERFACE CONTROL UNIT,
HANDGUN, 115V & 220V VBF SYSTEMS, AND 50- AND
25-LB HOPPER SYSTEMS; REDESIGNED APPROVED
EQUIPMENT SPECIFICATIONS TABLES (SHEETS 1 & 2);
REMOVED MOTORS FROM SPECIFICATION TABLES &
ADDED MFR'S CERTIFICATION NO.
A05 05) REMOVED FM-APPROVED HANDGUN ASSY 1083120
FROM APPROVED EQUIPMENT LISTING (SHEETS 1 & 2).
A06 06) PART NUMBER ERROR CORRECTION (SHEET 2).
A07 07) REMOVED 1082819, 1082843, 1082844, 1084512,
1084514, 1084517, 1087272, 1087273, 1087274, &
1087275; ADDED 1097072, 1097073, 1097074, & 1097075;
UPDATED MPS PICTORIALS.
A08 08) UPDATED ENCORE HANDGUN PICTORIALLY. NEW
ENCORE HANDGUN PART NUMBERS UPDATED IN
APPROVED EQUIPMENT TABLES.
10 09) UPDATE PG.1 & 2 FOR NEW 230V P/N
10) UPDATE VIBRATORY MOTOR VIEW, PG.2
11 1600745 WAS 1102625
12 12) RESV'D DESCRPTN, TABLES AND ASSEMBLIES TO
REFLECT 'XT' VERSION (SHEETS 1 & 2)
13 13) REMOVED ENCORE XT CONROLLER 1087276 &
ADDED 1604125; UPDATED MOBILE SYSTEM VIEWS.
14)ADDED "HD" PRODUCTS & "XT" DESIGNATIONS,UPDATE TABLES,
14
MOTOR CERT # WAS TUV05ATEX2768X(PG.2)
15) ADDED ITEM 1609709, CHANGED PART# 1606272 TO 1606978
1604125 15
AND PART#1606271 TO 1606977
16 16) ADDED POS KV MULTIPLIER (1609048)
SHT 1. CORRECTED TABLE ENTRIES FOR 1606978 AND 1606977; BOTH
17 SHEETS: ADDED TABLE ROWS FOR HD+ PUMP, ADDED NOTES FOR
HD+ OPTION;
19 ADDED: 18) OPTIONAL LED LIGHT; 19) BOM P/N'S W/ LED
20 20) UPDATES FOR NLIGHTEN ATEX CERTIFICATION
SHT 1 - REMOVED VIEWS OF GUNS, CABLES AND OPTIONS, MOVED
21 INFO TO TABLE. ADDED ENCORE HD ROBOT GUN AND CABLES.
ADDED 60 AND 45 DEGREE EXTENSIONS.
SHT 1 - 1611977 WAS CFMUS; SHT 1 & 2 - REVISED TABLE
22
HEADINGS FOR PROPER ATEX RATING TEXT.
23 REMOVED ENCORE HD HYBRID & OBS PARTS
24 UPDATED HOPPER VERSION MOBILE SYSTEM VIEW
25 ADDED GEN3 APPLICATOR & OPTIONAL KITS
