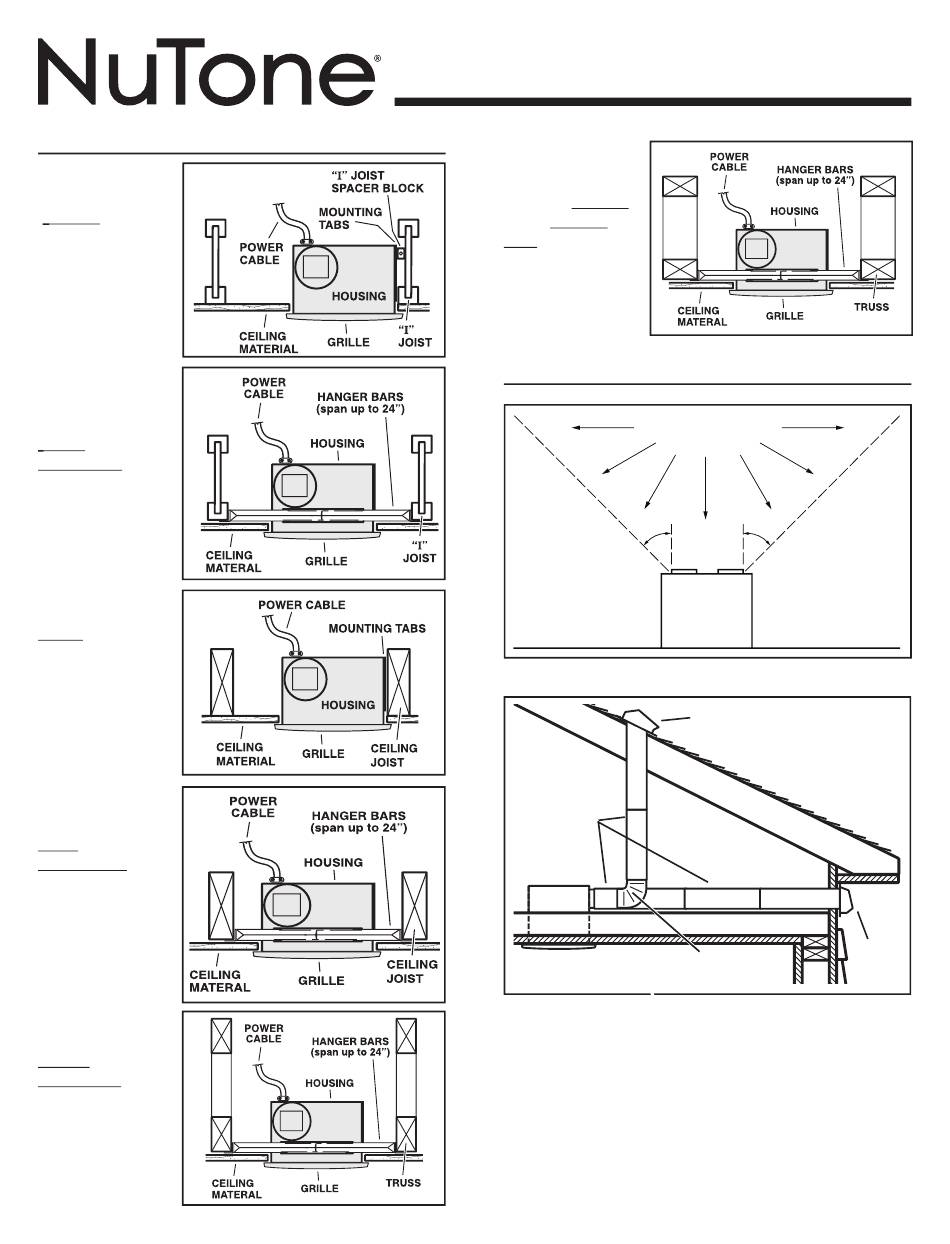

TYPICAL INSTALLATIONS
Housing
mounted to
I-joists.
Housing mounted
anywhere between
I-joists using
hanger bars.
Housing
mounted to
joists.
Housing mounted
anywhere between
joists using
hanger bars.
Housing mounted
anywhere between
trusses using
hanger bars.
All manuals and user guides at all-guides.com
Housing mounted
anywhere
between trusses
using hanger
bars.
PLAN THE INSTALLATION
Do not install above or
inside this area.
o
45
Equipment
4-IN. ROUND
*
DUCT
*
4-IN. ROUND
Purchase
separately
The unit will operate most quietly and effi ciently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
MODEL QTREN080C
Page 2
45
o
Cooking
Floor
*
ROOF CAP
WALL
CAP
*
ELBOW
*
