Fortin CHRDAA 04 Guide D'installation

CHRDAA 04
Copyright © 2006, FORTIN AUTO RADIO INC - ALL RIGHTS RESERVED
TRANSPONDER BYPASS, FACTORY ALARM AND DOOR-LOCK CONTROL FOR ALL CHRYSLER VEHICLE

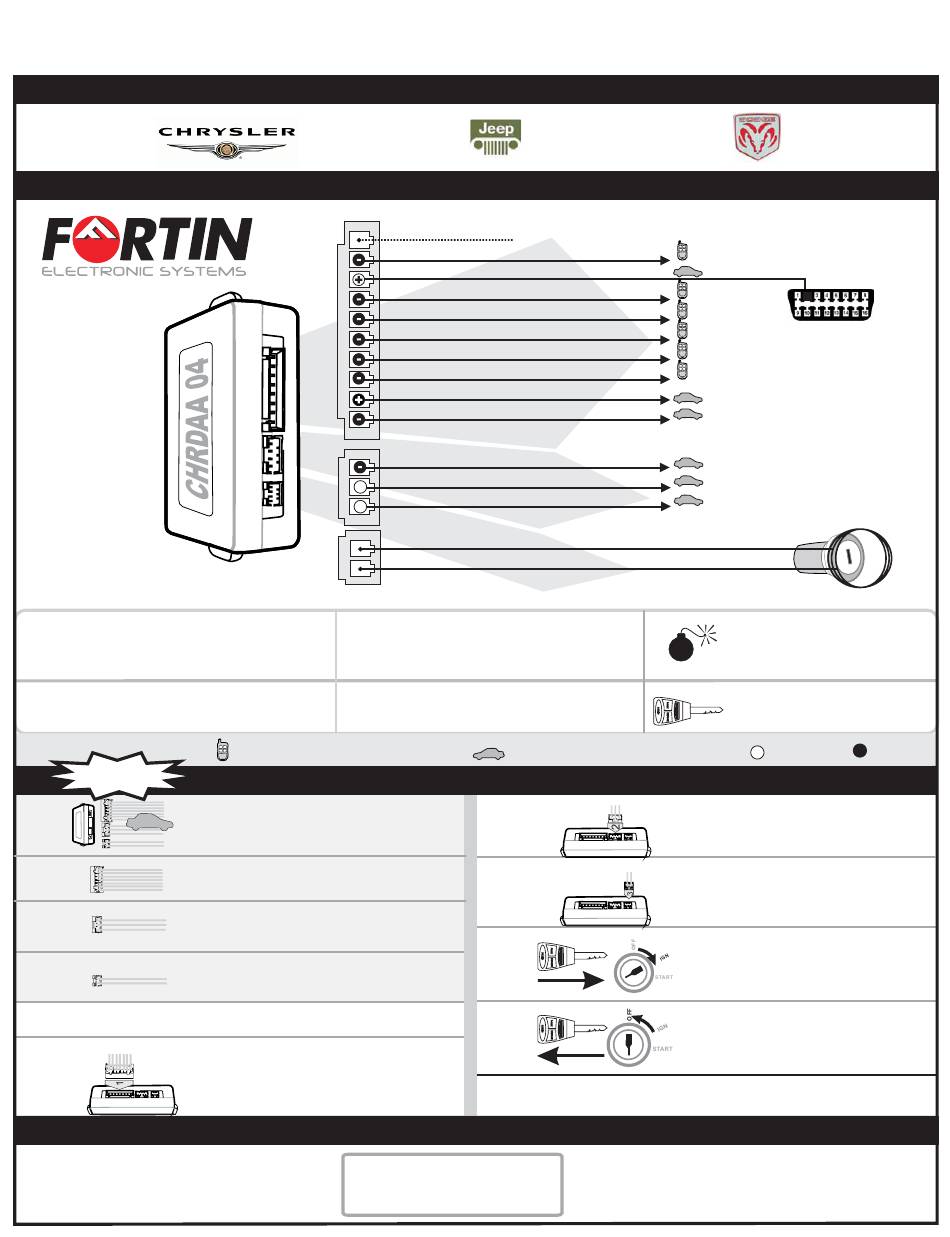

WIRING / CONNECTION GUIDE WIRING / CONNECTION GUIDE
2006 Vehicle: Not disarm by DATA Output.
Disarm by transponder only.
Note : You can program the module only one time.
START HERE
Make the connections of the CHRDAA 04:
1
1.a
Connector 1 (10 pin):
Make the connection on the CONNECTION GUIDE
section (above).
1.b Connector 2 (3 pin):
Make the connections associated with the vehicle in the
VEHICLE FIT GUIDE (P.4)
Connector 3 (2 pin):
1.c
Make 3 to 4 loose loops in front of the ignition
barrel.(Behind the plastic cover) (Secure the wire with tie-
wrap.)
PROGRAMMING : DATA PORTION
2.a
TECHNICAL SUPPORT / INFORMATION TECHNICAL SUPPORT / INFORMATION
Neither the manufacturer or distributor of this module is
responsible of damages of any kind indirectly or directly caused by
this module, except for the replacement of this module in case of
manufacturing defects. This module must be installed by qualified
technician. This instruction guide may change without notice. Visit
www.ifar.ca to get latest version.
~
~
WARNING :
with an unprogrammed CHRDAA 04 more than 4 times
or the vehicle may lock itself for several hours. After
each failed start, start the vehicle once with a valid key.
IMPORTANT :
can't be programmed or used on any other vehicle.
Connect wire to Remote-Starter/Alarm
INSTALLATION AND PROGRAMMING INSTRUCTIONS INSTALLATION AND PROGRAMMING INSTRUCTIONS
Connector 1:
Connect the connector 1.
Green
N.C.
Blue (-) While running
Orange/Black
Orange
1
Purple/White
Purple
Yellow/Black
Driver sliding door
Yellow Passenger sliding door
Red (+) 12 V Battery
Black
2
Liberty Door Pin
White
Pink/Black
Pink
3
3 to 4 loose loops in front of the key barrel
required (Behind the plastic cover)
Do not attempt to start the vehicle
Once the CHRDAA 04 is programmed, it
Connect wire to vehicle
2.b
2.c
3
4
Go to page 4 for transponder programming.
Technical support:
TEL: 514-255-HELP (4357)
FAX: 514-255-1367
Web: www.ifar.ca
INSTALLATION GUIDE
Made in Canada - V8.0.f - January 10, 2007
W e b s i t e : h t t p : / / w w w . i f a r . c a
Data
Unlock
Lock
Trunk
Ground
Analog 3
Analog 2
Each step must be completed in the
indicated delay, otherwise the CHRDAA
04 will not be programmed therefore it
is necessary to restart the procedure.
Two (2) functional keys required.
X2
Keep the keys separate while
programming.
Connector 2:
Connect the connector 2.
Connector 3:
Connect the connector 3.
Turn the key ON, wait a few seconds, the
horn or key buzzer will beep 3 times.
Turn the key OFF.
The DATA portion of the module is now
programmed.
Manufactured under US patent No.:
5,719,551 6,011,460 B1 6,243,004 B1
6,529,124 B2 6,696,927 B2 6,756,885 B1
Canadian Patent No.: 2,415,023 1,053,128
European Patent No.: 2,320,248
2
Diagnostic plug.
View from the
frontlocated below
dash.
OUTPUT INPUT
6,249,216 B1 6,275,147 B1
6,756,886 B2 6,771,167 B1
P.1
