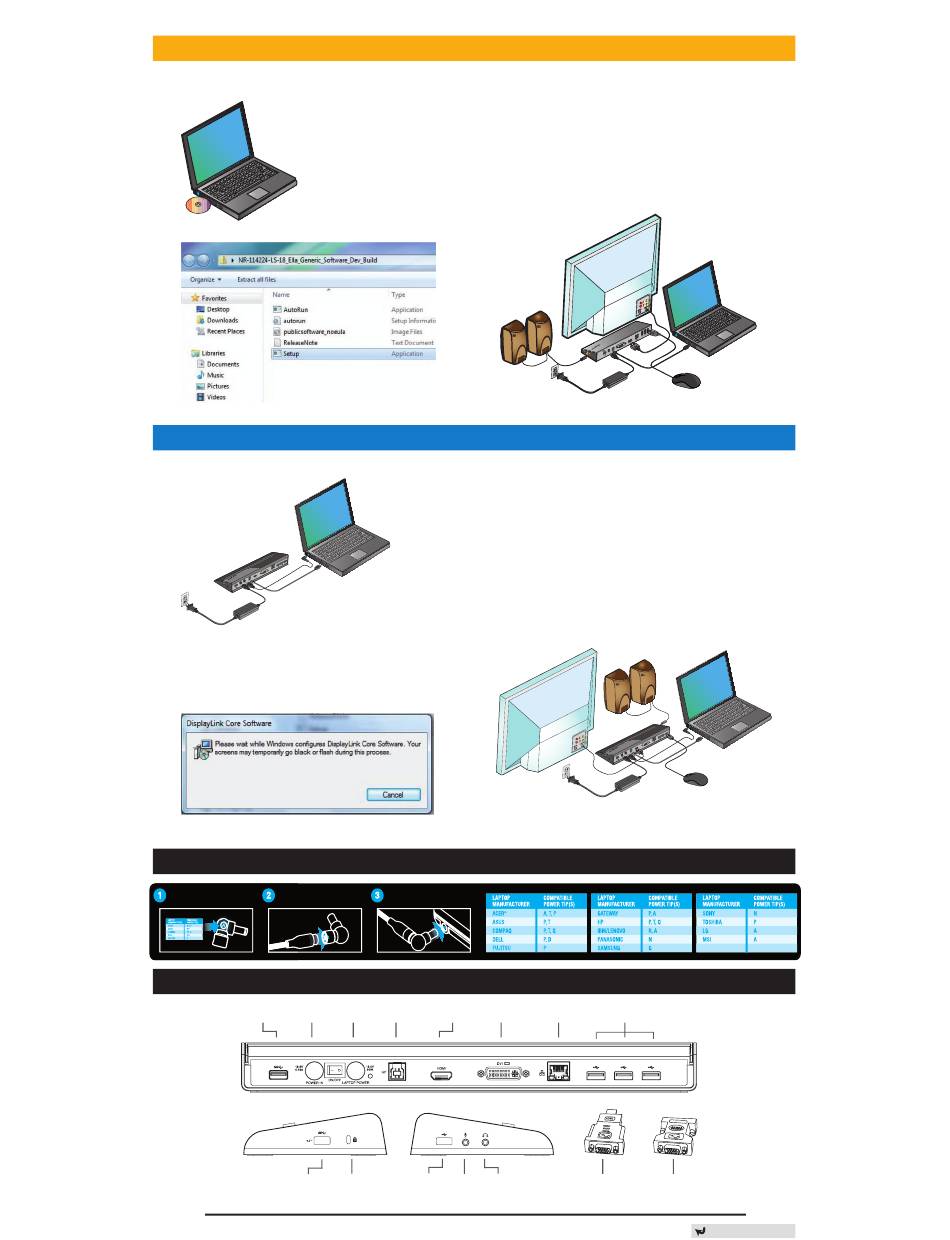

Windows
XP/Vista
®
NOTE: DO NOT CONNECT THE DOCKING STATION PRIOR TO INSTALLING THE DISPLAYLINK DRIVER.
1) Install the included Driver CD.
2) Double click on Setup.exe.
Windows
7 / Windows
®
1) Connect the Docking Station to your laptop.
2) Windows will start installing the DisplayLink Driver
automatically.
NOTE: If the driver installation does not automatically
start, disconnect the docking station from your laptop,
insert the Driver CD, and click on the Setup.exe file.
Power Setup
Locate the correct power tip
Connect to the power cord
(Test fit inlaptop if needed)
Docking Station Diagram
DC Power
USB 3.0 Port
DC Power IN
Out
USB 3.0 Port
Lock
w/BC 1.2 (1.5A)
Slot
Setup
®
3) Follow the on-screen instructions until the installation
is complete.
4) Connect the Docking Station and peripherals.
8 Setup
®
3) Follow the on-screen instructions until the installation
is complete.
4) Connect all peripheral devices.
Connect to your laptop
USB to Laptop
Gigabit
Port
HDMI
DVI-I
Ethernet
USB 2.0 Port
Audio
Audio
In
Out
4
USB 2.0 Ports
HDMI to DVI-D
DVI to VGA
Adapter
Adapter
