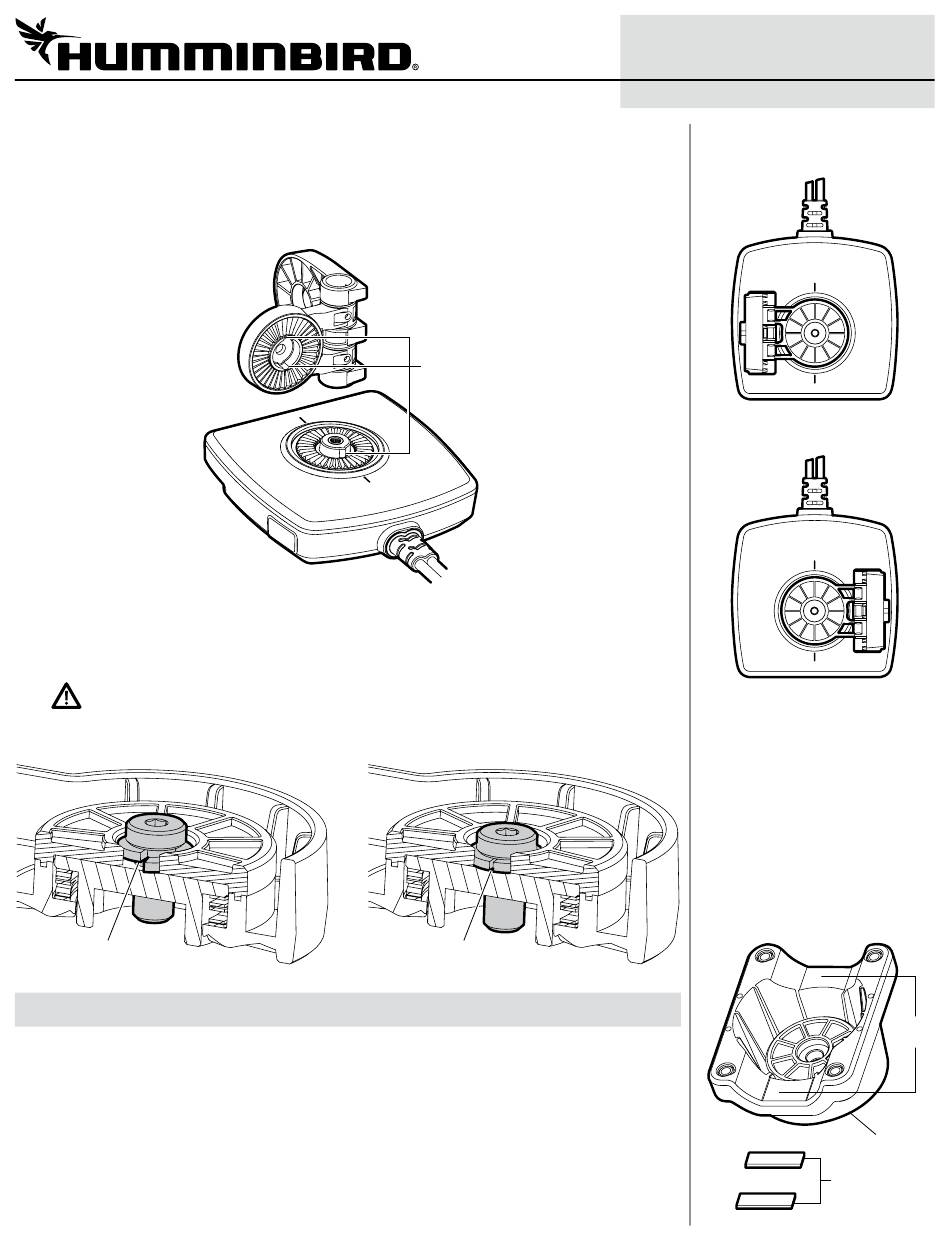

MEGA LIVE SHAFT MOUNT Installation Guide
4. Connect the Landscape Mode mount to the transducer according to your Recommended or
Optional configuration.
The ratchets are keyed. The ribs on the Landscape Mode mount ratchet should align with the
marks on your transducer.
Connecting the Landscape Mode Mount to the Transducer
5. Secure the Landscape Mode mount to the transducer with one of the included lock washers and
1/4-28 screws, using the provided 1/8" hex bit and a bit driver. Hand tighten the screw until the
lock washer is fully compressed (see the illustration Compressing the Lock Washer), and then
tighten an additional 1/4 turn. Hand tighten only!
WARNING! The screw and lock washer MUST be fully tightened. Failure to do so may result in
the transducer detaching from the Landscape Mode mount in the water.
loose lock washer
| Install the Shaft Mount
2
1. Fold the Landscape Mode mount back down using the release buttons.
2. For installation on an Ultrex or Fortrex trolling motor or on a MEGA Live Universal, secure the
included small rubber pads to the inside of the shaft mount as shown in the illustration Shaft
Mount Rubber Pad Placement. Remove the backing from the pads and press the adhesive sides
firmly into place against the shaft mount.
For installation on an Ultrex QUEST trolling motor, rubber pads are not needed. Proceed to
Step 3.
3. Align the keys on the shaft mount and the Landscape Mode mount to connect them.
The ratchets
are keyed.
Compressing the Lock Washer
fully compressed lock washer
2
532967-2_A
Positioning the Landscape
Mode Mount
Hinge on Left
Hinge on Right
Shaft Mount Rubber
Pad Placement
Center the
pads here.
shaft
mount
rubber
pads
