OPF-S/OPF-M/OPS-L

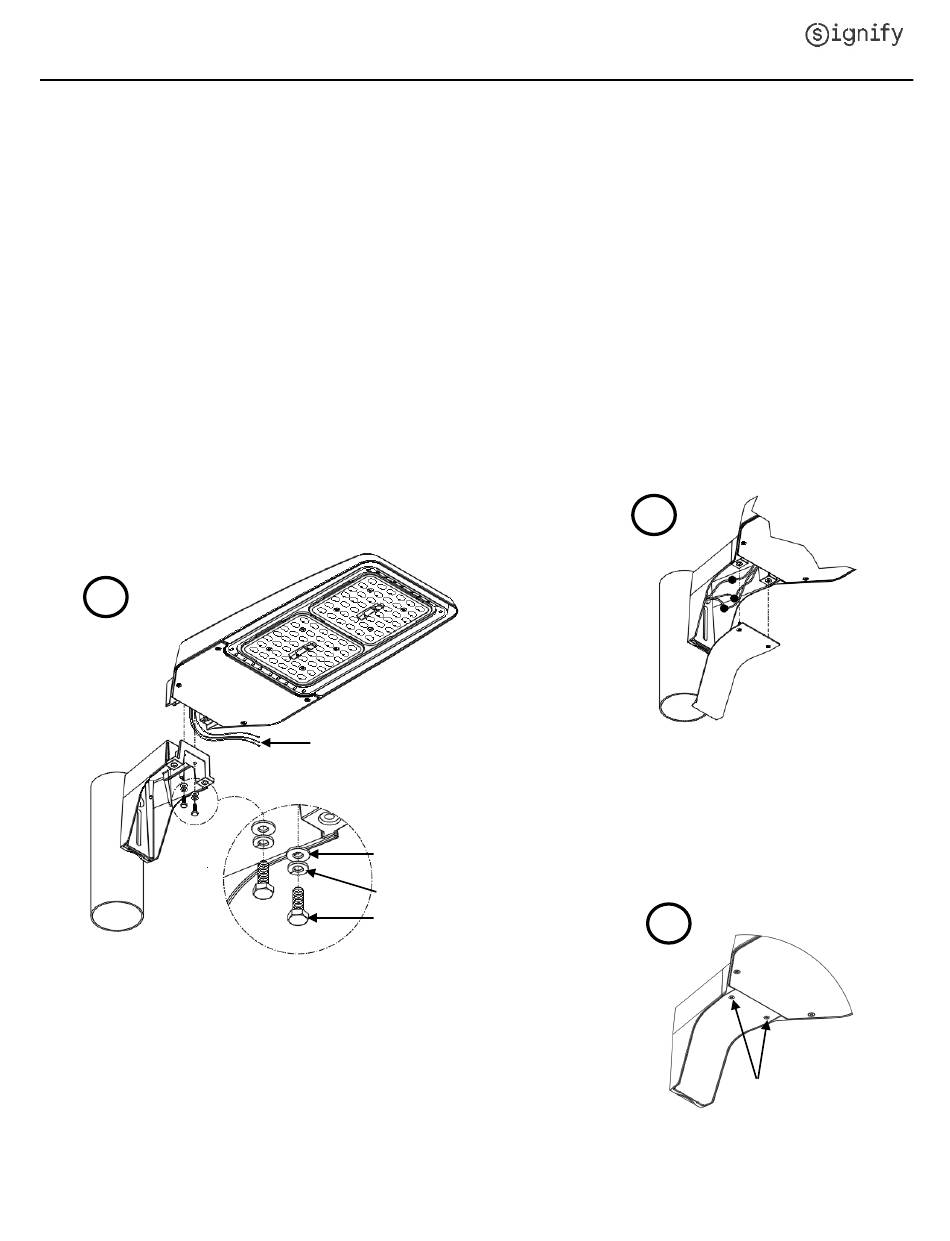

Installation with Standard arm: AR1
4.
To avoid pinching or crushing
Slide the fixture on the mounting arm. Tighten the mounting bolt
(2x)1/4''-20 UNC x 3/4'', split washer and flat washer. Torque:
Note: Once the torque is applied on both screws repeat the torque operation
until the torque is constant.
5.
Once luminaire is installed and hardware is properly torqued, make supply
wiring connections according to the appropriate wiring diagram.
Note:
* 0-10V AND OVERRIDE WIRES OPTIONAL
* WIRE NUTS SUPPLIED BY OTHERS
6.
Install the Arm cover using the #10-24 screws. Torque: 18in-lbs
4
page
www.gardcolighting.com
Installation Instructions
fold fixture wires towards the
Wires
Flat washer
Split washer
1/4-20 x 3/4'' bolt
front.
130in-lbs
442296100981 rev:c
5
6
10-24 screw
