Receiver Logic Board Replacement
Model 050DCJCWFRD
To prevent possible SERIOUS INJURY or DEATH:
• Disconnect ALL electric and battery power BEFORE performing ANY
service or maintenance.
To prevent damage to the receiver logic board, DO NOT touch printed
circuit board of replacement receiver logic board during installation.
ALWAYS wear protective gloves and eye protection when changing the
battery or working around the battery compartment.
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
NOTICE: This device complies with Part 15 of the FCC rules and Industry Canada's license-
exempt RSSs. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between
users/bystanders and device.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules and Industry Canada ICES standard. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Before you begin.
Your new myQ serial number is located on the
replacement label with your replacement logic board. You will need this new myQ
serial number to connect your operator to the network. You will also have a STEP
SAVER SETUP label that must be adhered to your end panel directly under the yellow
LEARN Button for future identification that your board has been updated, and a new
Product Label to be placed over the current Product Label.
SERIAL NUMBER / NUM. DE SÉRIE / NUM. DE SER IE
FCC ID:
IC: 2666A -
IFETEL Cert no.:
MAC ADDRESS / ADRESSE MAC / DIRECCIÓN MA C
CONTAINS / CONTENIR / CONTENER :
PART NO. / NUM. DE PIÈCE / NOM. DE PART: DATE / FECHA: FCC ID:
IC:

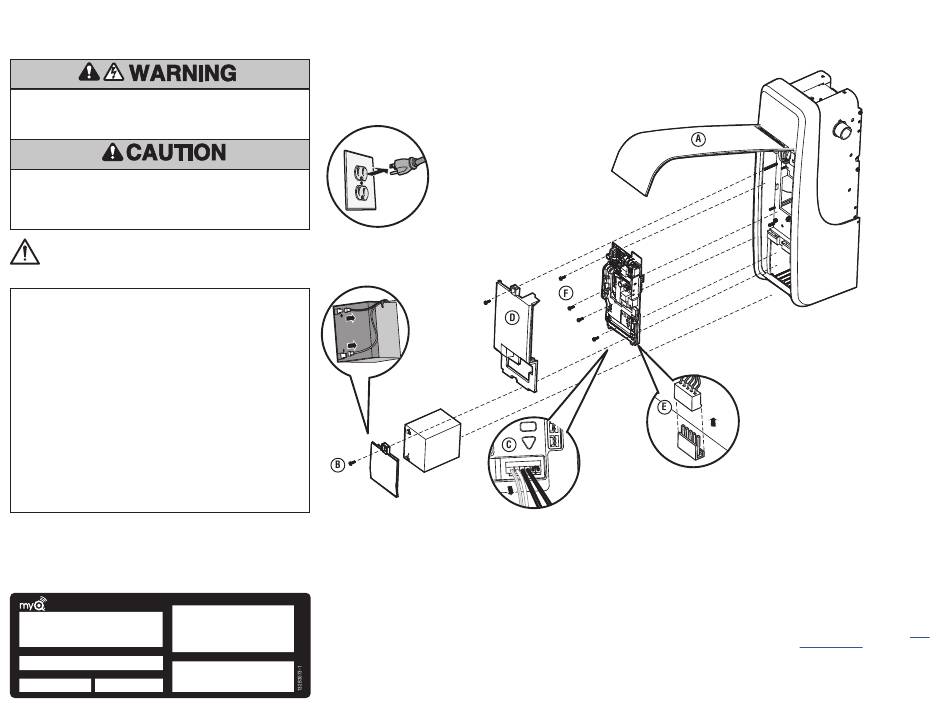

1.
Disconnect power.
3.
Remove the battery cover. Disconnect
the battery (optional accessory).
Remove the battery and set aside.
4.
®
5.
2.
6.
Unplug the wire harnesses from the
receiver logic board (E).
7.
Remove the four screws securing
Label wires for reinstallation.
the receiver logic board and set
Disconnect the wires from the
aside. Remove and discard the
quick connect terminals (C).
receiver logic board (F).
Remove the receiver logic board
cover (D).
1
Open the front panel (A).
8.
Install the receiver logic board and
connect the wire harnesses. Ensure the
wire harnesses are connected properly.
Route the antenna through the channel
in the cover. Install receiver logic board
cover.
9.
Adhere the STEP SAVER SETUP label on
the end panel directly below the yellow
Learn Button. Adhere the new Product
Label over the existing product label.
10.
Adhere the new myQ serial number label
over the original label on the logic board
cover.
11.
Reconnect the wires to the quick
connect terminals (C).
12.
Install the battery (optional accessory)
and connect the battery connectors.
Install the battery cover (B).
13.
Reconnect the power.
14.
Reprogram the travel and test the safety
reversal system (see pages 2 and 3).
15.
Program any accessories you may have
such as remote controls, keyless entries
or myQ Remote LED Lights (see page
4).
16.
Use the myQ app to add the new myQ
serial number to your account or Login
to your myQ Business account
myqbusiness.com) and remove the
original myQ serial number for this
operator. Then, follow the steps to
program the DDO8900W operator in
order to relearn it to your myQ Business
account.
(www.
