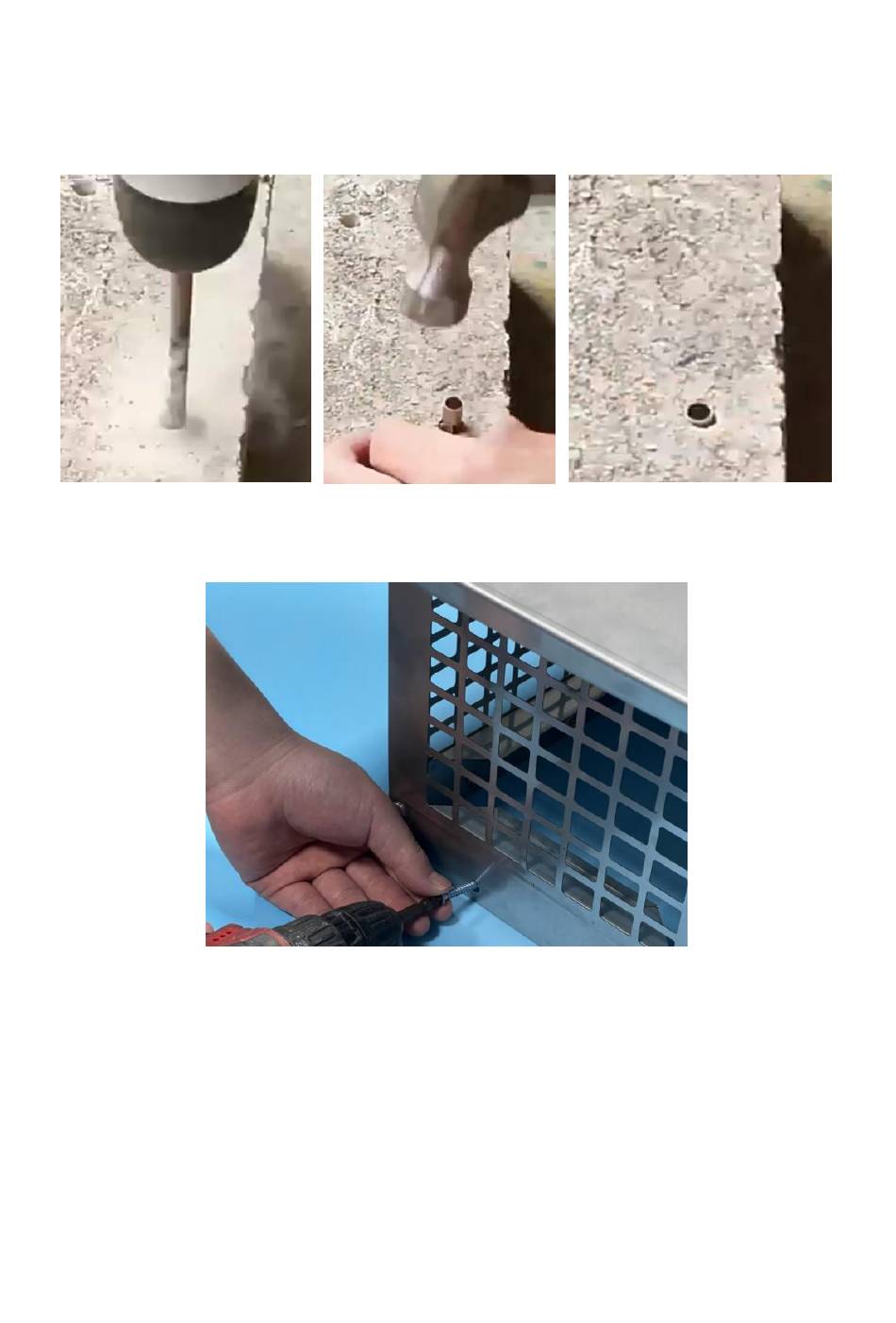

D.For horizontal installation, drill 8 Φ8*40 holes on the chimney in
horizontal direction, use a hammer to press 8 expansion sleeves into these
8 holes, and then firmly install the chimney cap to the chimney with 8
expansion screws.
E.For vertical installation, mount the 4 bottom brackets to the 4 grid pieces
with screw M5*10 and nut M5, drill 8 Φ8*40 holes on the chimney in
vertical direction, use a hammer to press 8 expansion sleeves into these 8
holes, and then firmly install the chimney cap to the chimney with 8
expansion screws.
Figure 5
Figure 6
- 5 -
