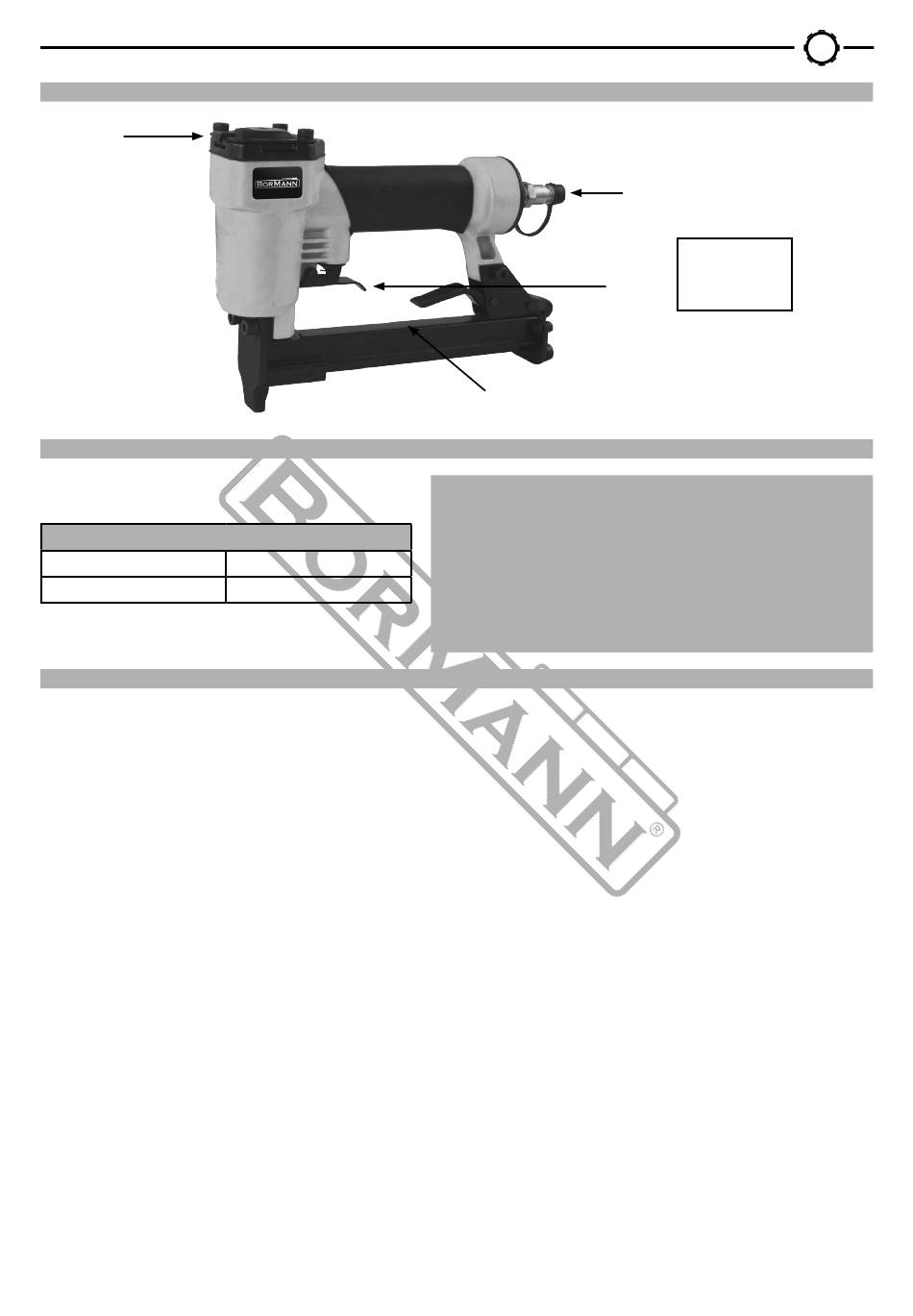

DESCRIPTION OF MAIN PARTS (FIG. 2)
3
SPECIFICATIONS
Technical Data
Model
Compatible staples
OPERATION
Connection to the compressed air system
• Ensure that the pressure supplied by the compressed air system does not exceed the maximum allowable pressure of the tool.
• Set the air pressure initially to the lower value of the recommended allowable pressure.
• Empty the magazine to prevent a staple from being ejected at the next stage of work in the event that internal parts of the tool are not correctly installed
following maintenance and repair work or transportation.
• Connect the tool to the compressed air supply using a suitable pressure hose equipped with quick-action connectors.
• Check for proper functioning by applying the muzzle of the tool to a piece of wood or wooden material and pressing the trigger once or twice.
Filling the magazine
• Fill the magazine only with staples compatible with the tool.
• When filling the magazine, hold the tool so that the muzzle is not pointing towards the operator or any other person or animals.
Proper use
• Having checked that the tool is functioning correctly, apply the tool to a workpiece and press the trigger.
• Check whether the staple has been driven into the workpiece in accordance with the requirements.
- If the staple is protruding, increase the air pressure in increments of 0.5 bar, checking the result after each new adjustment.
- If the staple is driven into an excessive depth, reduce the air pressure in increments of 0.5 bar until the result is satisfactory.
• You should endeavor in any event to work with the lowest possible air pressure in order to conserve energy, produce less noise and reduce the rate of wear
of the tool.
• Avoid pressing the trigger if the magazine is empty.
• Any defective or improperly functioning tool must immediately be disconnected from the compressed air supply and sent to the manufacturer or an
authorized dealer of the manufacturer for inspection and repair.
• Always disconnect the tool from the compressed air supply and empty the magazine before taking a break and after having stopped work with the tool.
• The compressed air connectors of the tool and the hoses should be protected against contamination, the ingress of coarse dust chips, sand etc. Such
contamination will result in leaks and damage to the tool and the couplings.
Fig. 2
BAT6130
Staple type 80 (8-16 mm)
WWW.NIKOLAOUTOOLS.COM
1
* The manufacturer reserves the right to make minor changes to product design and technical specifications
without prior notice unless these changes significantly affect the performance and safety of the products. The
parts described / illustrated in the pages of the manual that you hold in your hands may also concern other
models of the manufacturer's product line with similar features and may not be included in the product you
just acquired.
* To ensure the safety and reliability of the product and the warranty validity, all repair, inspection, repair or
replacement work, including maintenance and special adjustments, must only be carried out by technicians of
the authorized service department of the manufacturer.
* Always use the product with the supplied equipment. Operation of the product with non-provided
equipment may cause malfunctions or even serious injury or death. The manufacturer and the importer shall
not be liable for injuries and damages resulting from the use of non-conforming equipment.
4
1. Magazine
2. Trigger
3. Exhaust vent
2
4. Air quick coupler
E N
