ENGLISH
B-Touch AV1001/40 and AV1001/41 monitors have been designed to be used only in B-Twin systems.

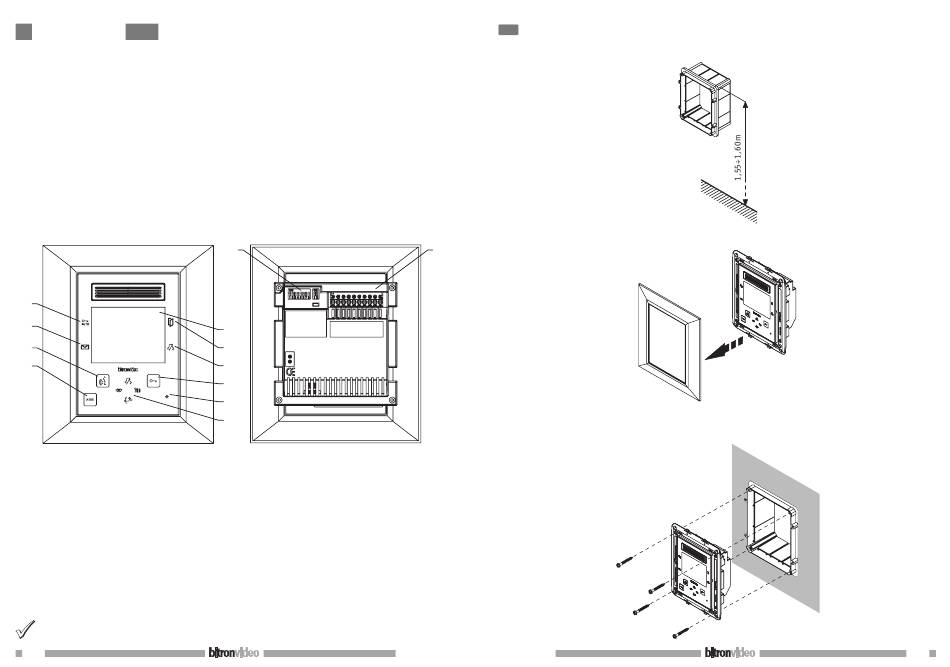

COMPONENTS DESCRIPTION AND CHARACTERISTICS
4
5
7
10
1 - Display
2 - Microphone
3 - Indication of "mute function" active (green led)
4 - Indication of automatic door lock release active (green led)
5 - Indication of present messages (green led)
6 - Indication of open door or absence active (red led)
7 - Button used to activate/deactivate audio
8 - Door lock release button
9 - Buttons for navigation, auto-on, call to switchboard, gate opening, ringer mute.
10 - Menu button
11 - Confi guration dip switch:
- 2 to defi ne the number of the apartment station inside the apartment
- 8 to defi ne the number of the apartment in the column
12 - Terminal pins for connection to the system
B-Touch video door phone is provided with an embedded device for hard of hearing.
14
11
1
6
3
8
2
9
DS901001-005
1 INSTALLATION
Fix the fl ush mounting box at the height shown in the following fi gure.
Remove the clip-on frame mounted on the support.
12
Perform connections and dip-switch settings.
After the programming procedure has been completed, fi x the video door phone to the fl ush mounting box
with the 4 provided screws.
