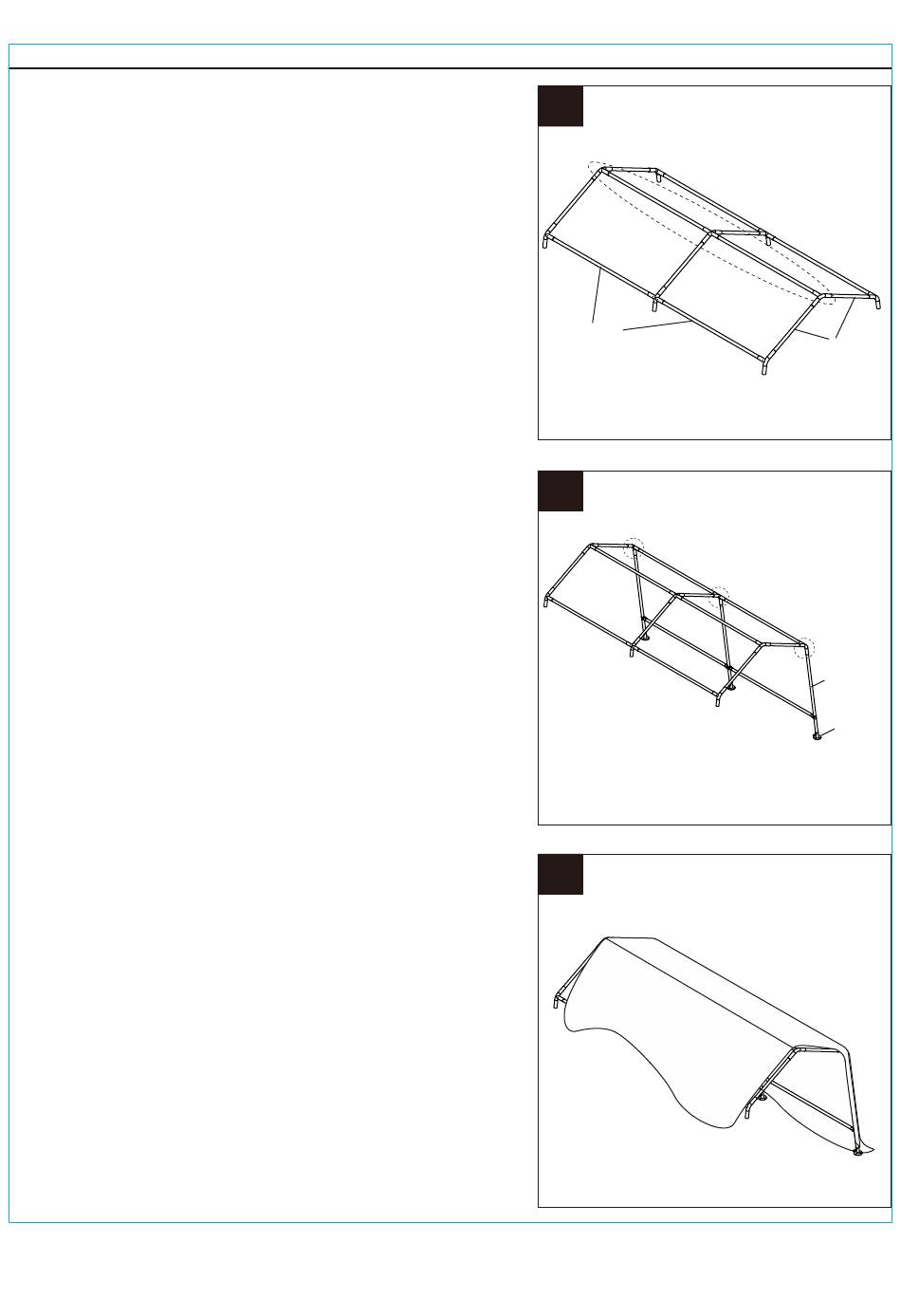

ASSEMBLY INSTRUCTIONS
1. Start the assembly with the top frame. The 36-inch
pipes are used for the roof rafters and the 69-inch
pipes form the frame length. Start the assembly with
the centre peak.
2. Once the roof frame is assembled, insert the legs on
one side using the 69-inch pipes with the foot pads
installed.
3. With the top frame laying over on one side and legs
inserted on the other side, drape the one-piece cover
with side and rear walls over the frame. Make sure the
open end is opened in the desired direction. Pull one
side down over the frame with the legs inserted. The
rear can also be partially pulled over the frame. Next,
insert the legs on the opposite side and pull on the
remainder of the cover.
1
69 in ch p ipe
-
2
3
Page 6
sid e
fron t
36 in ch pi pe
-
6 9 i nch pip e
-
Foot p a d
