Charging Status

Disconnected
Status
LED

Pre-Installation

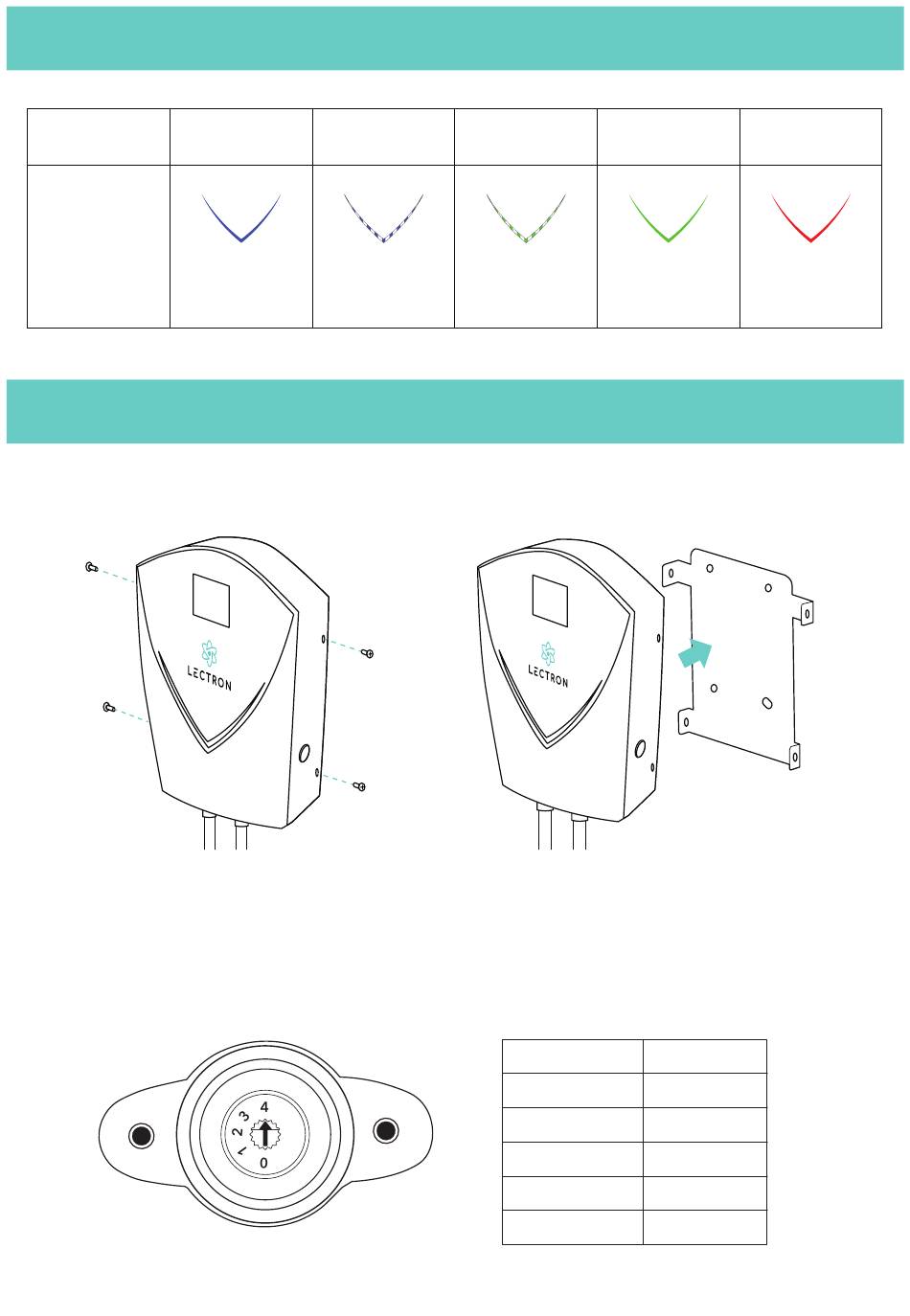

Remove the short screws and lift up on the mounting plate.
By default, the V-BOX has been set to 4 (40A). To adjust the amps, unscrew and
remove the plastic cover from the back of the V-BOX, and turn the dial on the
inside to your preferred setting.
Connected
Solid Rolling
blue blue
Charge
Charging
Complete
Rolling Solid
green green
Dial Position
0
1
2
3
4
Fault
Solid
red
Current (A)
16 A
16 A
24 A
32 A
40 A
