Redarc 30A MIDI Fuse Kit Guide D'installation page 2

EN ENGLISH

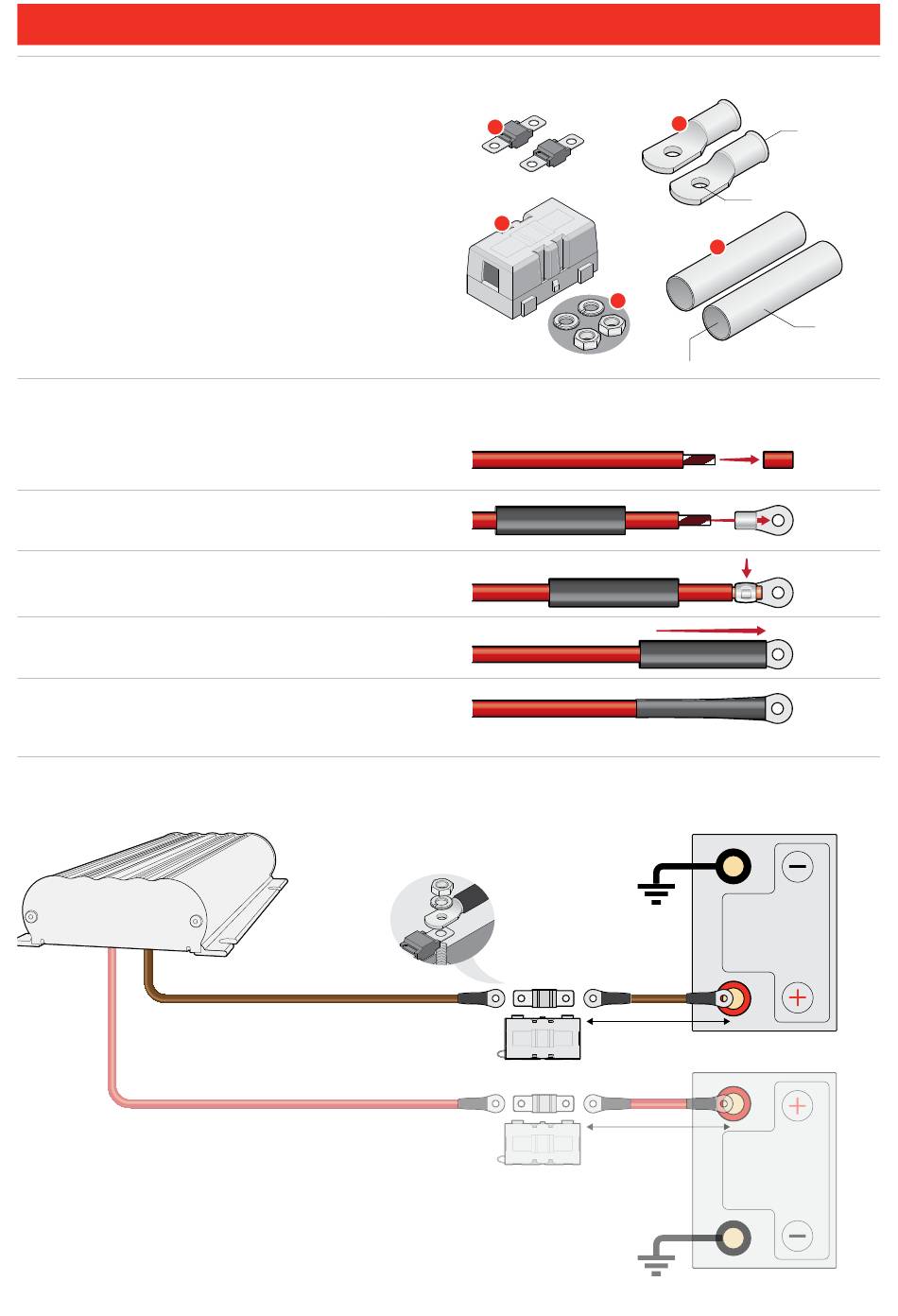

30 A MIDI FUSE KIT
The FK30 is designed to provide for a simple, neat fuse installation for dual
battery systems. The FK30 is perfect for the BCDC1212T auxiliary battery
output connection.
No. Part
1 30 A MIDI Fuse (one spare)
2
Fuse Holder
3 Nut and Spring Washer to suit Fuse Holder
4 Lug*
5 Heatshrink
*The Lugs provided are intended for a 10 mm² cable. If using a smaller cable
gauge, insert with conductor foldback; if using larger cable gauge, source
a larger lug.
LUG AND HEATSHRINK
Strip the end of the cable back enough to ensure the insulation
does not enter the barrel of the Lug when fully inserted.
Slide the Heatshrink over the cable then insert the stripped wires
into the barrel of the Lug.
Crimp the Lug using the correct crimping tool.
Slide the Heatshrink to partially cover the Lug, leaving the Lug
tongue exposed.
Shrink the Heatshrink.
BCDC1212T INSTALLATION
Auxiliary battery output connection.
1
Quantity
2
1
2
2
2
2
30 A Fuse
(and holder)
23 A Fuse
(and holder)
4
10mm²
5mm
5
3
12mm
Auxiliary
Battery
< 150 mm (6")
< 150 mm (6")
Start
Battery
40mm
