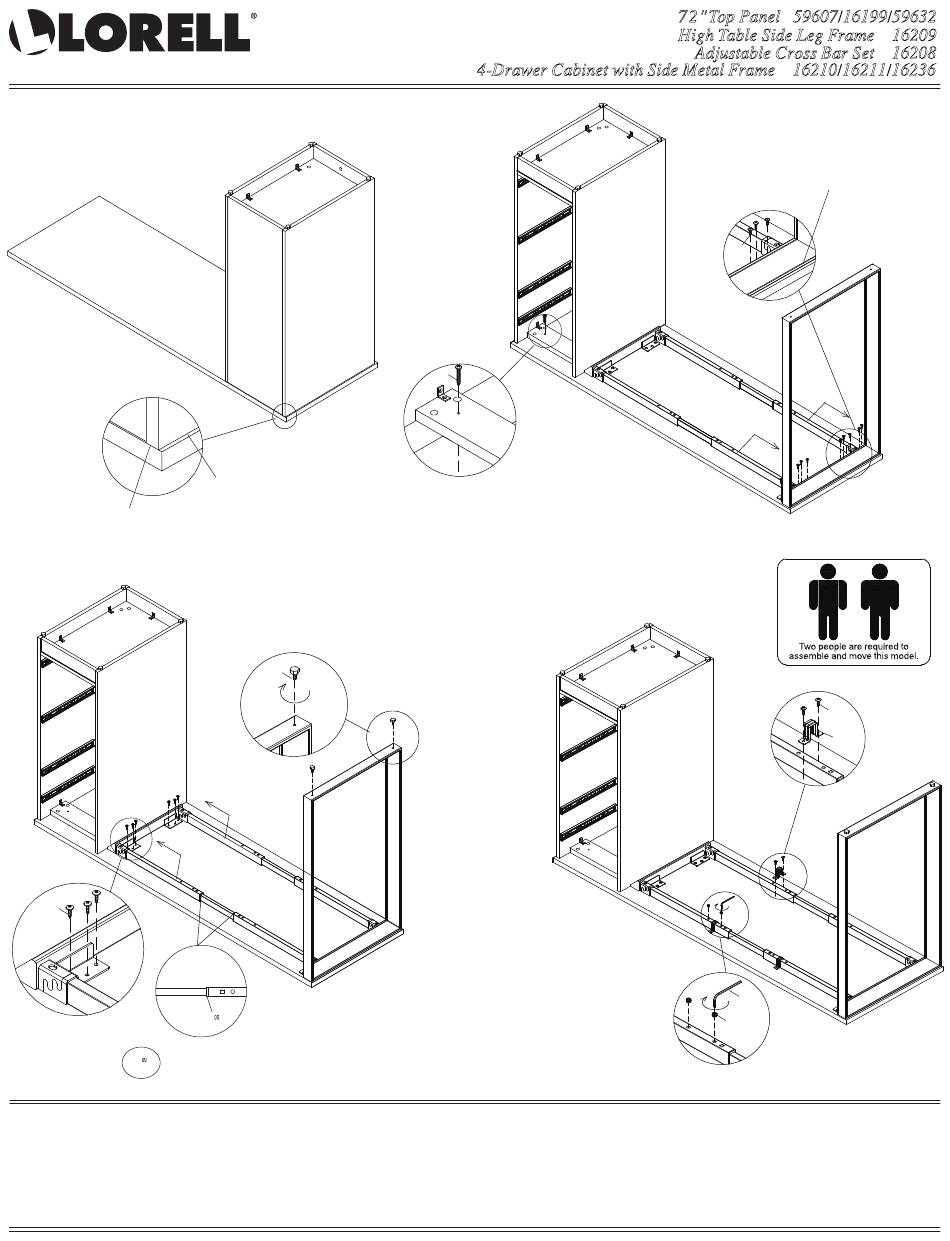

Assembly Instructions
STEP 8
Align
STEP 9
k
C
k
j
Move 72"F black mark on the inner bar to align ourter bar edge
IMPORTANT NOTE:
• Place all laminated parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
• Check to make sure that you have all parts and hardware.
• Remove all wrapping materials, including staples and packaging straps before you start to assemble.
• Do not tighten all screws/bolts until pieces are completely assembled.
• Keep all hardware parts out of children's reach.
• It is recommended for 2 persons to complete this assembly.
Suggest to keep the
distance of 5mm from metal
frame edge to panel edge
If the frame doesn't align the edge of the
cabinet, usually need one man make the
frame at the correct position, another man
tighten 6 pcs screw "C".
B
i
i
72"F

g
R
g
Only assemble high table side leg
frame using 12 pcs screw "C".
