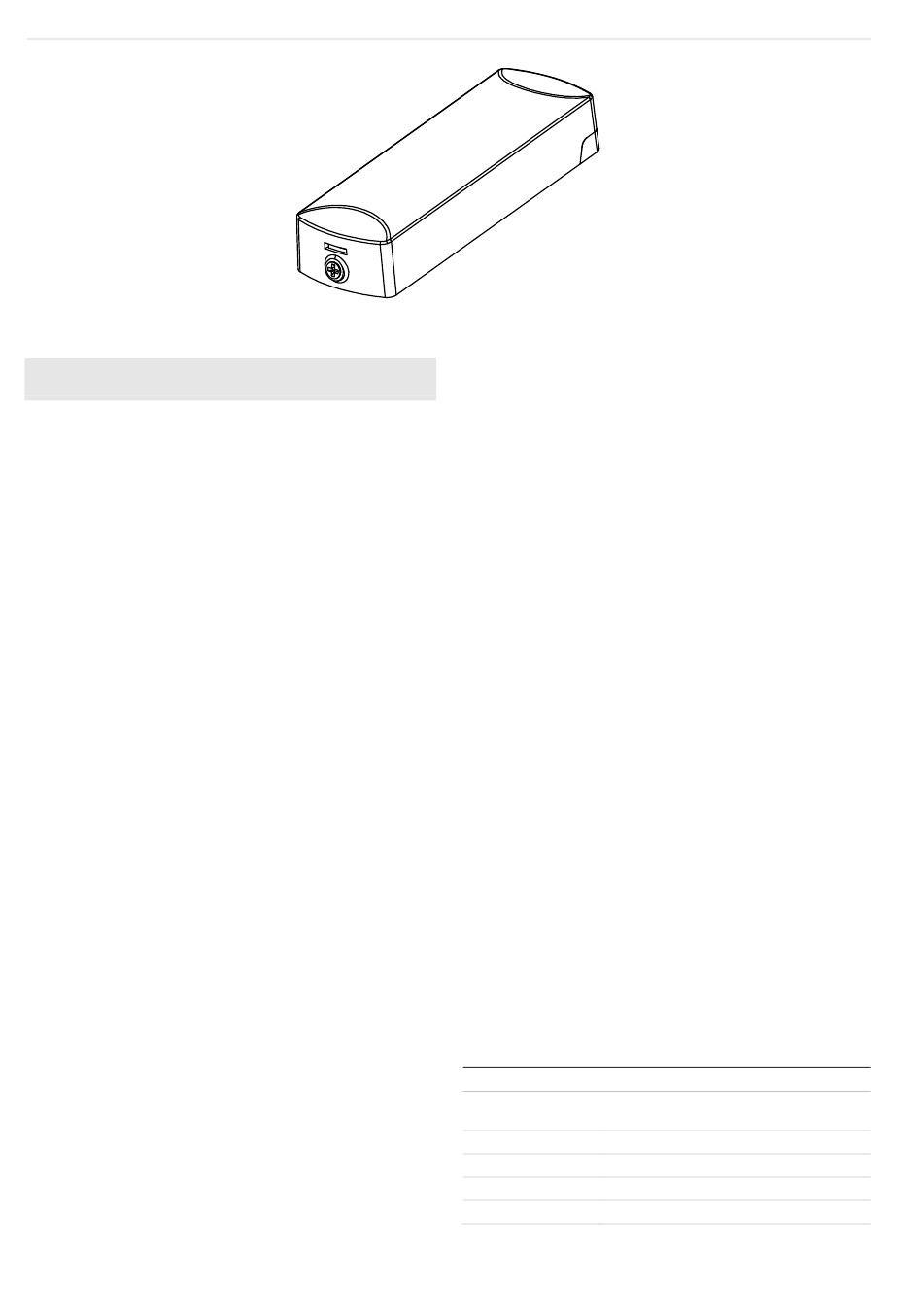

EN: Installation Sheet
Enrolling
To enroll the sensor, set your panel into program mode. Then
go to the Learn Sensors menu. Refer to your specific alarm
panel manual for details on these menus. Insert the battery.
Close the case (you will hear a click when the case latches are
engaging and disengaging). Then select the appropriate
sensor group and number.
Mounting
One side of the sensor is marked with 3 lines; this indicates the
location of the reed switch. The magnet should be mounted
facing this side of the sensor. Please check the table about
distances to define the maximum distance in each direction.
Included with this device is double sided tape for the contact
and the magnet. Choose a suitable location for the sensor by
following the procedure in the section "Testing the Sensor"
ensuring desired signal strength is achieved. For reliable
bonding, ensure the surface is clean and dry. Apply the tape to
the sensor and then to the desired location. Apply firm
pressure for several seconds.
Note:
When mounting with double sided tape, ensure
temperatures are above 10°C and will remain above 10°C for
at least 24 hours to ensure proper bond. After 24 hours, the
bond will hold at lower temperatures.
You can also use the contact back plate that shall be screwed
to the mounting surface. Any removal from the surface will
activate the back tamper.
Where possible, install sensors within 30 m of the panel. While
a transmitter may have an open-air range of 150 m or more,
the environment at the installation site may have a significant
effect on operational range. Changing a sensor location may
improve wireless communication.
Interchangeable covers
The contact comes from the factory assembled with a white
cover, but included are optional brown covers. To change the
cover, simply slide the front cover to disengage it from the
sensor, and then remove. Replace with the brown cover
ensuring the Top (as marked on the inside of the cover) points
away from the battery. You should hear a click when the cover
2 / 15
All manuals and user guides at all-guides.com
engages and disengages from the sensor. You do not need to
replace the back plastic because once mounted the back is not
visible. To replace the magnet cover use a 0.8 x 4 mm flat
screwdriver to gently pry the white cover off and snap the
brown cover in place.
Testing the Sensor (Test Weekly)
The sensor test verifies proper communication between the
sensor and the panel/receiver. To test the sensor, refer to the
specific panel/receiver documentation and do the following:
1.
2.
3.
4.
Installing/Replacing the Battery
When the battery is low a signal will be sent to the control
panel. To install/replace the battery:
1.
2.
3.
Note:
the control panel.
Specifications
Compatibility
Wireless operating
frequency
Power output
Battery
Battery Life
Magnet Gap
Put the panel/receiver into sensor test mode.
Open the door/window the sensor is protecting. The
sensor transmits a signal.
Listen for siren beeps to determine the appropriate
response.
Exit sensor test mode.
Slide the top cover to disengage it from the sensor, then
remove to reveal the battery.
Install/replace with a CR2032 battery ensuring the + side
of the battery faces towards you.
Re-attach the cover. Ensure the Top (as marked on the
inside of the cover) points away from the battery. You
should hear a click when the cover engages properly.
Removing the cover will trigger a zone tamper signal to
Interlogix LoNa transceivers (e.g. ZeroWire)
433.65 MHz
-2 dBm EIRP
3 V lithium CR2032
5-8 years
15.5 mm maximum
P/N 422-5829 • REV D • ISS 07SEP18
