Pan
design Ludovica e Roberto Palomba
Istruzioni per l'installazione della rubinetteria
I
Instructions for the installation of the faucets
GB
Instructions pour l'installation de la robinetterie
F
Montageanleitungen zur installation der armaturen
D
Instrucciones para la instalacion de la griferia
E
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
RU
Instrukcje instalacji armatury
PL
All manuals and user guides at all-guides.com
Publicité
Manuels Connexes pour ZUCCHETTI Pan ZP6211
Sommaire des Matières pour ZUCCHETTI Pan ZP6211

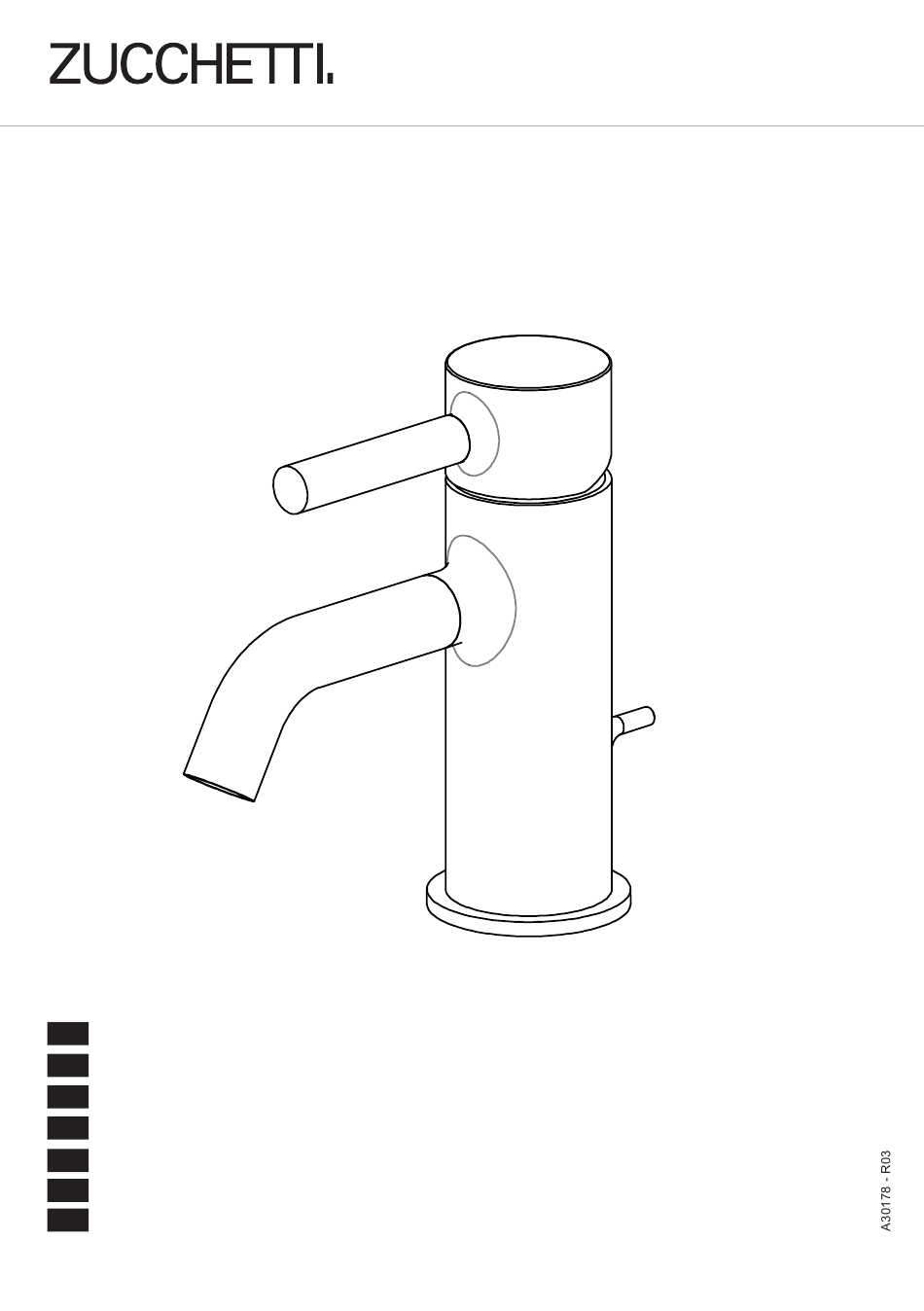

- Page 1 All manuals and user guides at all-guides.com design Ludovica e Roberto Palomba Istruzioni per l’installazione della rubinetteria Instructions for the installation of the faucets Instructions pour l’installation de la robinetterie Montageanleitungen zur installation der armaturen Instrucciones para la instalacion de la griferia ИНСТРУКЦИИ...
- Page 2 All manuals and user guides at all-guides.com Index Pan collection ZP6211-ZP6242 ZP6332 ZP6247-ZP6592 ZP6218-ZP6219 ZP6588-ZP6587 ZP6585-ZP6586 ZP6348 ZP6123-ZP6030 ZP6124-ZP6032 Z92183 ZP6081 ZP6640...
- Page 3 All manuals and user guides at all-guides.com ZP6181 ZP6068 ZP6502 ZP6622 ZP6415 ZP6054 ZP6122 ZP6126 ZP6127 ZP6121...
- Page 4 Installazione - Installation All manuals and user guides at all-guides.com ZP6211-ZP6242-ZP6332-ZP6247-ZP6592-ZP6218-ZP6219-ZP6588-ZP6587-ZP6585-ZP6586-ZP6348 Utensili necessari - Necessary tools CH.12 ZP6218 ZP6219 ZP6585 ZP6586...
- Page 5 All manuals and user guides at all-guides.com FORO/HOLE Ø 35 CH.12...
- Page 6 All manuals and user guides at all-guides.com Installazione - Installation ZP6123-ZP6030-ZP6124-ZP6032-Z92183 Utensili necessari - Necessary tools CH.8 TEFLON CH.2 CH.3 NON TAGLIARE DON’T CUT...
- Page 7 All manuals and user guides at all-guides.com CH.8...
- Page 8 All manuals and user guides at all-guides.com CH.2 CH.3...
- Page 9 All manuals and user guides at all-guides.com Installazione - Installation ZP6081-ZP6640 Utensili necessari - Necessary tools CH.8 TEFLON CH.2 CH.3 NON TAGLIARE DON’T CUT...
- Page 10 All manuals and user guides at all-guides.com CH.8...
- Page 11 All manuals and user guides at all-guides.com CH.3 CH.2...
- Page 12 All manuals and user guides at all-guides.com Installazione - Installation ZP6181-ZP6068 Utensili necessari - Necessary tools CH. 2,5 TEFLON CH. 3 0 - 4 mm...
- Page 13 All manuals and user guides at all-guides.com FRENA-FILETTI THREAD-LOCKER TEFLON CH. 3 CH.2,5...
- Page 14 Installazione - Installation All manuals and user guides at all-guides.com ZP6502 Utensili necessari - Necessary tools CH.6 CH.14 Ø 50 Ø 33/35 Ø 33/35 Ø 33/35 DEVIATORE DIVERTER 100 100 100 FILETTO SINISTRO LEFT THREAD TAPPO / PLUG...
- Page 15 All manuals and user guides at all-guides.com CH.14 CH.6...
- Page 16 All manuals and user guides at all-guides.com...
- Page 17 All manuals and user guides at all-guides.com WATER INLET...
- Page 18 Installazione - Installation All manuals and user guides at all-guides.com ZP6622 Utensili necessari - Necessary tools CH.2,5 CH.5 CH.13 CH.4 CH.5 CH.13 R99676 NOT INCLUDED CH.13...
- Page 19 All manuals and user guides at all-guides.com CH.4 CH.5 CH.4...
- Page 20 All manuals and user guides at all-guides.com CH.13 CH. 2,5...
- Page 21 All manuals and user guides at all-guides.com...
- Page 22 All manuals and user guides at all-guides.com Installazione - Installation ZP6415 Utensili necessari - Necessary tools CH.4 CH.2,5 NON TAGLIARE DON’T CUT...
- Page 23 All manuals and user guides at all-guides.com CH.4 CH.2,5...
- Page 24 All manuals and user guides at all-guides.com Installazione - Installation ZP6054 Utensili necessari - Necessary tools CH.2,5 CH.4 NON TAGLIARE DON’T CUT...
- Page 25 All manuals and user guides at all-guides.com CH.4 CH.2,5...
- Page 26 All manuals and user guides at all-guides.com CH.2 CH.2...
- Page 27 All manuals and user guides at all-guides.com Installazione - Installation ZP6121-ZP6122- ZP6126-ZP6127 Utensili necessari - Necessary tools CH. 3 CH. 2 NON TAGLIARE DON’T CUT ONLY FOR FINISHES/ SOLO PER FINITURE: .W-.N-.P CH. 1,5 CH. 3...
- Page 28 All manuals and user guides at all-guides.com Sostituzione cartuccia - Cartridge replacement ZP6211-ZP6242-ZP6332-ZP6247-ZP6592-ZP6218-ZP6219-ZP6588-ZP6587-ZP6585-ZP6586-ZP6348 CH.3 CH.29 Coppia di serraggio Tightening torque 12 Nm...
- Page 29 All manuals and user guides at all-guides.com Sostituzione cartuccia - Cartridge replacement ZP6121-ZP6122- ZP6126-ZP6127 CH.3 CH.29 Coppia di serraggio Tightening torque 12 Nm...
