• Wheel Diameter check
Speed position displays Wd, The
measurements are in inches. A wrong wheel
diameter can lead to speed anomalies. After
this setting, briefly press (< 0.3 seconds) to
enter the setting interface of speed limit.

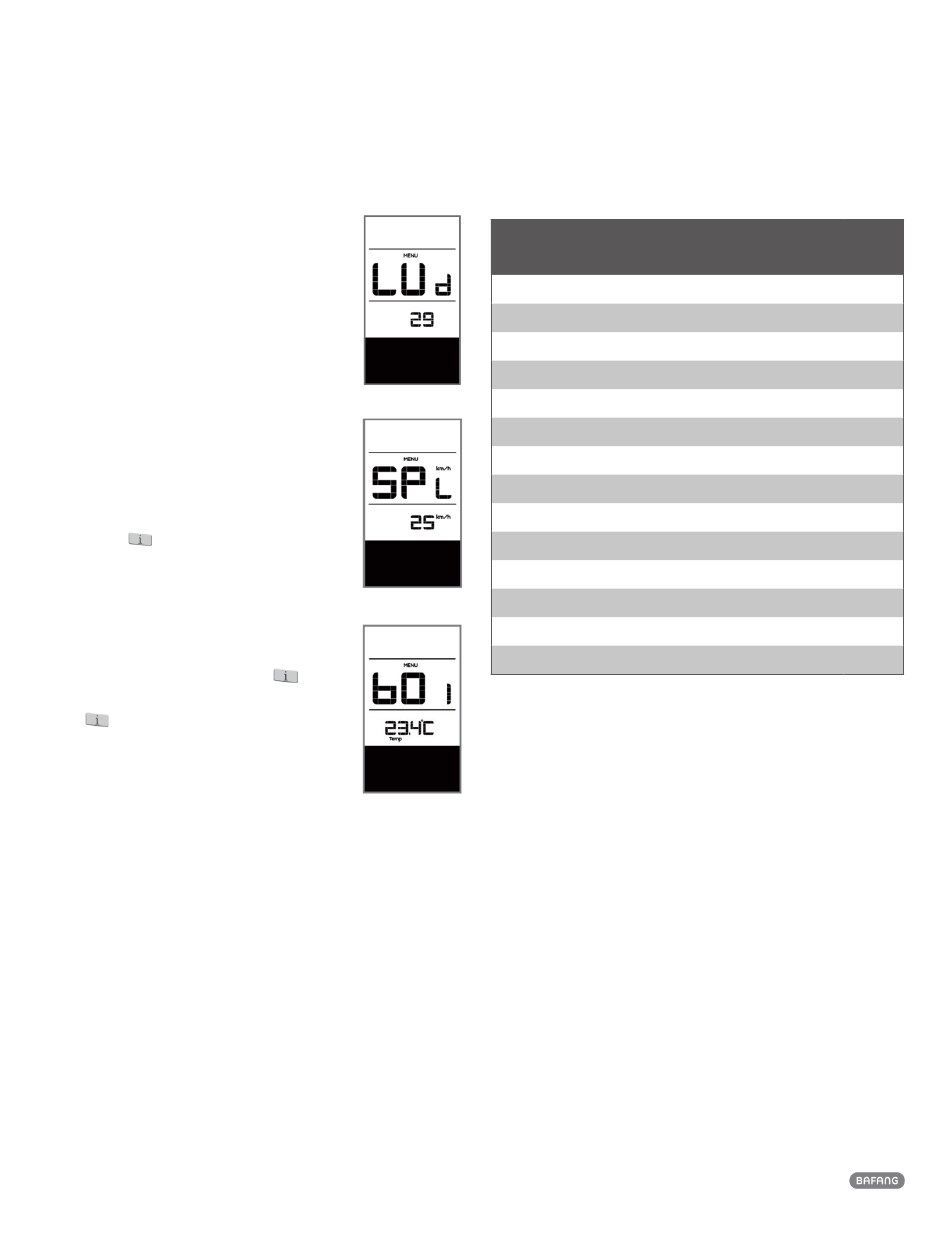

• Speed Limit Setting
When the speed field displays SPL, the
distance field displays the value of the
speed limit. Minimum speed limit is 12km/h,
maximum speed limit is 60km/h. After setting,
Briefly Press (< 0.3 seconds) to enter the
menu of battery communication.
• Battery Communication
The speed field displays b01 and the distance
field displays the speed limit. Press
seconds) to cycle backward. After this setting,
press (< 0.3 seconds) to enter into the
interface of memory for error code.
1) Only when communication has been
established between the battery and the
controller the following information will be
displayed, otherwise the display will only show
"- - - -".
12
(< 0.3
The speed
field displays
b01 Current temperature
b04
b06 Average current
b07 Remaining capacity
b08
b09 Relative state of charge
b10 Absolute state of charge
b11 Charge/ discharge cycle
b12 Longest period without charge
b13 Period since last charge
d00
d01 Voltage of cell 1
d02 Voltage of cell 2
dn Voltage of cell n
Definition Unit
°C
Total voltage
Ah
Full capacity Ah
Cell quantity
DISPLAY MANUAL DP C10.UART
V
A
h
h
V
V
V
